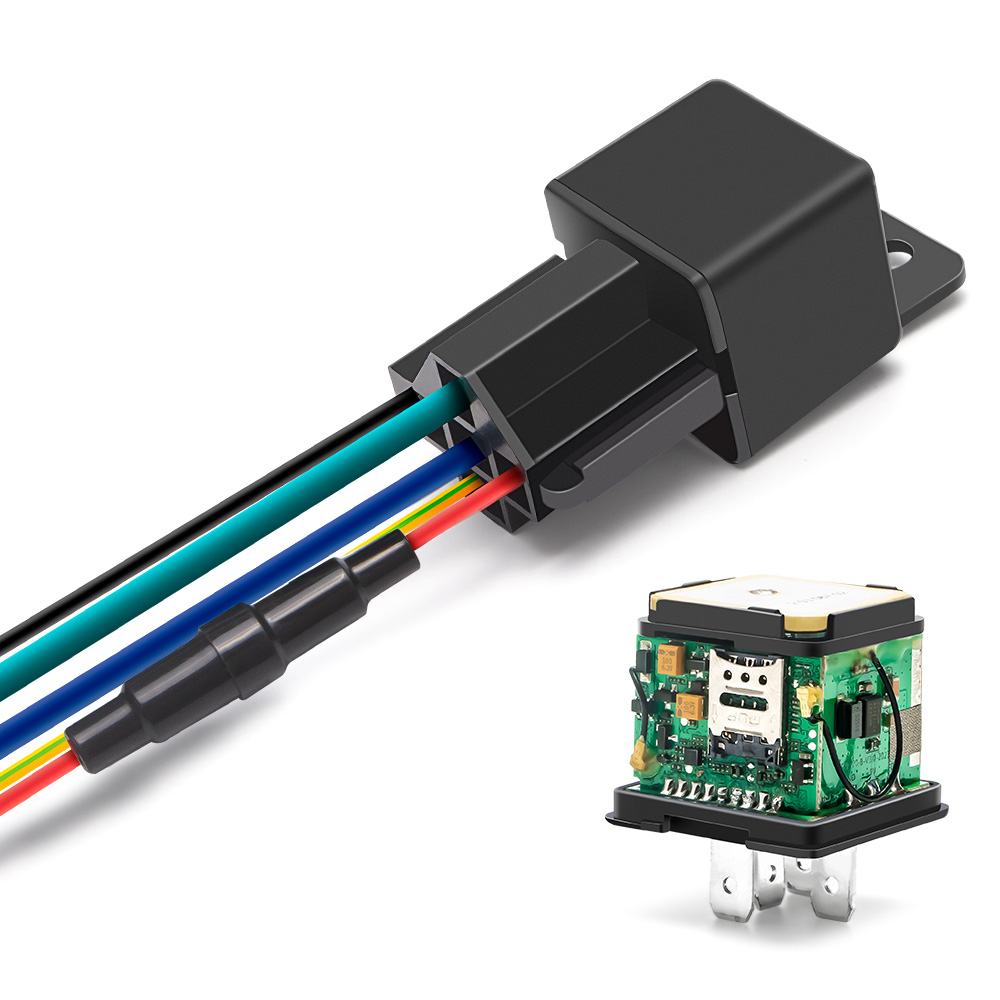

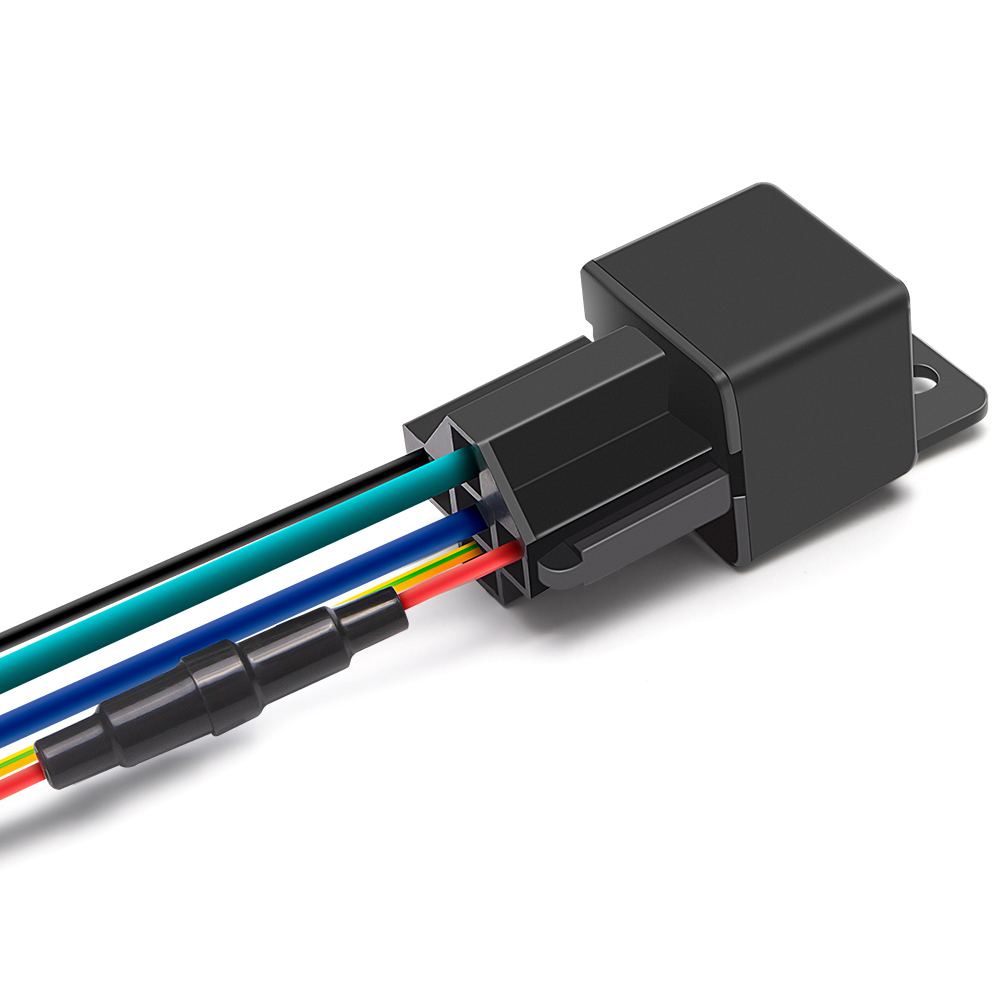

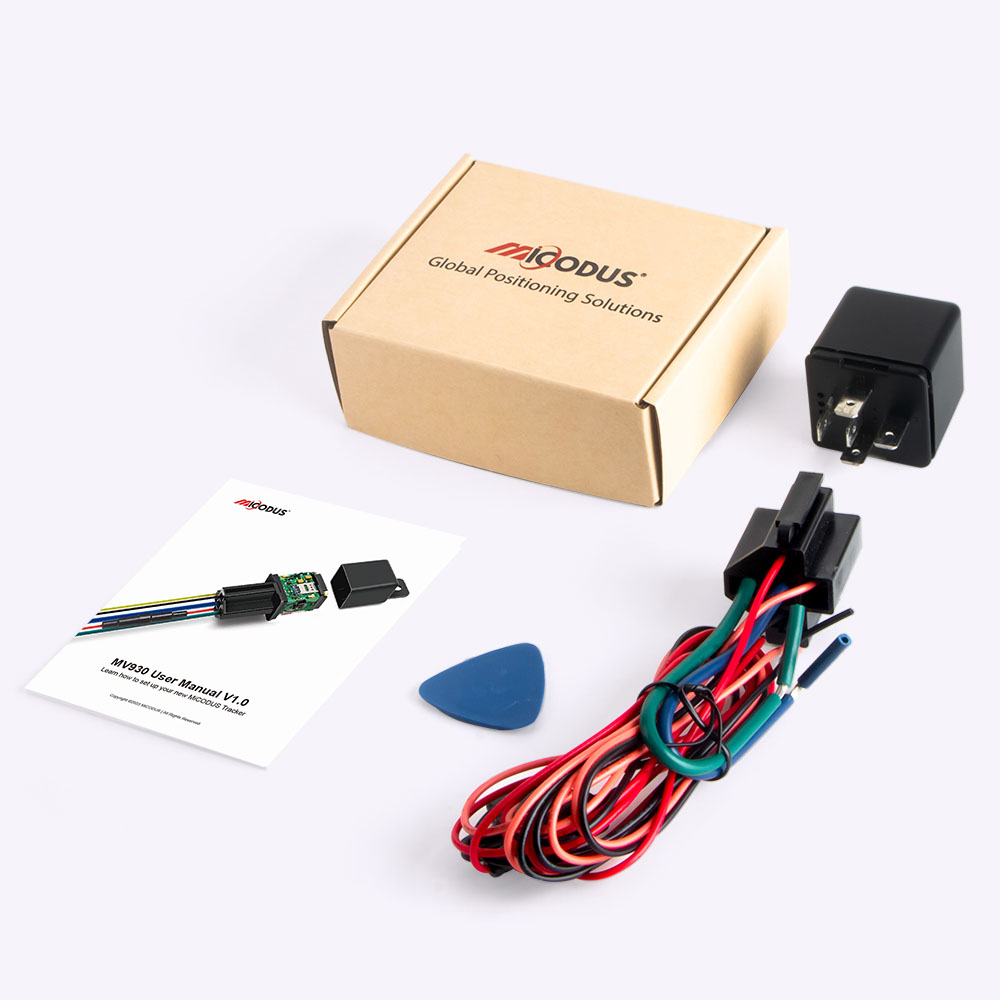

2G Relay GNSS Tracker – Discreet Vehicle Anti-Theft Unit
The MV930 features relay-style disguise for hidden installation in vehicle wiring. It works on 9-95V wide voltage for cars and motorcycles. It supports remote fuel and power cut-off, vibration and tow alarms. Multi-satellite GNSS positioning with 60mAh backup battery delivers stable location monitoring.
Product Features
-

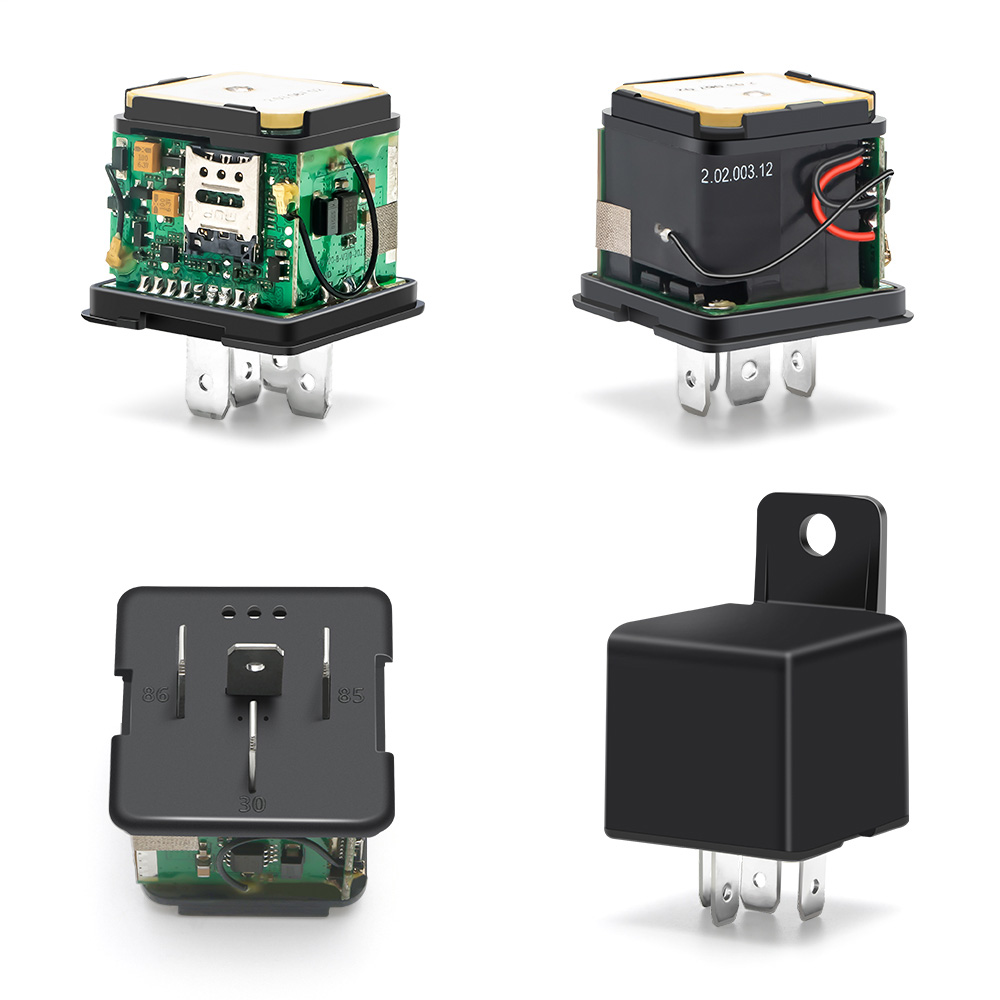

Hidden Design
Relay-shaped appearance to hide tracker and avoid discovery. -
ACC Status Detection
Capture vehicle ACC status for accurate activity records and asset supervision. -
Ignition On‑Off Alarm
Receive instant alerts when your vehicle ignition turns on or off. Catch unauthorized activity and safeguard your car against theft. -
Remote Cut-off Fuel/Power
Remotely cut fuel or power for anti-theft protection and emergency safety control. -
Trajectory Playback
Replay 180 days route to trace asset paths and secure your assets. -
Geo-fence
Get alerts for unauthorized zone crossings, restrict vehicle activity range. -
Real-time Tracking
Monitor your asset location live, keep full control all the time. -
Movement Alarm
Get alerted the moment your vehicle moves, perfect for parking security. -
Vibration Alarm
Trigger alerts on abnormal vibration, prevent vehicle tampering. -
Overspeed Alarm
Trigger alerts when speed exceeds limit, manage reckless driving risks. -
Low Voltage Alarm
Monitor car battery voltage, alert you early to avoid vehicle breakdown. -
GNSS+LBS Positioning
Precise satellite positioning, LBS backup when satellite signals drop.
- Product Specifications
- Key Features
- Download (Manual /Catalog)
Filter
Device Param
|
Model
|
MV930
|
|
Demension
|
57mm(L)*31mm(W)*31mm(H)
|
|
Weight
|
57g
|
|
Working Voltage
|
DC 9V - 95V
|
|
Working Temperature
|
-20℃ - 75℃
|
|
Working Humidity
|
10%-85%RH
|
|
Built-in Memory
|
3000pcs GPS data can be stored at network blind area
|
GNSS
|
Hot/warm/cold Start
|
<3s,<35s,<45s @ Open Sky
|
| Tracking sensitivity | -162 dBm |
| GPS Channels | 32 |

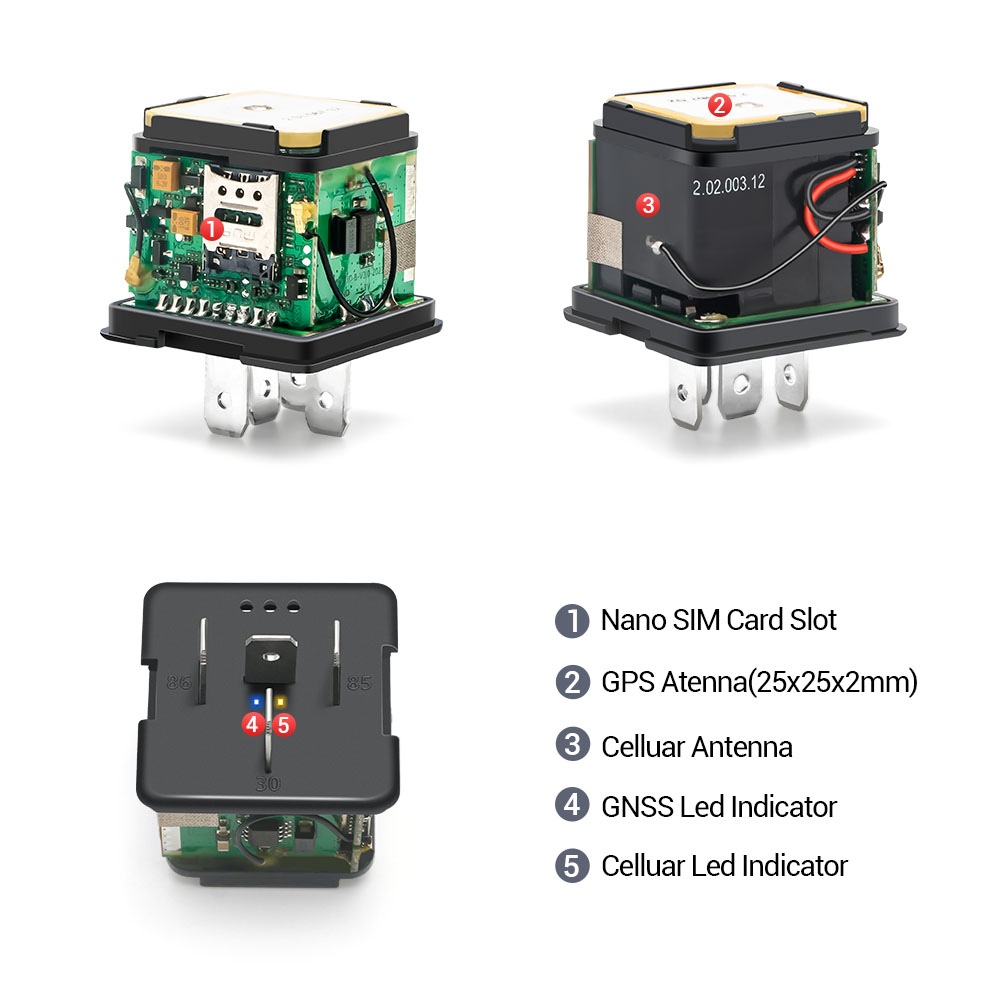

| GNSS Antenna |
Built-in Ceramics GNSS Antenna, 25*25*4mm
|
| Positioning Type | GPS+GLONASS+BDS+LBS+AGPS |
| GPS Frequency | L1: 1575.42±1.023MHz |
| BDS Frequency | B1:1561.098±2.046MHz |
|
Accurancy |
Location accuracy: <10m(1σ)
|
|
Timing accuracy: <30ns(1σ)
|
|
|
|
Speed accuracy: <0.1m/s(1σ)
|
Cellular
|
Technology
|
2G GSM
|
|
Working Frequency
|
GSM: 850/900/1800/1900MHz
|
| Cellular Antenna |
Built-in, FPC
|
| Module |
MC25
|
Power
| Battery |
Built-in 3.7V 60mAh Polymer Battery |
| Working Current |
12V/Average 40mA |
| Sleep Current |
12V/Less than 10mA |
Interface
| Digital Input | 1 x digital input for ignition detection |
| Digital Output | 1 x digital output for cut off oil |
| SIM Card | Nano SIM Card |
| Firmware Upgrade | OTA & UART Serial Upgrade |
| LED indication |
GSM LED |
| Charging LED | |
| GPS LED |
Certification
| Regulatory | CE, RoHS, FCC, UKCA, ISED |

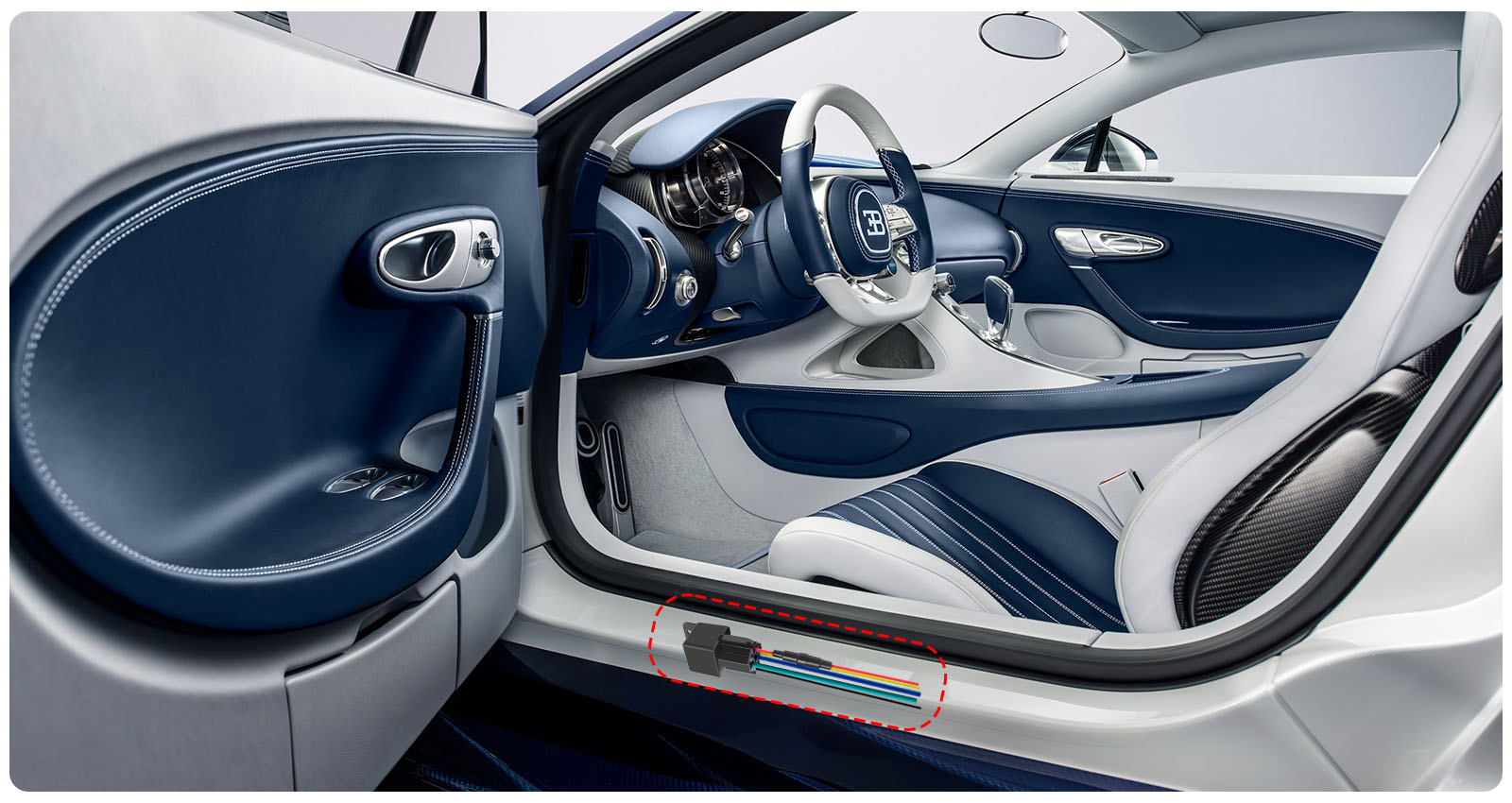

Hidden Design
A relay-like appearance design, effectively avoiding the device from being identified and damaged, enhancing the concealment and anti-theft performance of the GPS tracker.

Remote Fuel Cut‑off & Resume
Prevent asset loss from theft and payment default, remotely cut fuel to limit vehicle movement and restore fuel with one‑click after settlement, equipped with a safe fuel cut-off to avoid fuel cut‑off suddenly while driving.

ACC Status Detection
Detects the vehicle ACC ignition status. Send alert notifications when abnormal engine on/off events, delivering anti‑theft protection for fleet vehicles.
