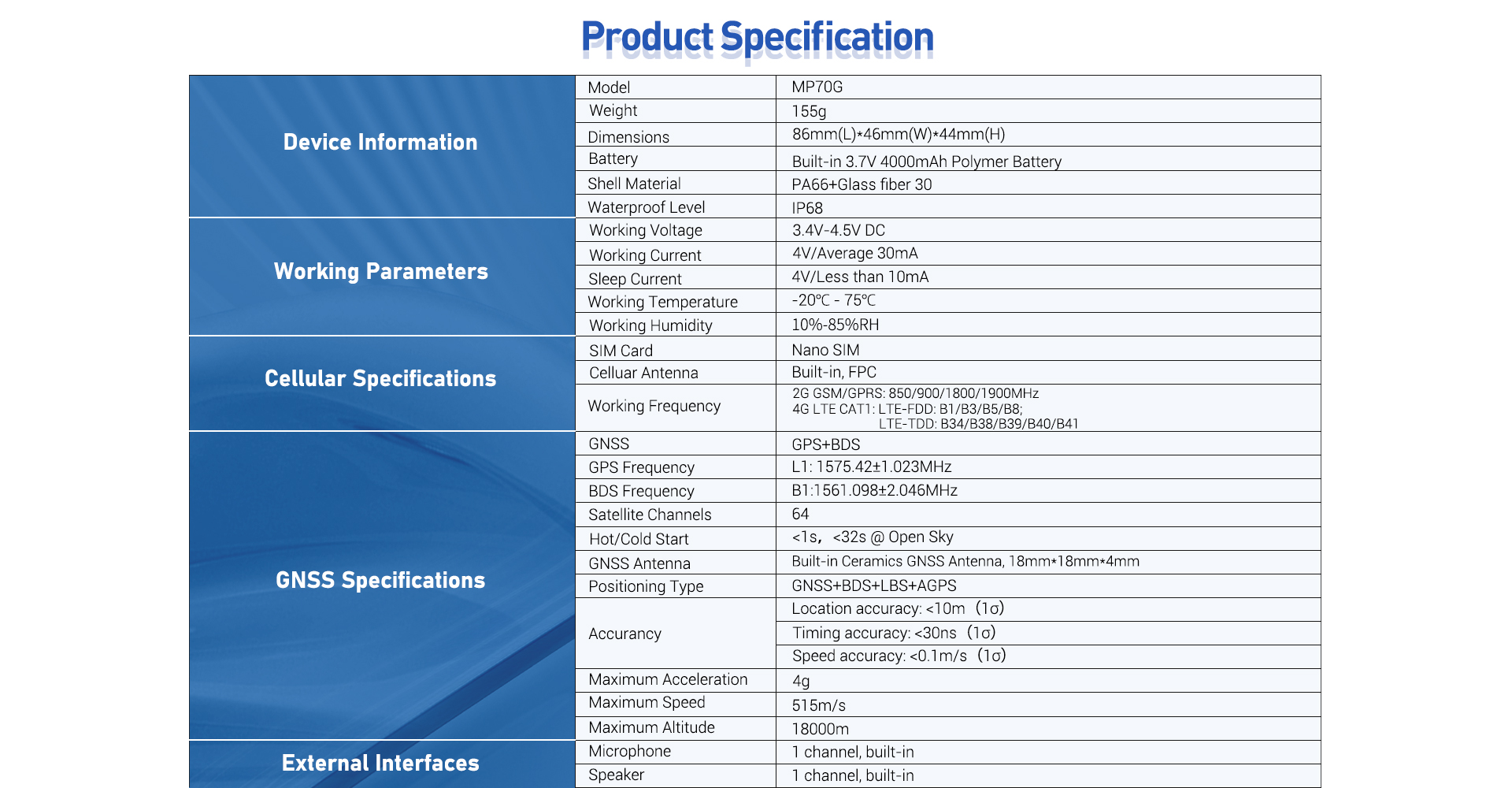

Device Information
Dimensions86 x 46 x 44mm (L x W x H)
Weight155g
BatteryBuilt-in 3.7V 4000mAh Polymer Battery
Shell MaterialPA66+Glass fiber 30
Waterproof LevelIP68
MODULE
Name
Technology
GNSS
GNSSGPS+BDS
GPS FrequencyL1: 1575.42±1.023MHz
BDS FrequencyB1:1561.098±2.046MHz
Satellite Channels64
Hot/Cold Start<1s，<32s @ Open Sky
GNSS AntennaBuilt-in Ceramics GNSS Antenna, 18mm*18mm*4mm

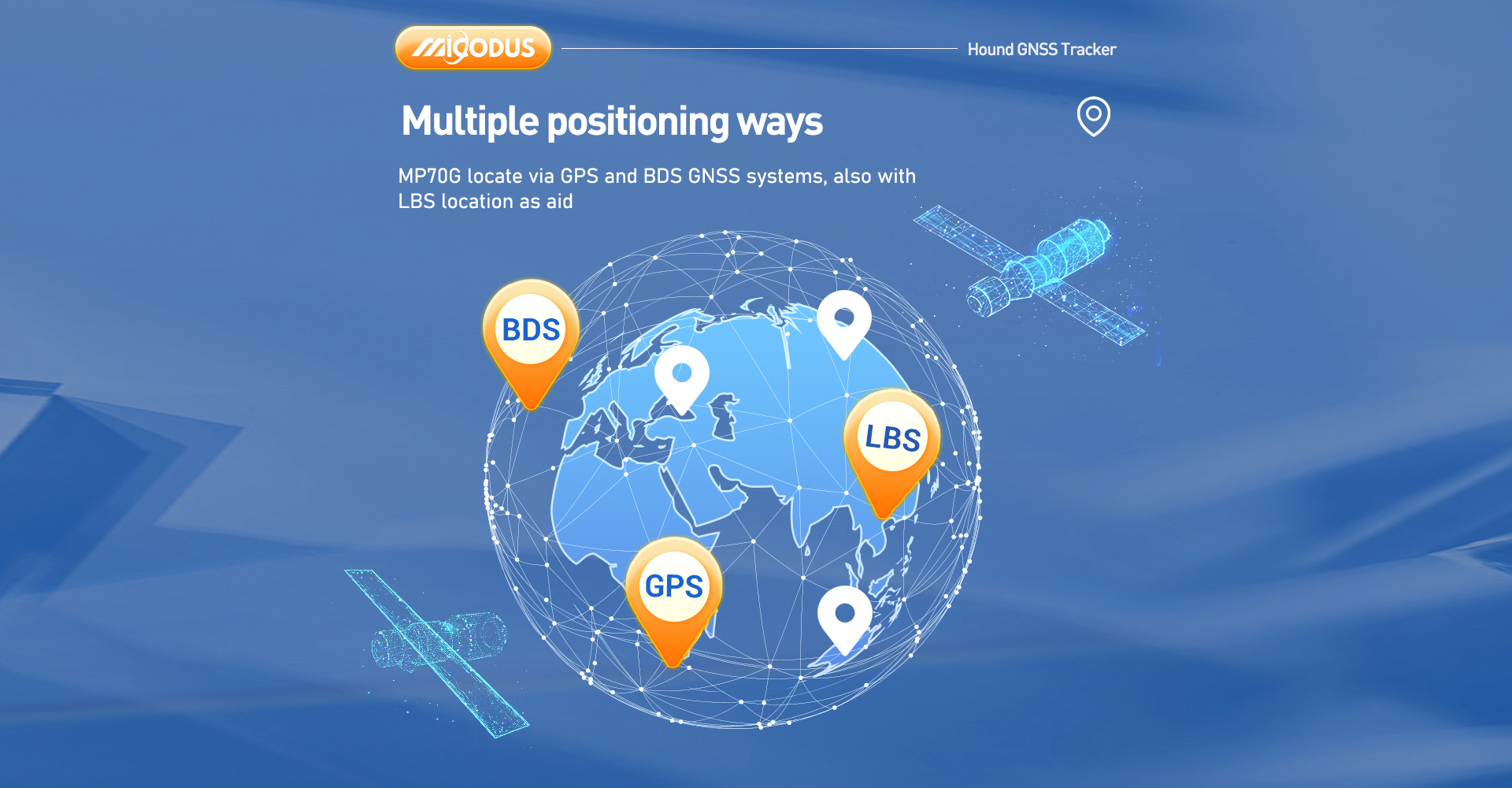

Positioning TypeGNSS+BDS+LBS+AGPS
AccurancyLocation accuracy: <10m（1σ）
Timing accuracy: <30ns（1σ）
Speed accuracy: <0.1m/s（1σ）
Maximum Acceleration4g
Maximum Speed515m/s
Maximum Altitude18000m
CELLULAR
Working Frequency

4G LTE CAT1: LTE-FDD: B1/B3/B5/B8;  LTE-TDD: B34/B38/B39/B40/B41

2G GSM/GPRS: 850/900/1800/1900MHz
Celluar Antenna

Built-in, FPC

SIM CardNano SIM
Working Parameters
Working Voltage3.4V-4.5V DC
Working Current4V/Average 30mA
Sleep Current4V/Less than 10mA
Working Temperature-20℃ - 75℃
Working Humidity10%-85%RH

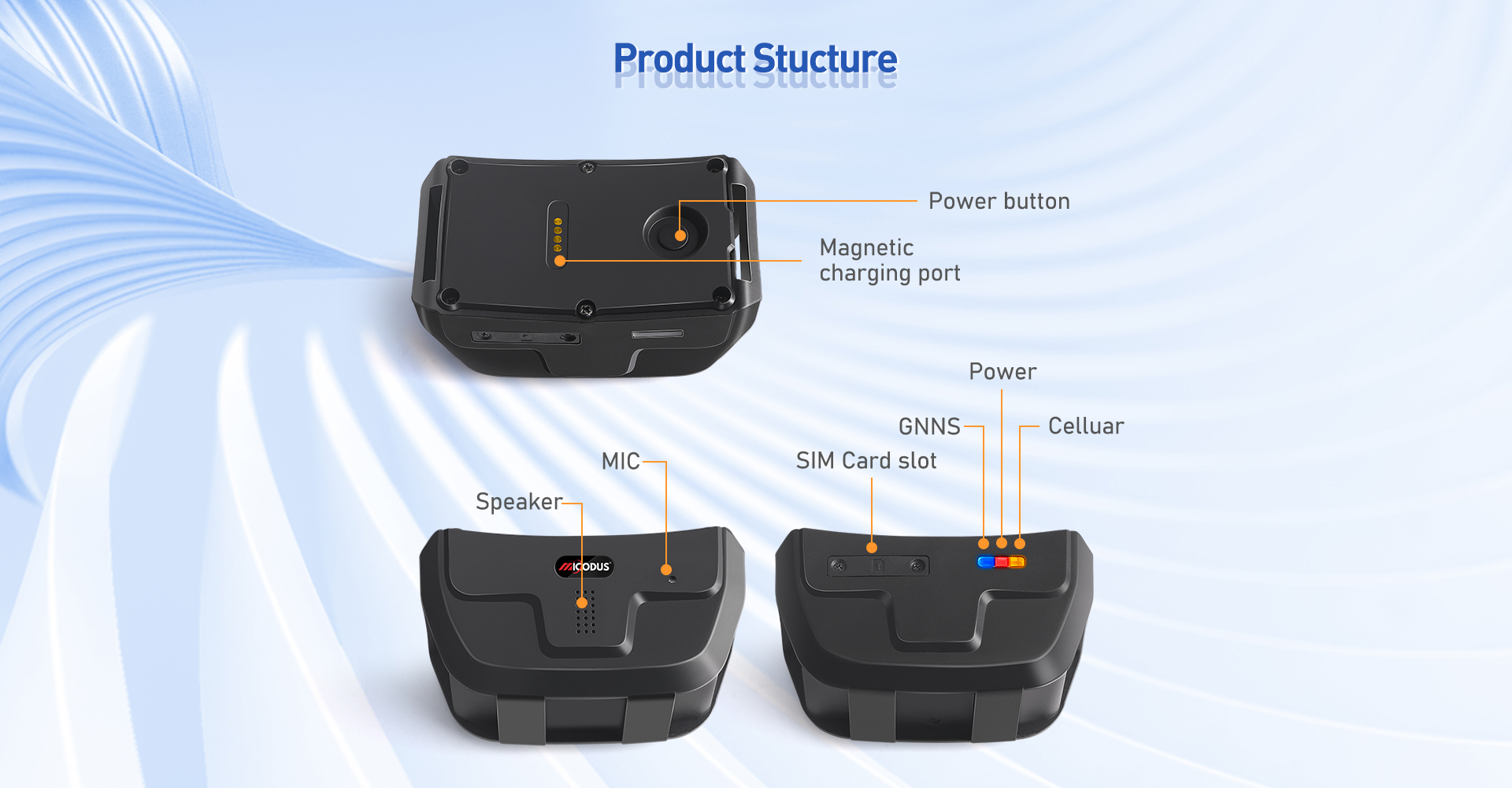

External Interfaces
Microphone1 channel, built-in
Speaker1 channel, built-in
