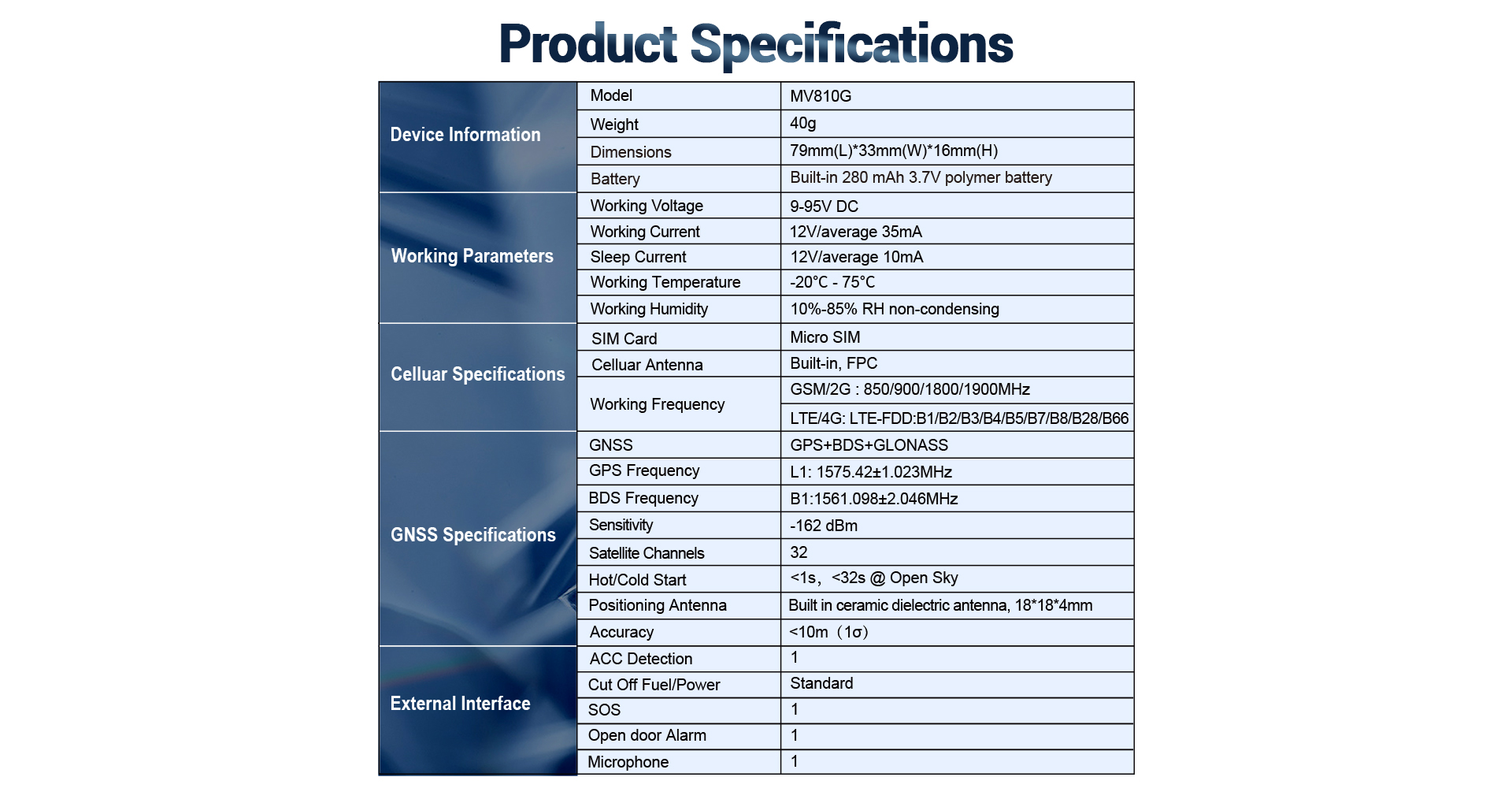

PHYSICAL SPECIFICATION
Dimensions79mm(L)*33mm(W)*16mm(H)
Weight40g
Working Parameters
BatteryBuilt-in 280 mAh 3.7V polymer battery
Working Voltage9-95V DC
Working Current12V/average 35mA
Sleep Current12V/average 10mA
Working Temperature-20℃ - 75℃
Working Humidity10%-85% RH non-condensing
GNSS Specifications
GNSSGPS+BDS+GLONASS
GPS FrequencyL1: 1575.42±1.023MHz
BDS FrequencyB1:1561.098±2.046MHz
Sensitivity-162 dBm
Satellite Channels32
Hot/Cold Start<1s，<32s @ Open Sky
Positioning AntennaBuilt in ceramic dielectric antenna, 18*18*4mm
Accuracy<10m（1σ）
Celluar Specifications
Working Frequency

LTE/4G: LTE-FDD:B1/B2/B3/B4/B5/B7/B8/B28/B66

GSM/2G : 850/900/1800/1900MHz

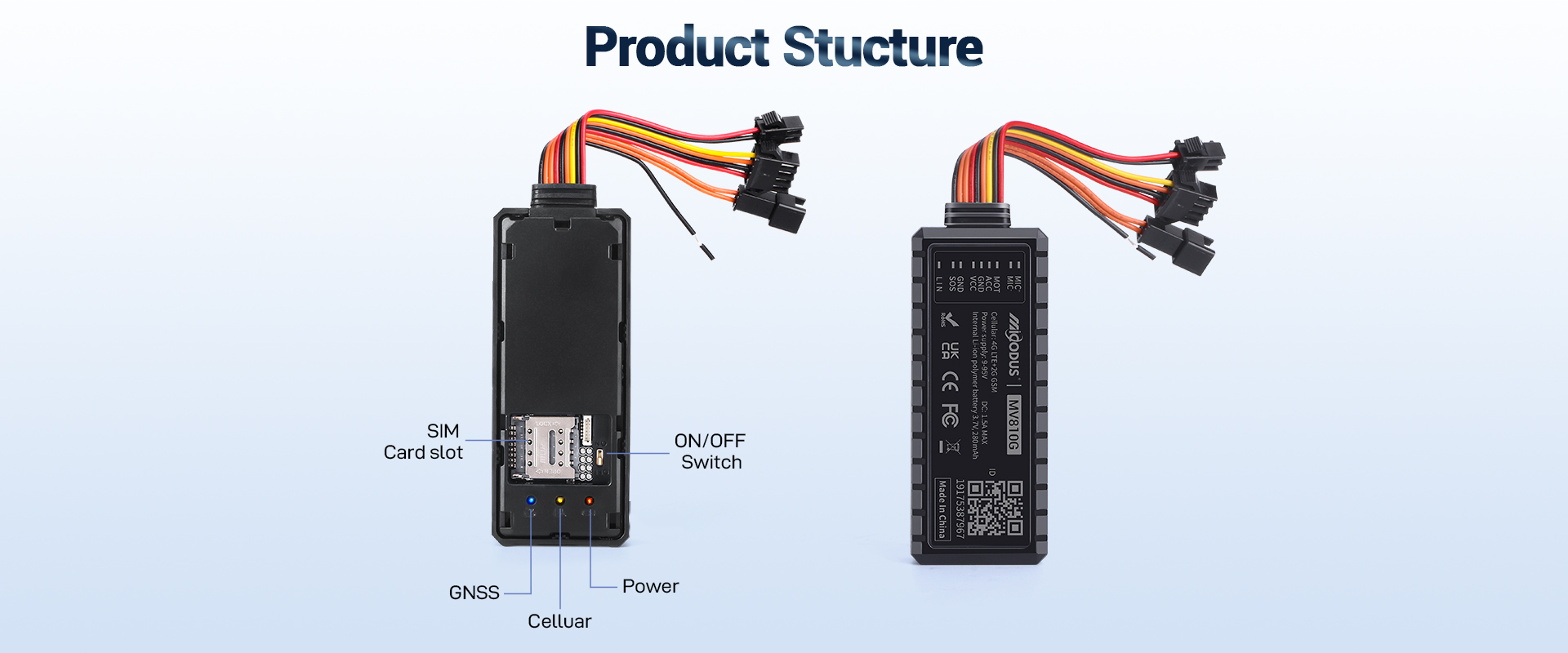

SIM Card

Micro SIM

Cellular AntennaBuilt-in, FPC

External Interface

ACC Detection1
Cut Off Fuel/PowerStandard

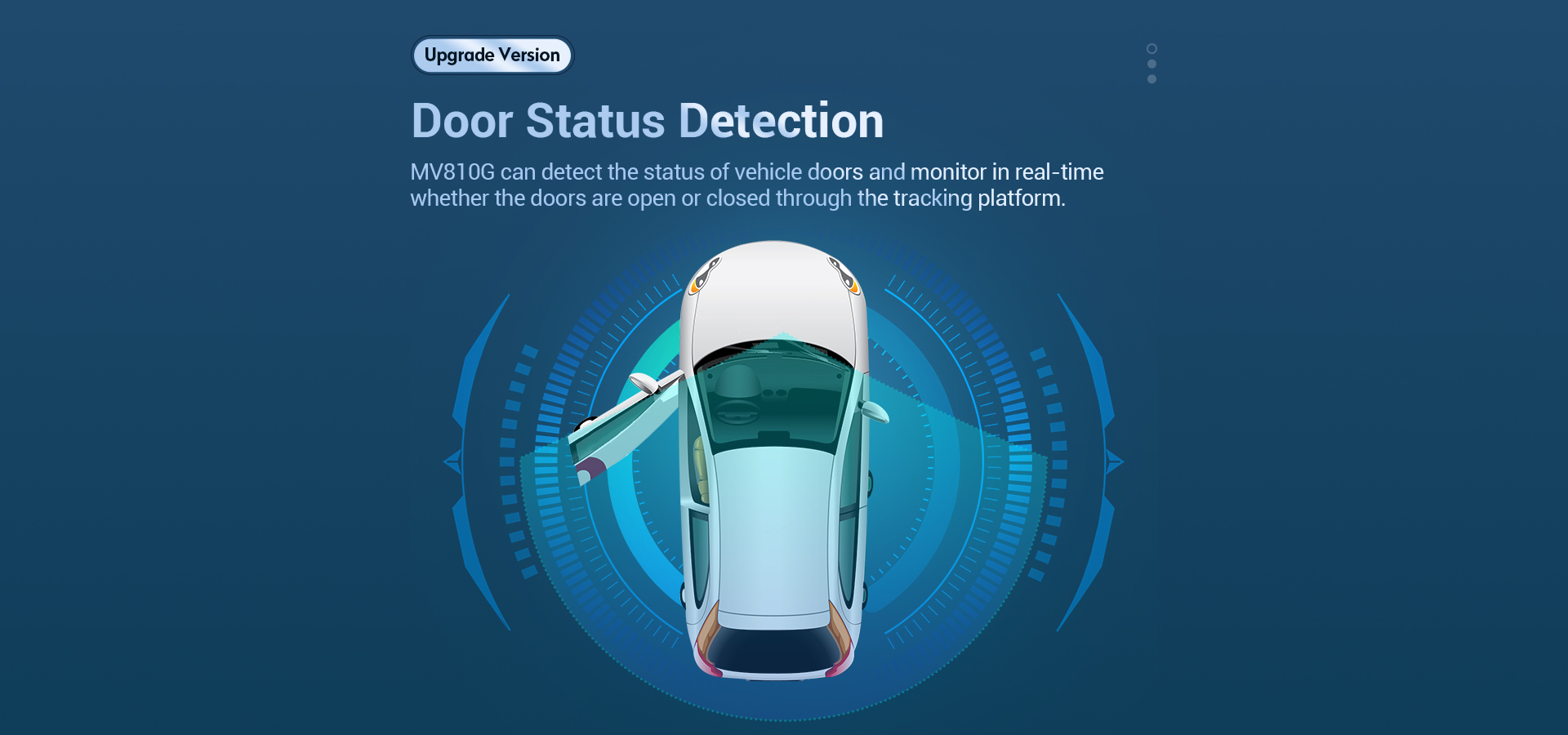

Open door Alarm 1
SOS1
Microphone1
