4G Relay GNSS Tracker – Covert Anti-Theft Solution

The MV930G stands out with its relay-style camouflage design, hiding discreetly inside vehicles to evade thieves—a unique edge over standard trackers. It supports 9-95V wide voltage, fitting cars, trucks, and motorcycles. Key features include remote fuel cut-off, ACC detection, vibration/tow alarms, and signal jamming detection. With GPS+GLONASS+BDS+LBS positioning and 60mAh backup battery, it ensures reliable tracking and theft prevention.

Product Features

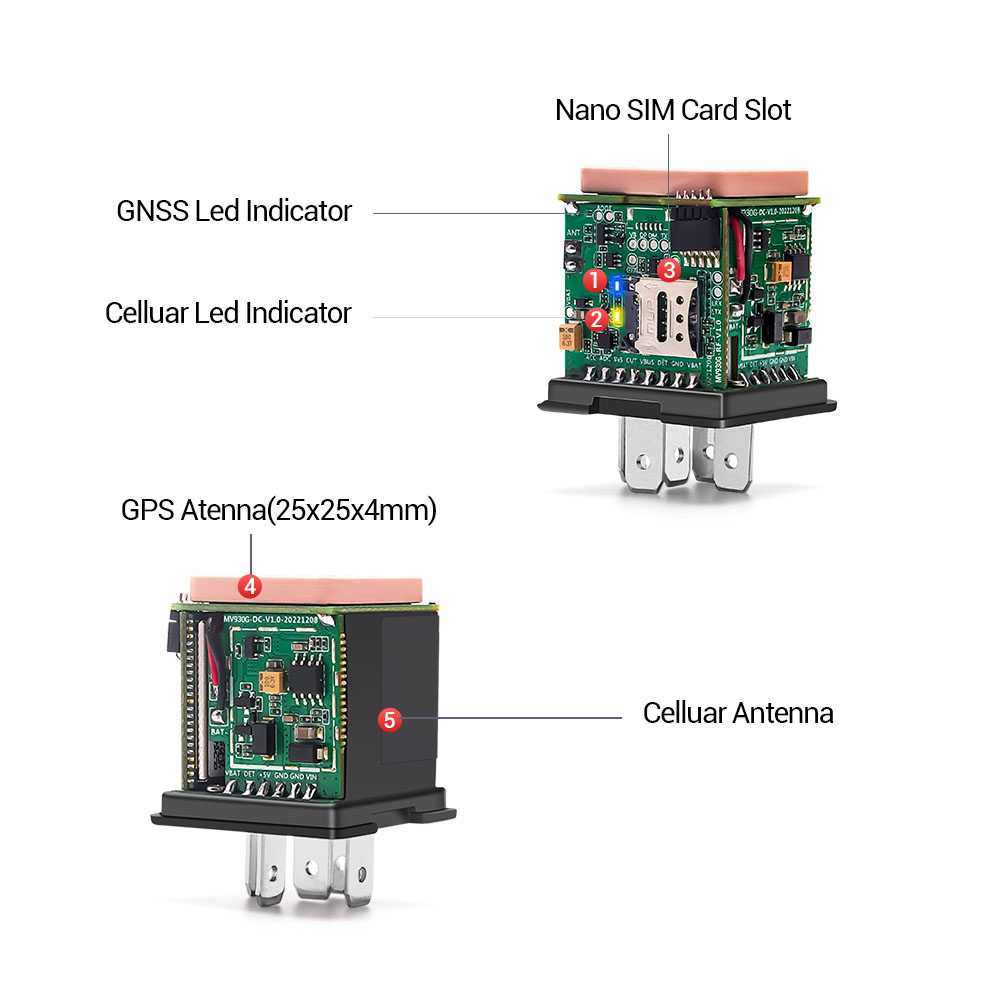

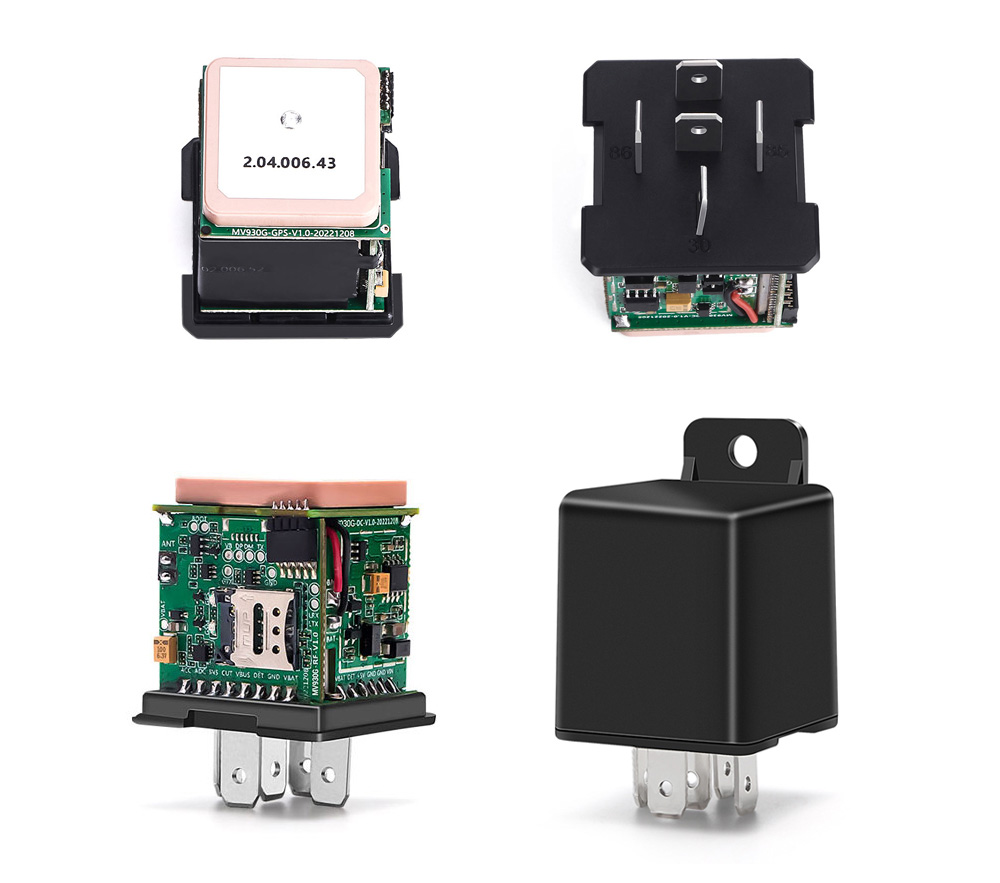

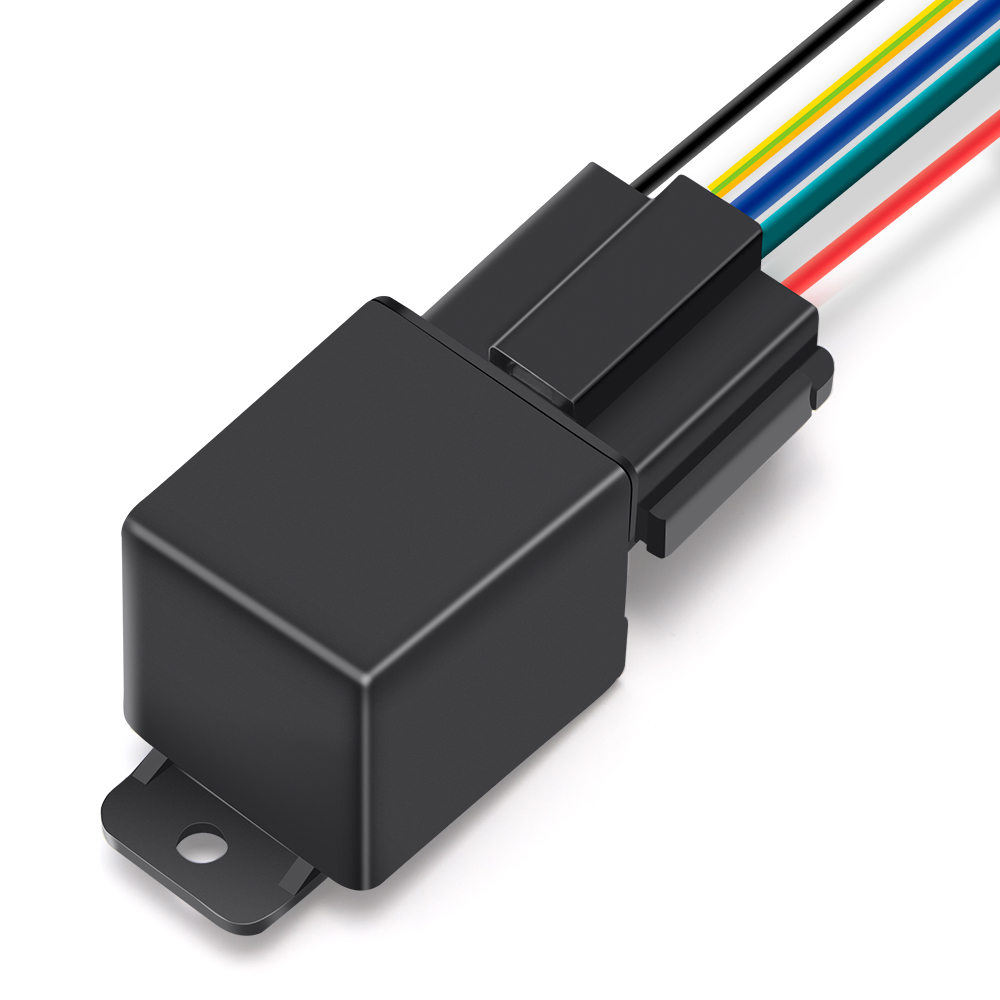

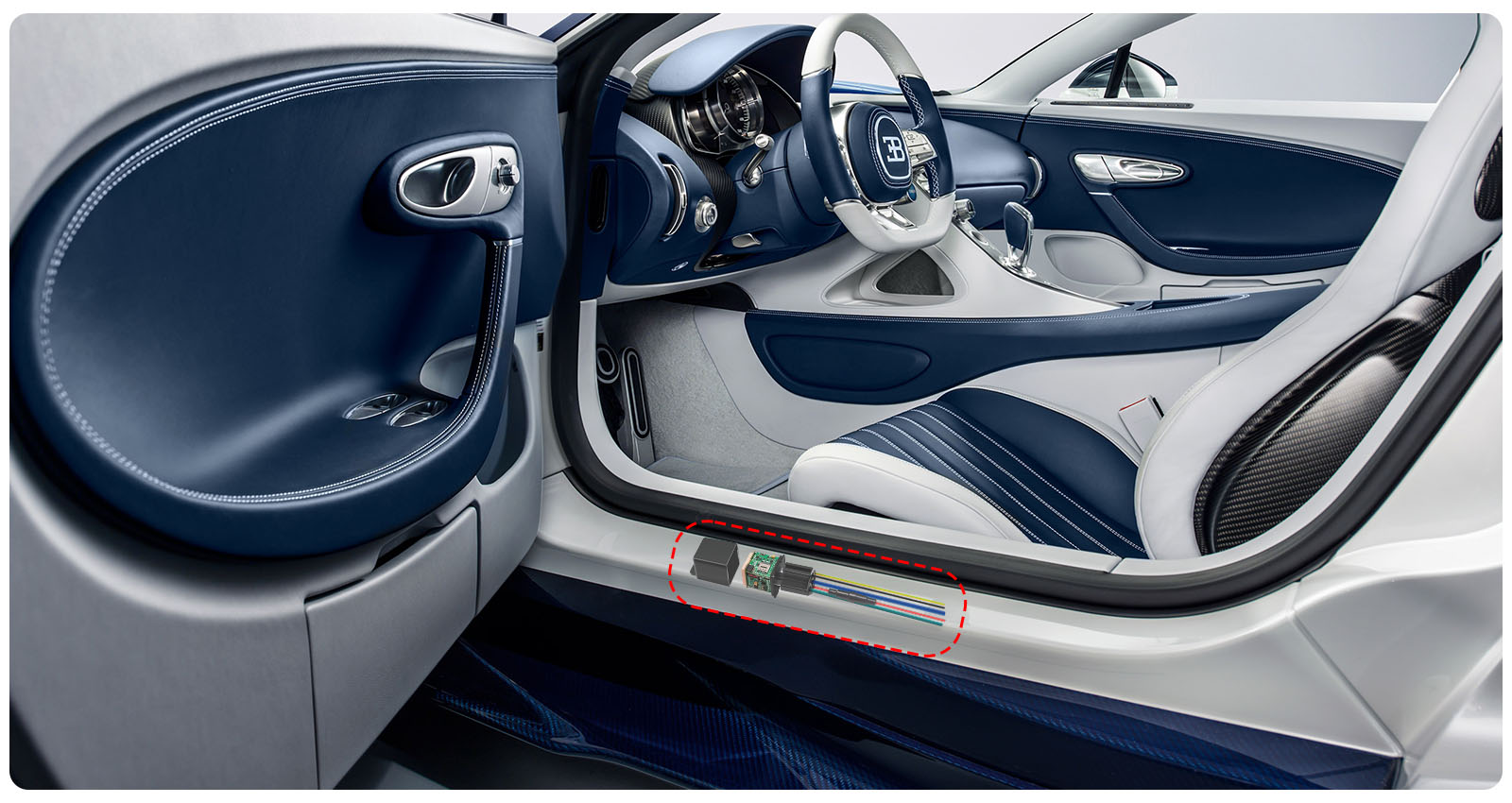

Hidden Design

Relay-shaped appearance to hide tracker and avoid discovery.
Anti Jamming

Auto fuel cut if thieves use jammer nearby when you’re away, preventing vehicle theft.
Remote Cut-off Fuel/Power

Remotely cut fuel or power for anti-theft protection and emergency safety control.
ACC Status Detection

Capture vehicle ACC status for accurate activity records and asset supervision.
Ignition On‑Off Alarm

Receive instant alerts when your vehicle ignition turns on or off. Catch unauthorized activity and safeguard your car against theft.
Geo-fence

Get alerts for unauthorized zone crossings, restrict vehicle activity range.
Overspeed Alarm

Trigger alerts when speed exceeds limit, manage reckless driving risks.
Low Voltage Alarm

Monitor car battery voltage, alert you early to avoid vehicle breakdown.
Real-time Tracking

Monitor your asset location live, keep full control all the time.
Trajectory Playback

Replay 180 days route to trace asset paths and secure your assets.
GNSS+LBS Positioning

Precise satellite positioning, LBS backup when satellite signals drop.
Multiple Anti-theft Alarms

Movement, vibration, wire‑cut and ignition status alarms to guard your vehicle around the clock.

Product Specifications
Key Features
Download (Manual /Catalog)

Filter

Device Param

Model	MV930G
Demension	76mm(L)32mm(W)32mm(H)
Weight	70g
Working Voltage	DC 9V - 95V
Working Temperature	-20℃ - 75℃
Working Humidity	10%-85%RH
Built-in Memory	3000pcs GPS data can be stored at network blind area

GNSS

Hot/warm/cold Start	<3s，<35s，<45s @ Open Sky
Tracking sensitivity	-162 dBm
GPS Channels	32
GNSS Antenna	Built-in Ceramics GNSS Antenna, 25254mm
Positioning Type	GPS+GLONASS+BDS+LBS+AGPS
GPS Frequency	L1: 1575.42±1.023MHz
BDS Frequency	B1:1561.098±2.046MHz
Accurancy	Location accuracy: <10m（1σ）
	Timing accuracy: <30ns（1σ）
	Speed accuracy: <0.1m/s（1σ）

Cellular

Technology	2G GSM+4G LTE CAT1
Working Frequency	MV930G-SA Module: SIMCOM A7670SA GSM: 850/900/1800/1900MHz LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B28/B66
	MV930G-EU Module: SIMCOM A7670E GSM: 900/1800MHz LTE-FDD: B1/B3/B5/B7/B8/B20
	MV930G-Global Module: SIMCOM A7670G GSM: 850/900/1800/1900MHz LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/B18/B19/B20/B25/B26/B28/B66 LTE-TDD: B34/B38/B39/B40/B41
Cellular Antenna	Built-in, FPC

Power

Battery	Built-in 3.7V 60mAh Polymer Battery
Working Current	12V/Average 56mA
Sleep Current	12V/Average 7.7mA

Interface

Digital Input	1 x digital input for ignition detection
Digital Output	1 x digital output for cut off oil
SIM Card	Nano SIM Card
Firmware Upgrade	OTA Upgrade
LED indication	GSM LED
	Charging LED
	GPS LED
