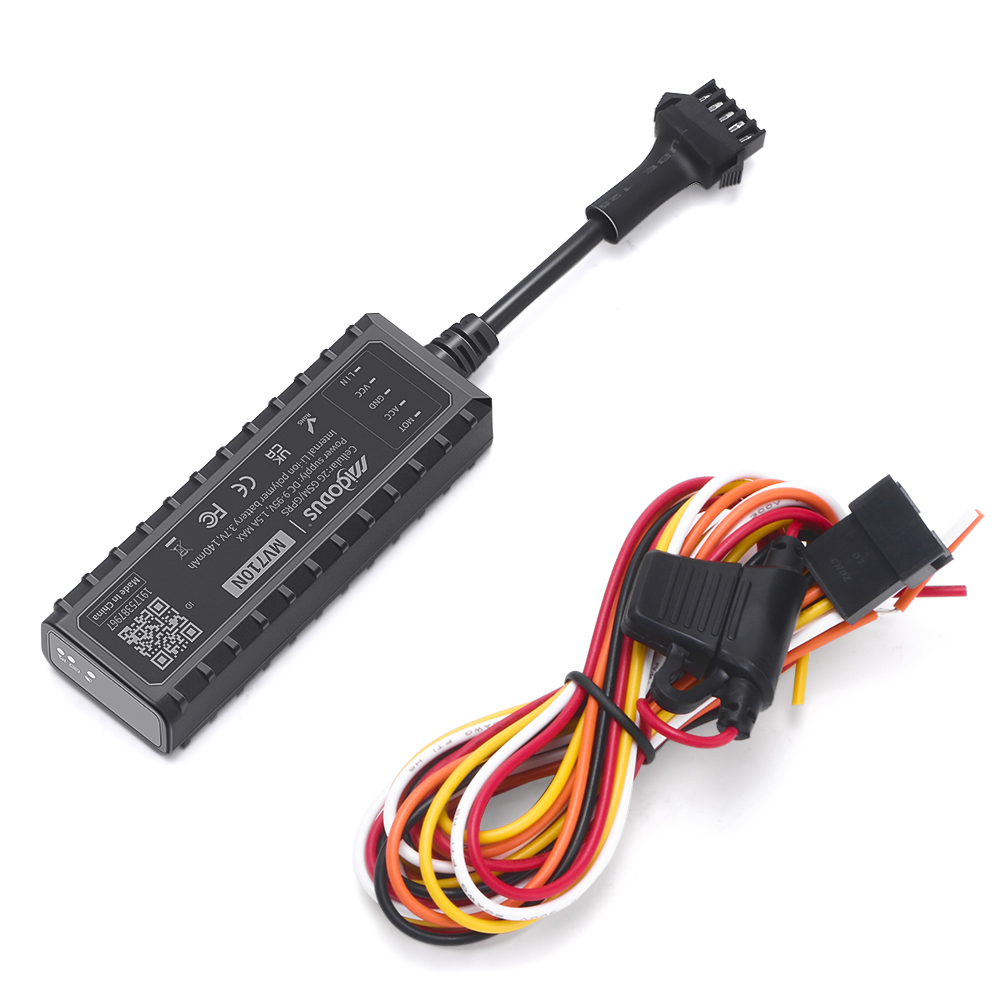

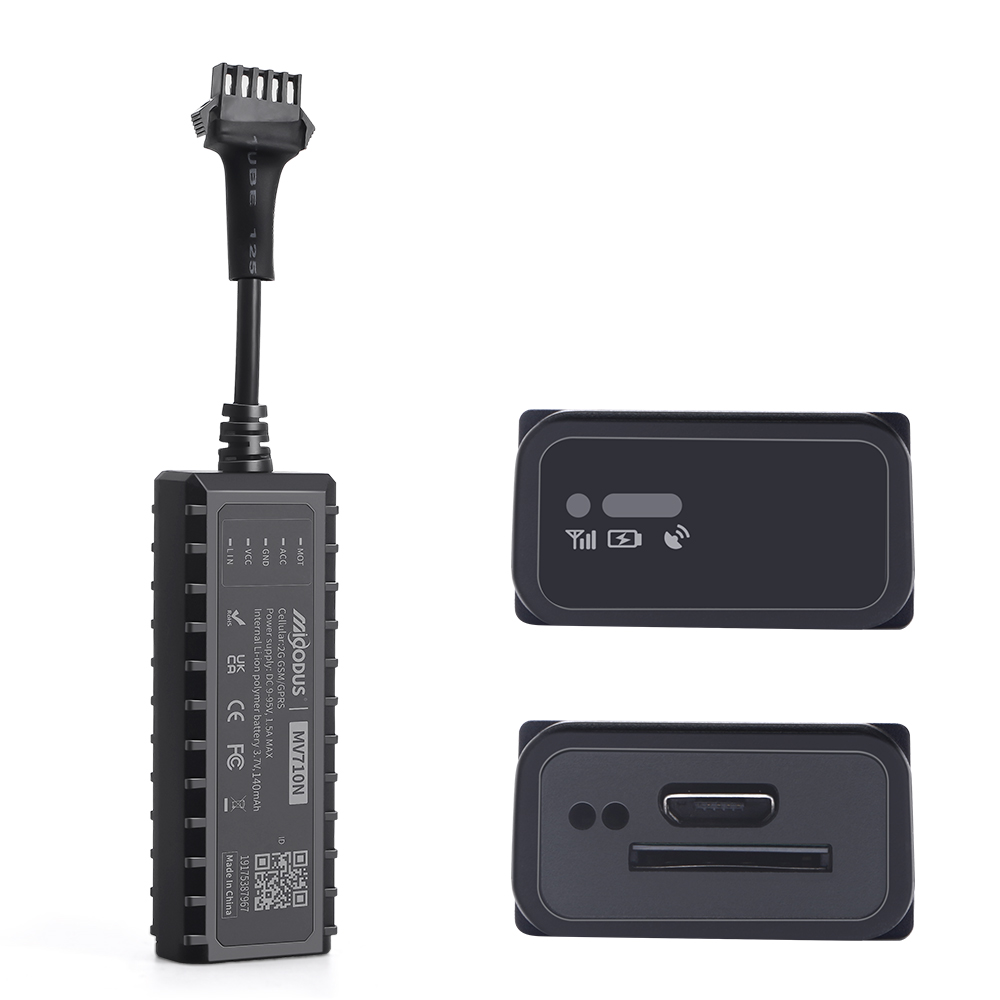

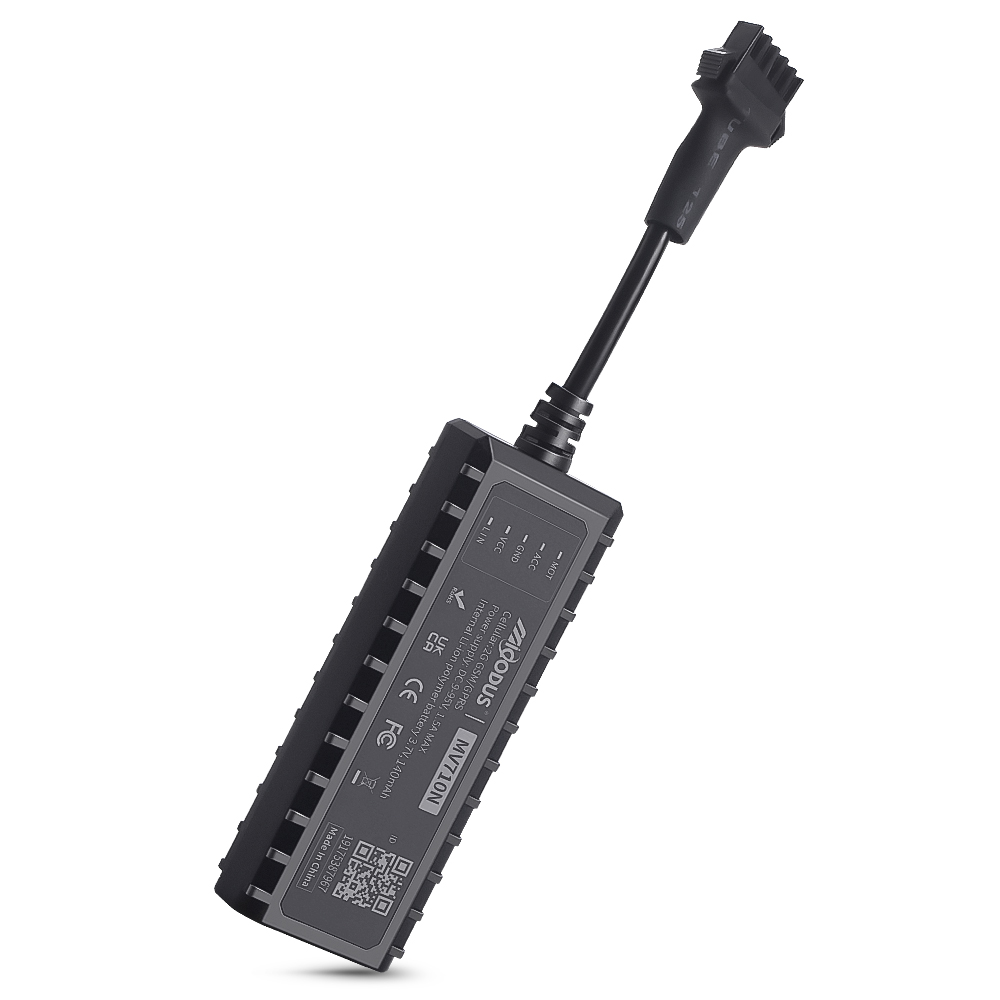

2G Vehicle GPS Tracker – Compact, Reliable & Cost-effective

The MV710N stands out as an ultra-compact 2G tracker offering essential tracking at a low cost—ideal for price-sensitive markets. It supports 9-95V wide voltage, remote fuel cut-off, ACC detection, door-open, vibration, and low-voltage alarms. With GPS+BDS+GLONASS+AGPS positioning and a 140mAh backup battery, it delivers dependable vehicle security for cars and motorcycles.

Product Features

Anti Jamming

Auto fuel cut if thieves use jammer nearby when you’re away, preventing vehicle theft.
Door Status Detection

Monitor and log vehicle door status to track door activity and spot unusual vehicle use.
Open Door Alarm

Receive instant alerts when your car door is opened. Detect unauthorized entry and safeguard your vehicle against theft.
ACC Status Detection

Capture vehicle ACC status for accurate activity records and asset supervision.

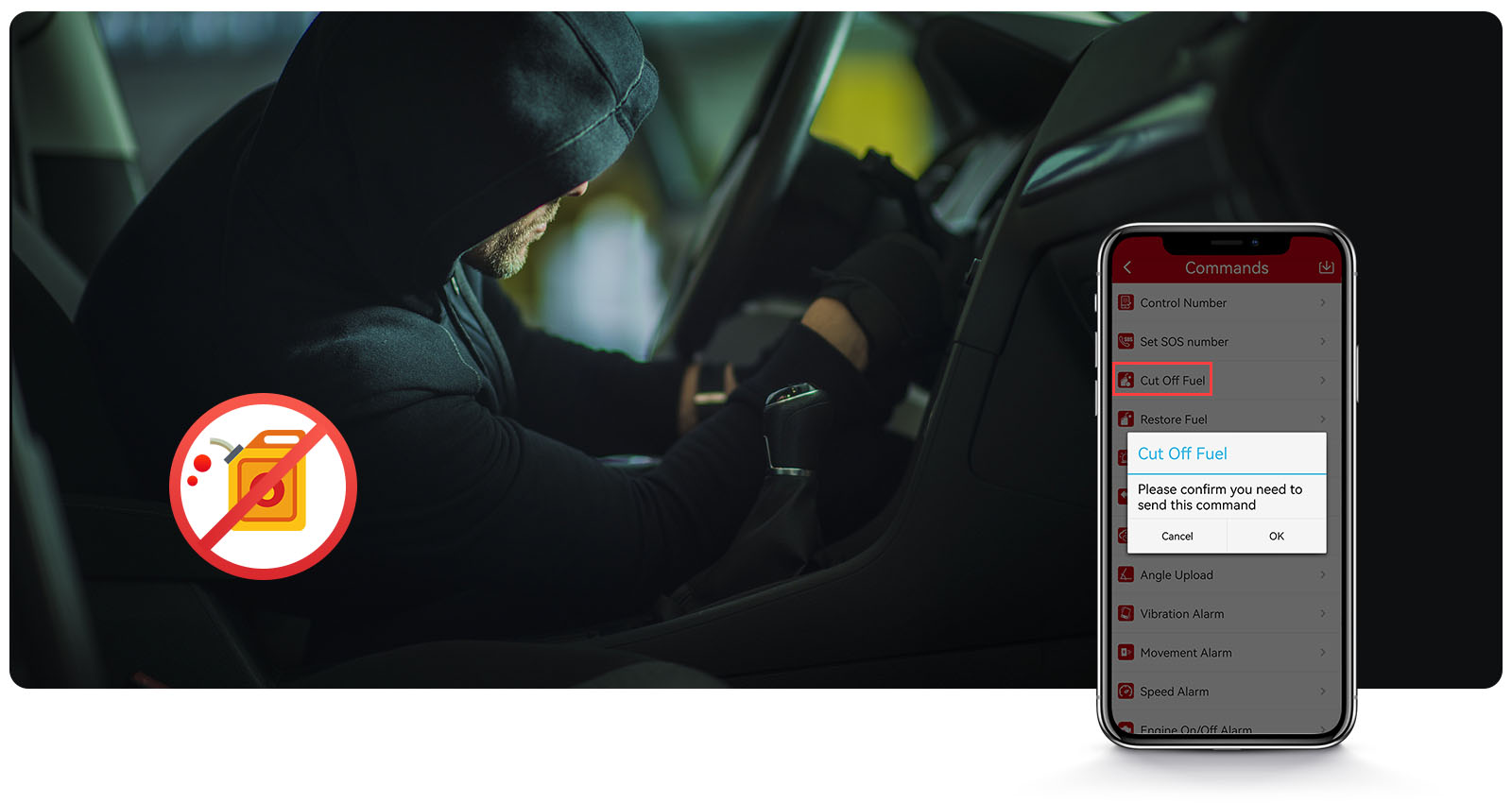

Remote Cut-off Fuel/Power

Remotely cut fuel or power for anti-theft protection and emergency safety control.
Trajectory Playback

Replay 180 days route to trace asset paths and secure your assets.
Geo-fence

Get alerts for unauthorized zone crossings, restrict vehicle activity range.
Real-time Tracking

Monitor your asset location live, keep full control all the time.
Overspeed Alarm

Trigger alerts when speed exceeds limit, manage reckless driving risks.
Low Voltage Alarm

Monitor car battery voltage, alert you early to avoid vehicle breakdown.
GNSS+LBS Positioning

Precise satellite positioning, LBS backup when satellite signals drop.
Multiple Anti-theft Alarms

Movement, vibration, wire‑cut and ignition status alarms to guard your vehicle around the clock.

Product Specifications
Key Features
Download (Manual /Catalog)

Filter

Device Param

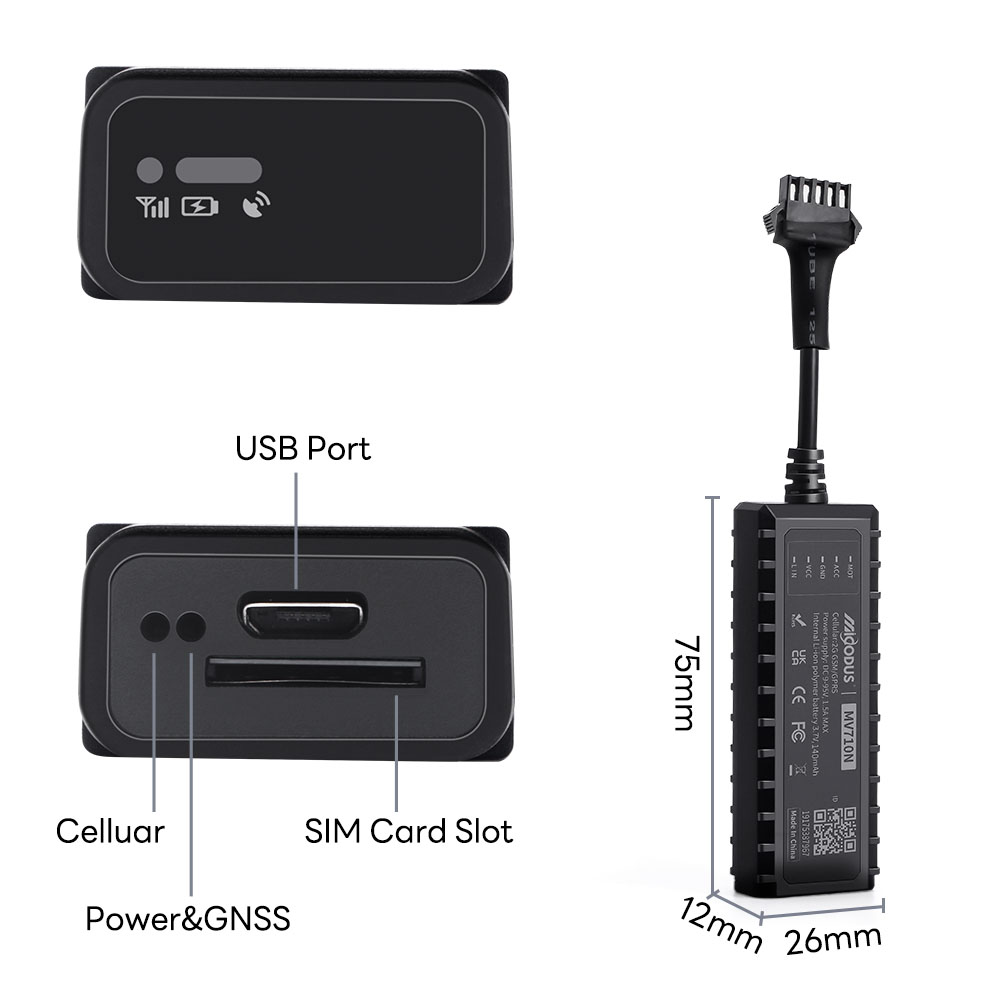

Model	MV710N
Demension	75mm(L)26mm(W)12mm(H)
Weight	31.6g
Working Voltage	DC 9V - 95V
Working Temperature	-20℃ - 75℃
Working Humidity	10%-85%RH
Built-in Memory	320pcs GPS data can be stored at network blind area

GNSS

Hot/Cold Start	<1s，<32s @ Open Sky
Tracking sensitivity	-162 dBm
GPS Channels	32
GNSS Antenna	Built in ceramic dielectric antenna, 18184mm
Positioning Type	GPS+BDS+GLONASS+LBS+AGPS
GPS Frequency	L1: 1575.42±1.023MHz
BDS Frequency	B1:1561.098±2.046MHz
Accurancy	<10m（1σ）

Cellular

Technology	2G GSM
Working Frequency	GSM: 850/900/1800/1900MHz
Cellular Antenna	Built-in, FPC

Power

Battery	3.7V 140mAh Polymer battery
Work Current	12V/average 35mA
Sleep Current	12V/average 10mA

Interface

Digital Input	1 x digital input for door sensor
Digital Input	1 x digital input for ignition detection
Digital Output	1 x digital output for cut off oil
SIM Card	Micro SIM Card
Firmware Upgrade	OTA & UART Serial Upgrade
LED indication	GSM LED
	Charging LED
	GPS LED
