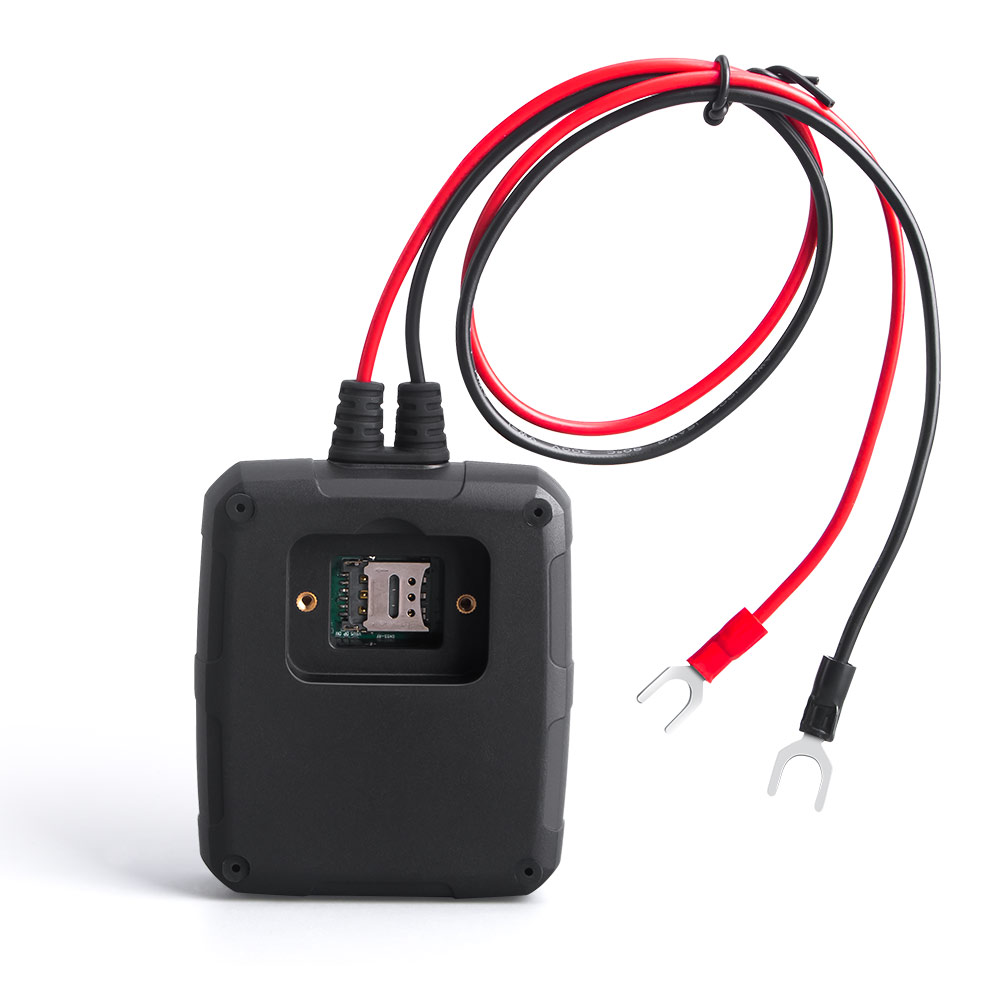

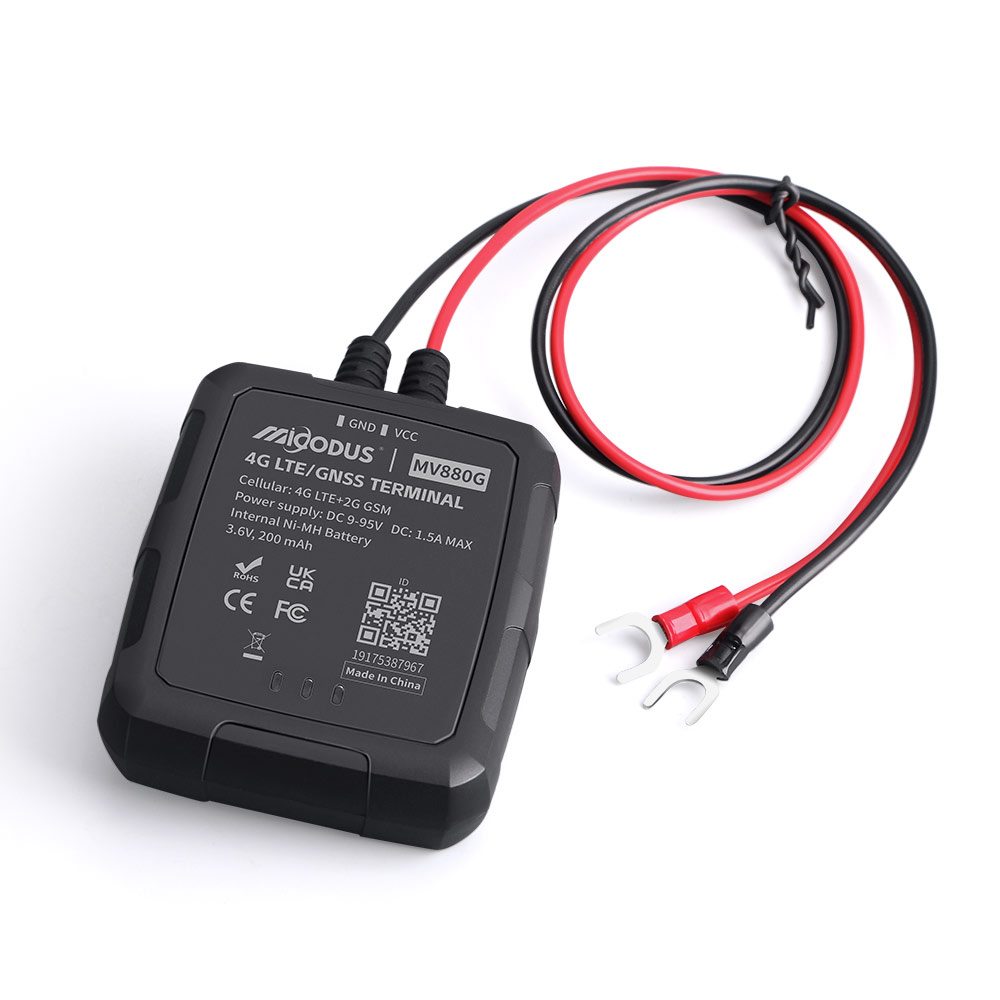

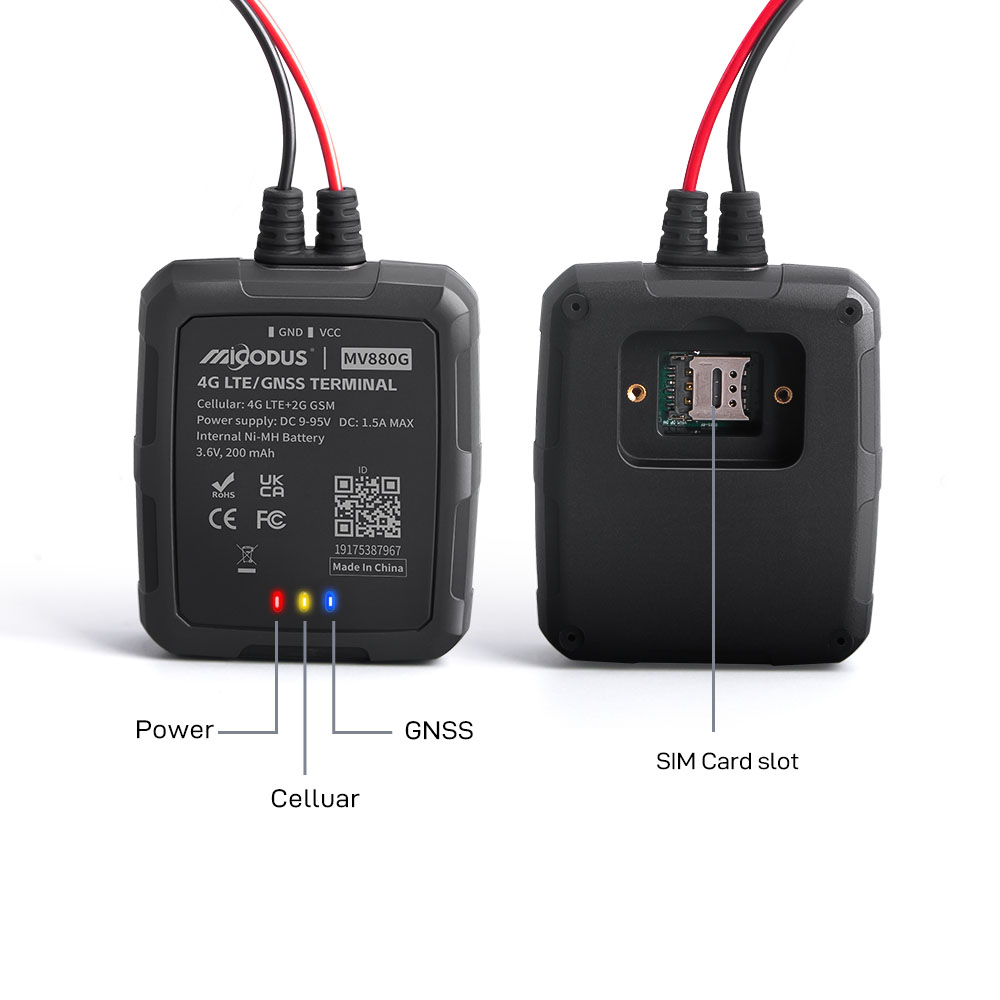

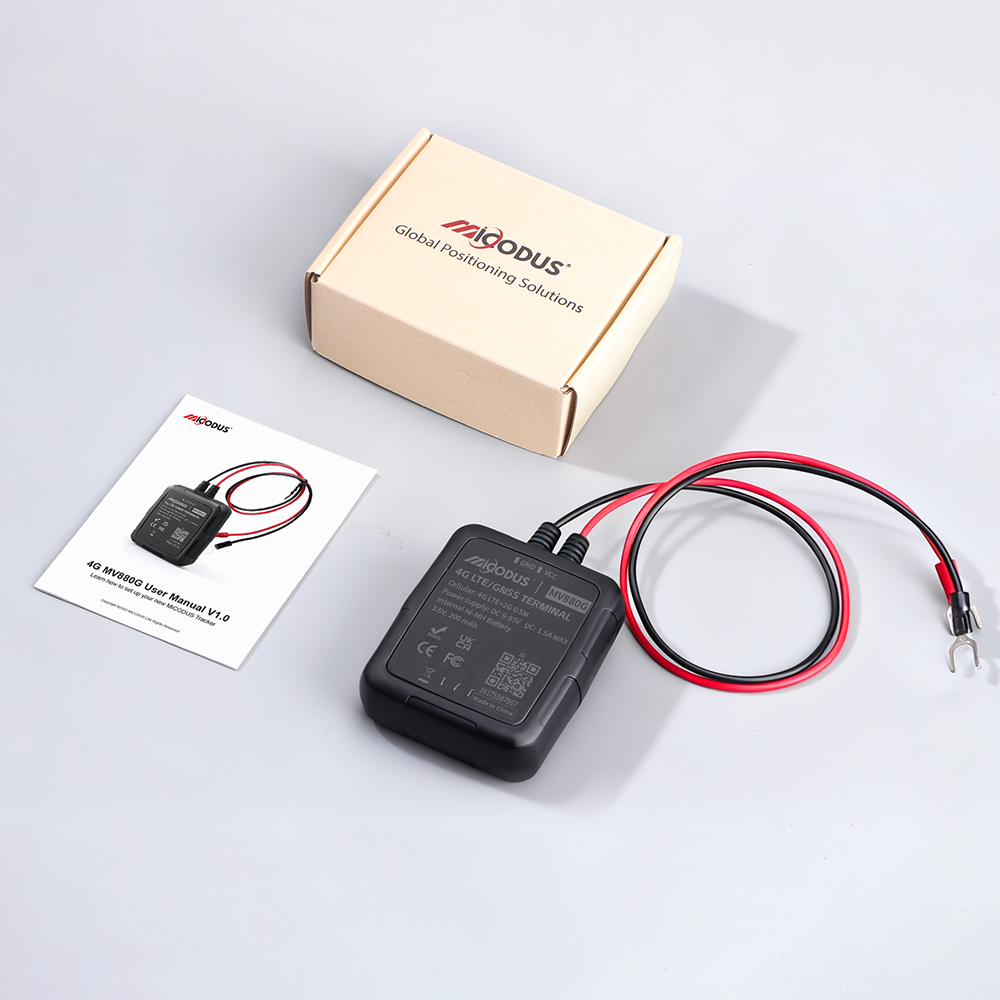

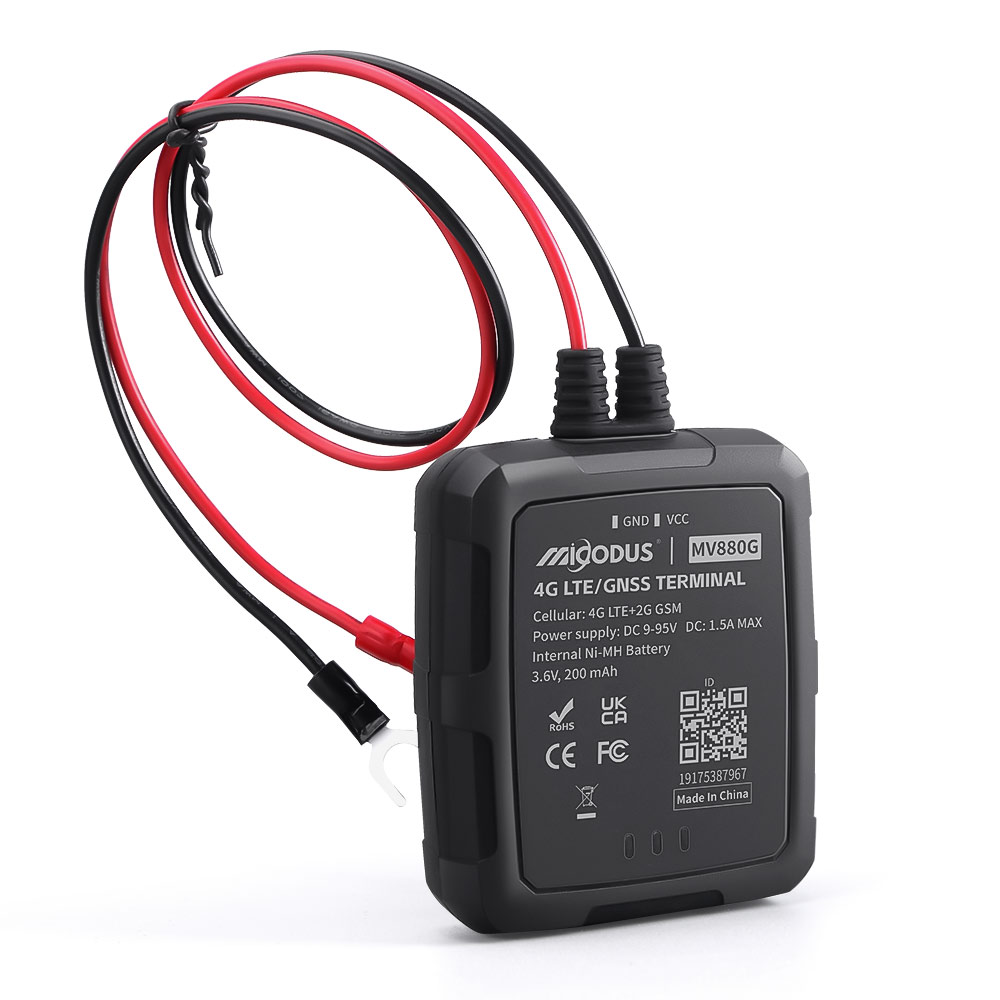

4G Vehicle GNSS Tracker – Rugged & Easy to Install

The MV880G is a waterproof (IP67) 4G tracker with GPS+GLONASS+BDS+AGPS for ±1.5m accuracy. Its key edges are an explosion-proof battery for safer, longer operation and easy installation with simple wiring—no complex setup needed. It also offers a 9-95V wide voltage range and 720-piece blind-area data storage, plus vibration, power-disconnect, and low-voltage alarms. Ideal for cars, trucks, and motorcycles.

Product Features

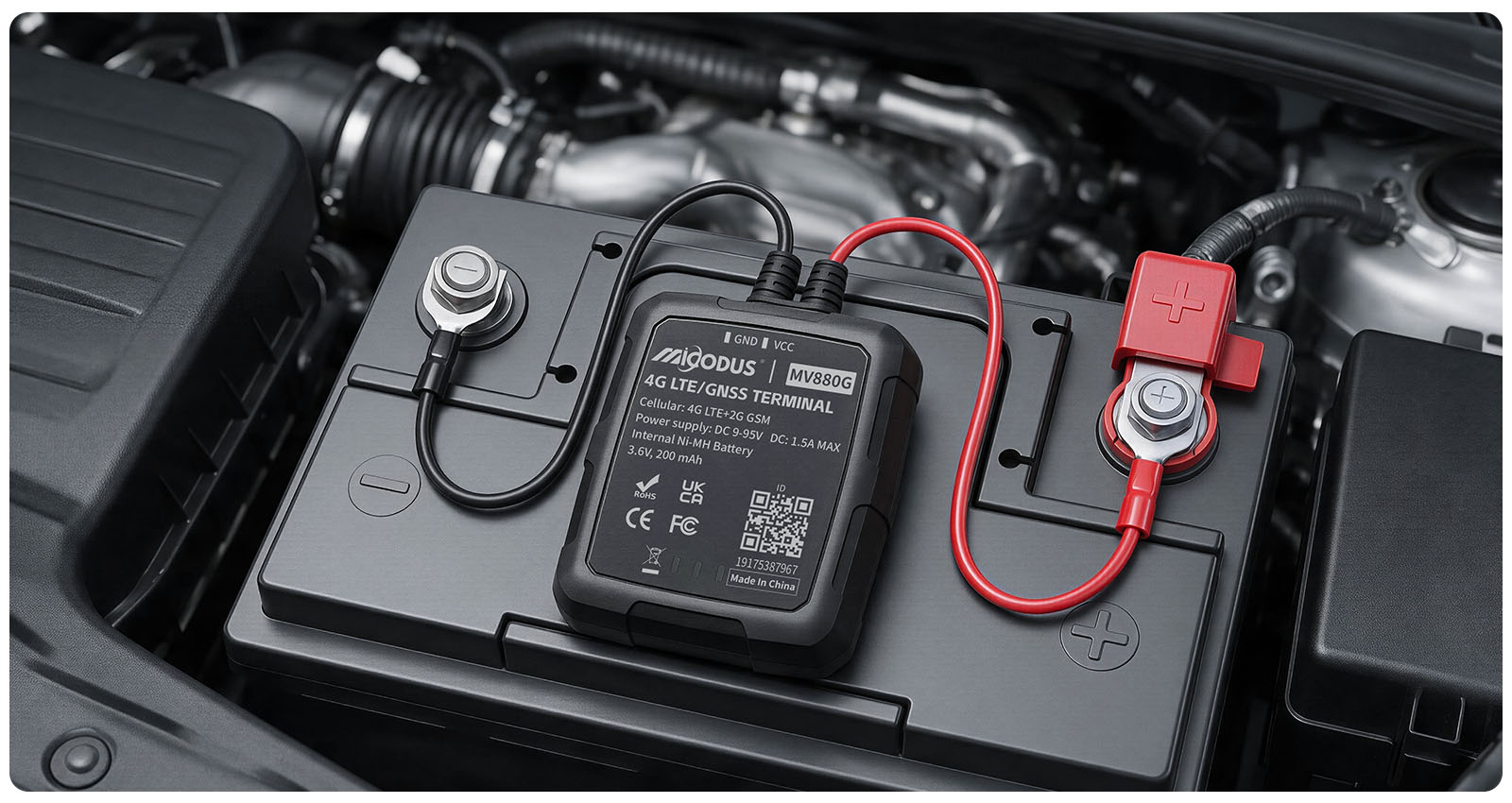

Ultra-easy Installation

Simple setup, no professional tools required, lowering installation costs.
Explosion-proof Battery

Built-in high-temp & explosion-proof battery for safer mounting on car battery.
35x35x4mm Antenna

Larger antenna captures more satellite signals for precise positioning.
Bluetooth APN Setup

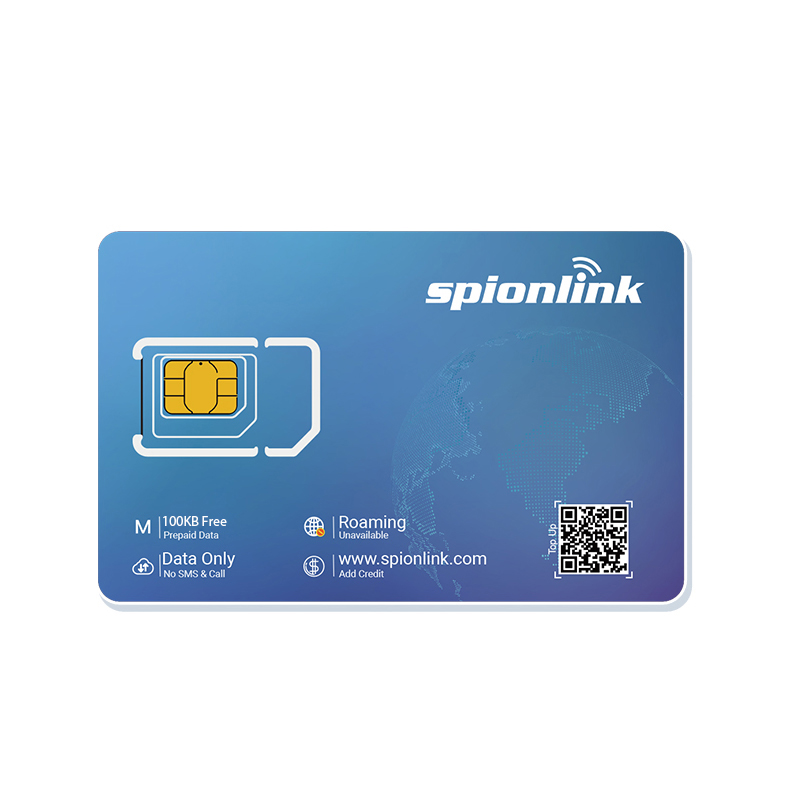

Configure APN via Bluetooth, no SMS or cable required, supports data-only SIM.
IP67 Waterproof

Withstand temporary immersion, adapt to harsh outdoor environments.

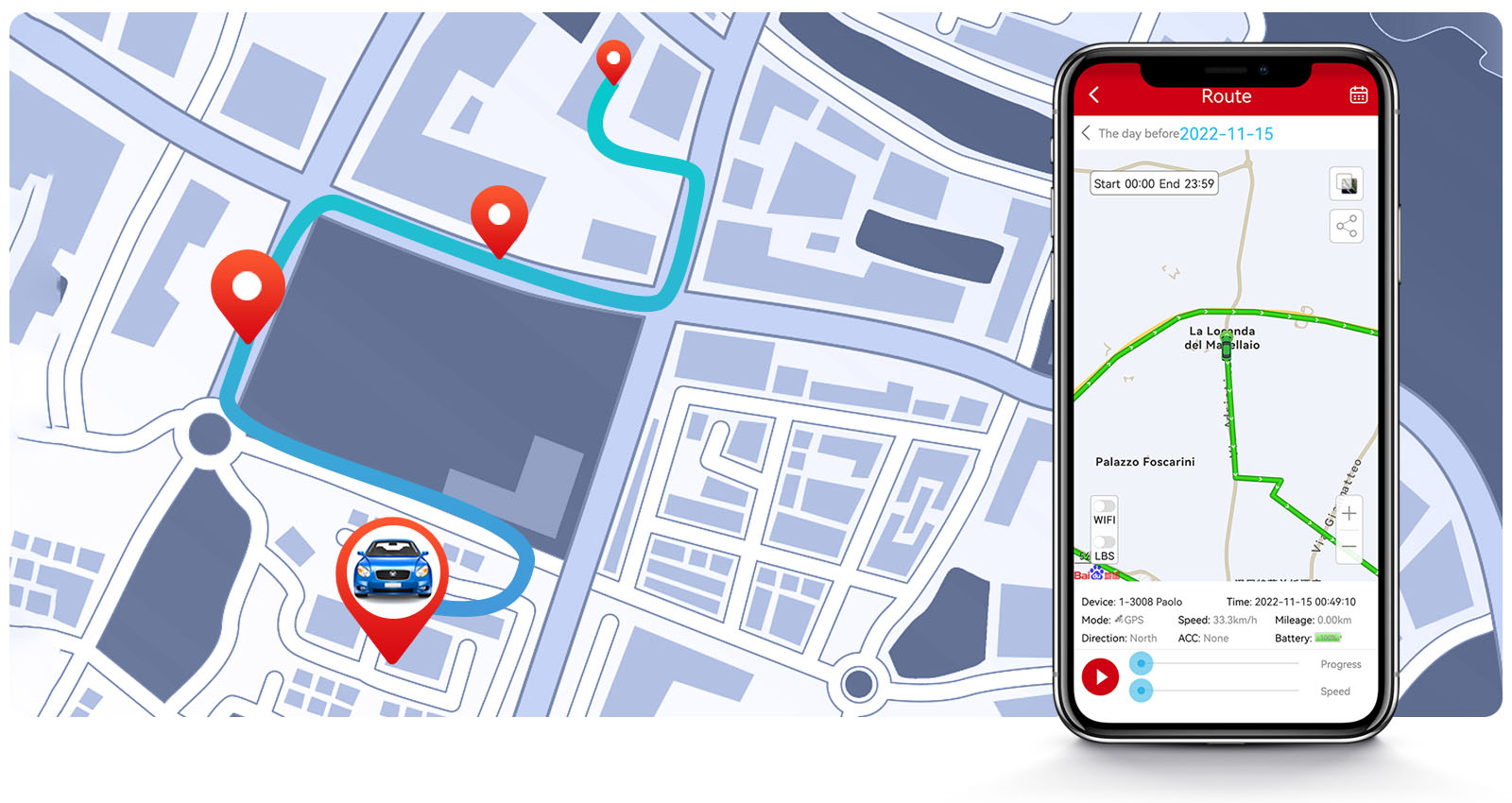

Trajectory Playback

Replay 180 days route to trace asset paths and secure your assets.
Geo-fence

Get alerts for unauthorized zone crossings, restrict vehicle activity range.

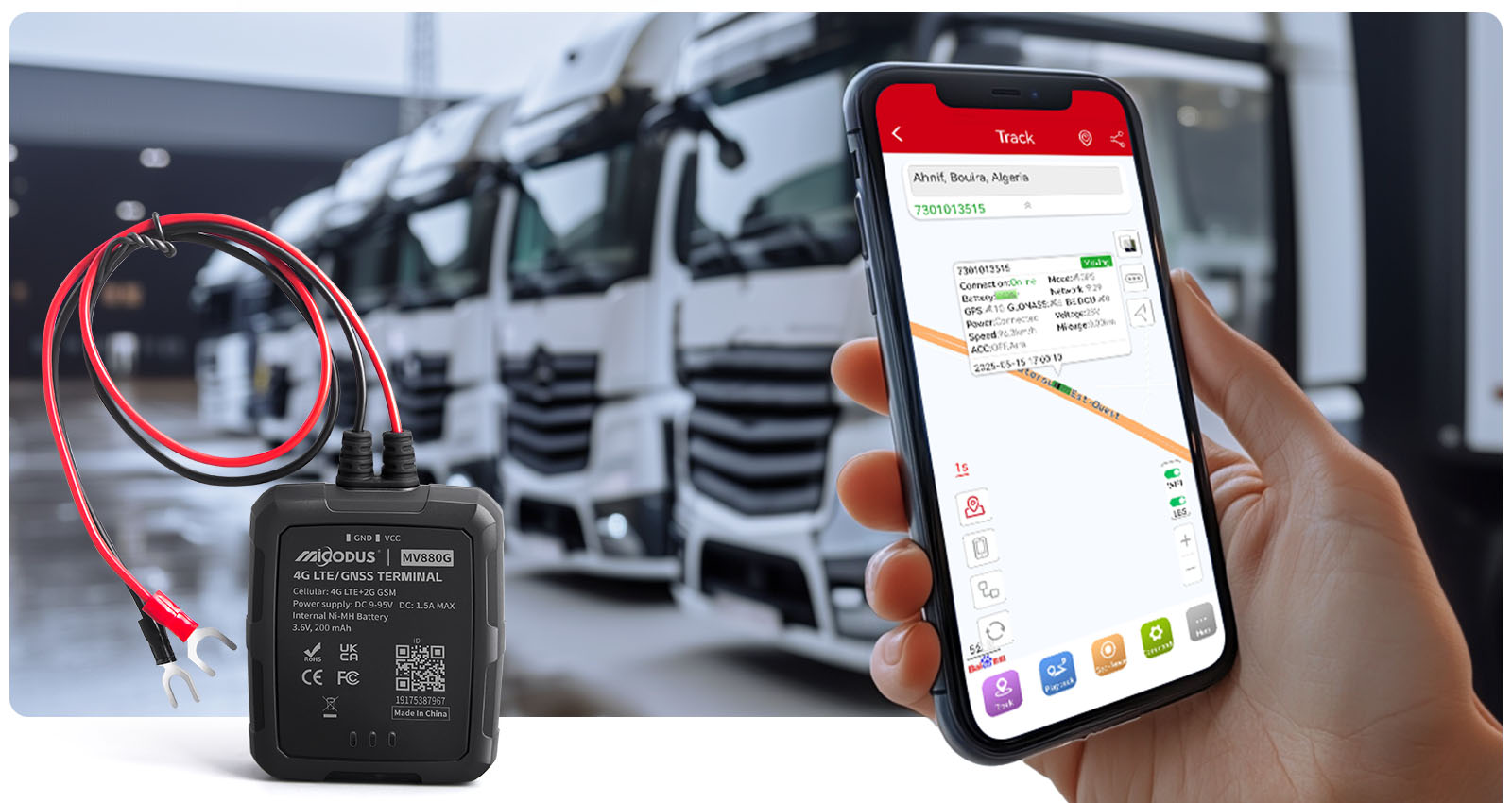

Real-time Tracking

Monitor your asset location live, keep full control all the time.
Overspeed Alarm

Trigger alerts when speed exceeds limit, manage reckless driving risks.
Low Voltage Alarm

Monitor car battery voltage, alert you early to avoid vehicle breakdown.
GNSS+LBS Positioning

Precise satellite positioning, LBS backup when satellite signals drop.
Multiple Anti-theft Alarms

Movement, vibration and wire‑cut alarms to guard your vehicle around the clock.

Product Specifications
Key Features
Download (Manual /Catalog)

Filter

Device Param

Model	MV880G
Demension	582170mm
Weight	104.3g
Working Voltage	DC 9V - 95V
Working Temperature	-20℃ - 75℃
Working Humidity	10%-85%RH
Built-in Memory	640pcs GPS data can be stored at network blind area

GNSS

Hot/Cold Start	<1s，<32s @ Open Sky
Tracking sensitivity	-162 dBm
GPS Channels	120
GNSS Antenna	Built-in Ceramics GNSS Antenna, 35mm35mm4mm
Positioning Module Model	Beken Corporation BK1661
Positioning Type	GPS+BDS+GLONASS+LBS+AGPS
GPS Frequency	L1: 1575.42±1.023MHz
BDS Frequency	B1:1561.098±2.046MHz
Accurancy	Location accuracy: <1.5mCEP
	AGPS First positioning time< 1.5 s
	Timing accuracy: <30ns（1σ）
	Speed accuracy: <0.1m/s（1σ）

Cellular

Technology	2G GSM+4G LTE CAT1
Working Frequency	GSM: 850/900/1800/1900MHz
	LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B20/B28/B66
	LTE-TDD: B34/B38/B39/B40/B41
Cellular Antenna	Built-in, FPC
Communication Module Model	SIMCOM A7670G
Chip Bluetooth	Nations N32WB03x BLE 5.1
