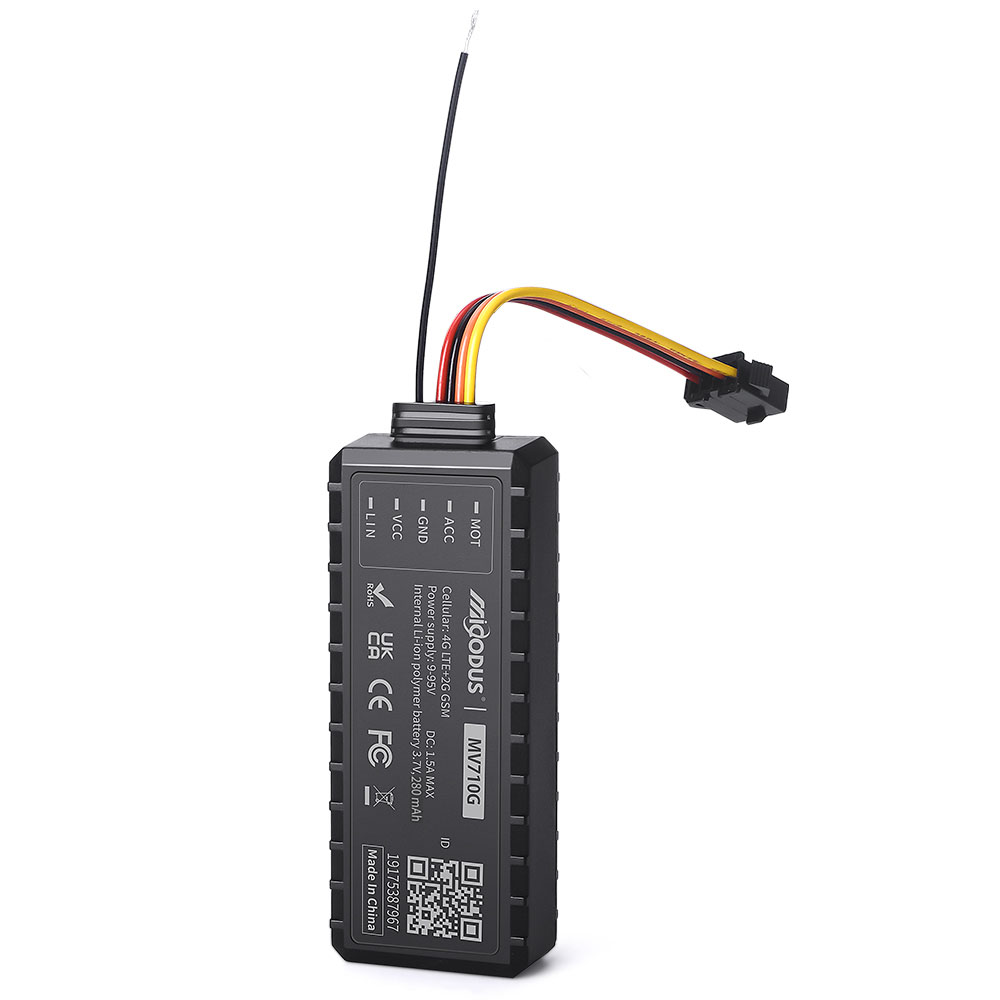

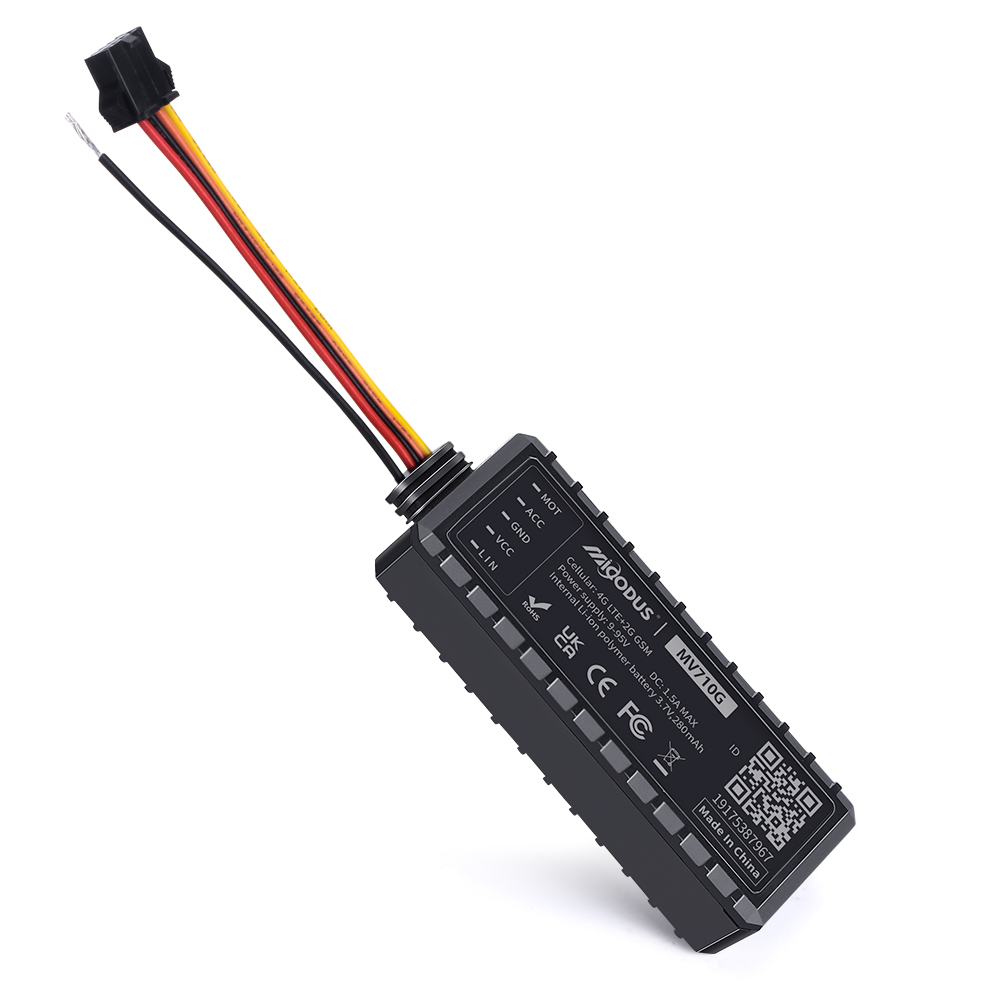

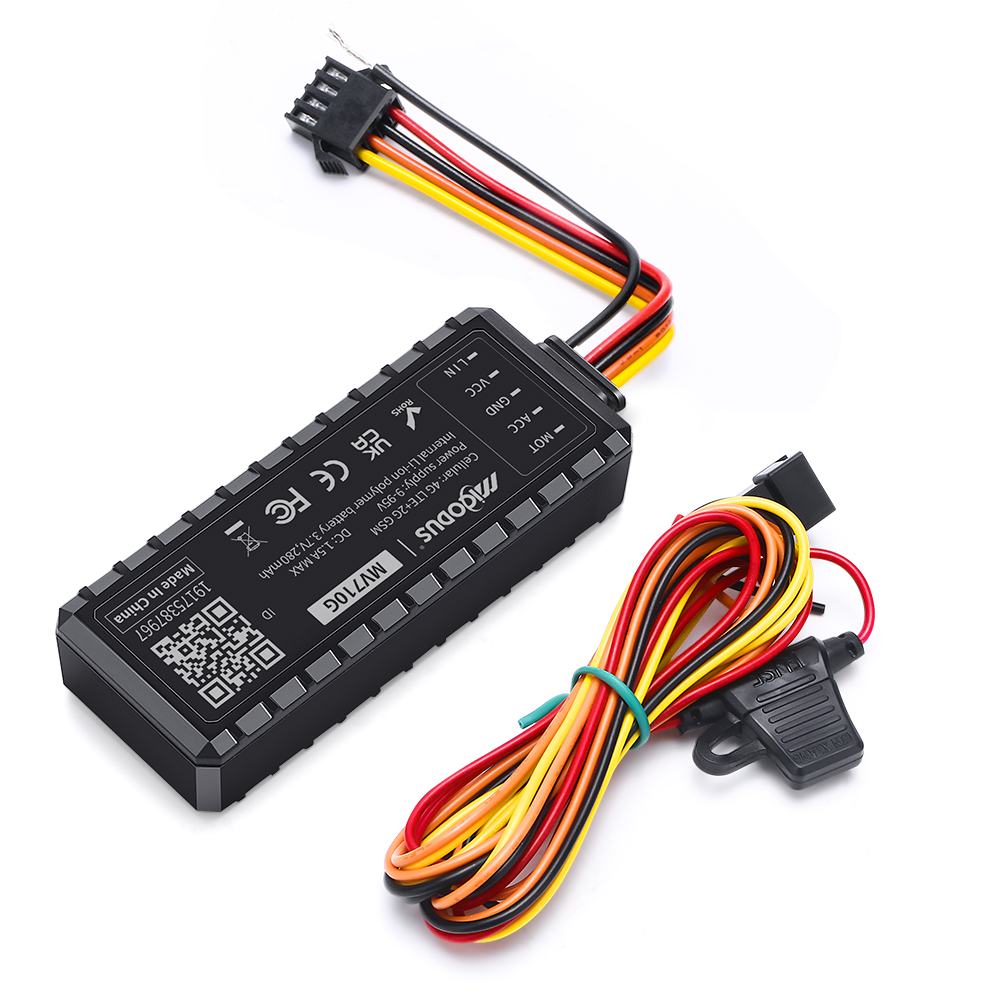

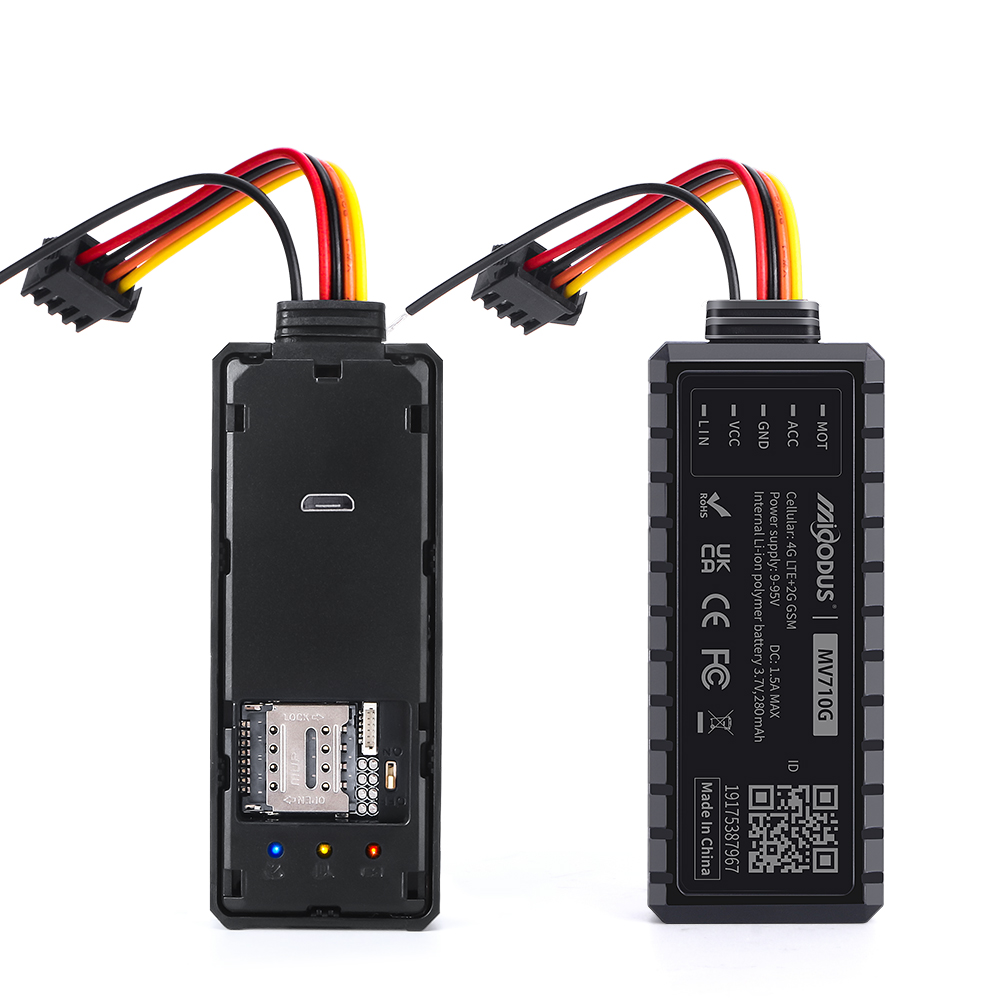

Cost-effective 4G Vehicle GNSS Tracker with Anti Jamming

The MV710G is a compact 4G LTE tracker with GPS+BDS+GLONASS for precise real-time tracking. Its key advantage is the 9-95V wide working voltage, compatible with both cars and heavy-duty vehicles—unlike most 12V-only rivals. It features remote fuel cut-off, vibration & door-open alarms, and low-voltage alerts for anti-theft protection. A built-in backup 380mAh battery ensures reliable tracking once external power disconnected. Ideal for fleet and personal vehicle security.

Product Features

Anti Jamming

Auto fuel cut if thieves use jammer nearby when you’re away, preventing vehicle theft.
Door Status Detection

Monitor and log vehicle door status to track door activity and spot unusual vehicle use.
Open Door Alarm

Receive instant alerts when your car door is opened. Detect unauthorized entry and safeguard your vehicle against theft.
ACC Status Detection

Capture vehicle ACC status for accurate activity records and asset supervision.

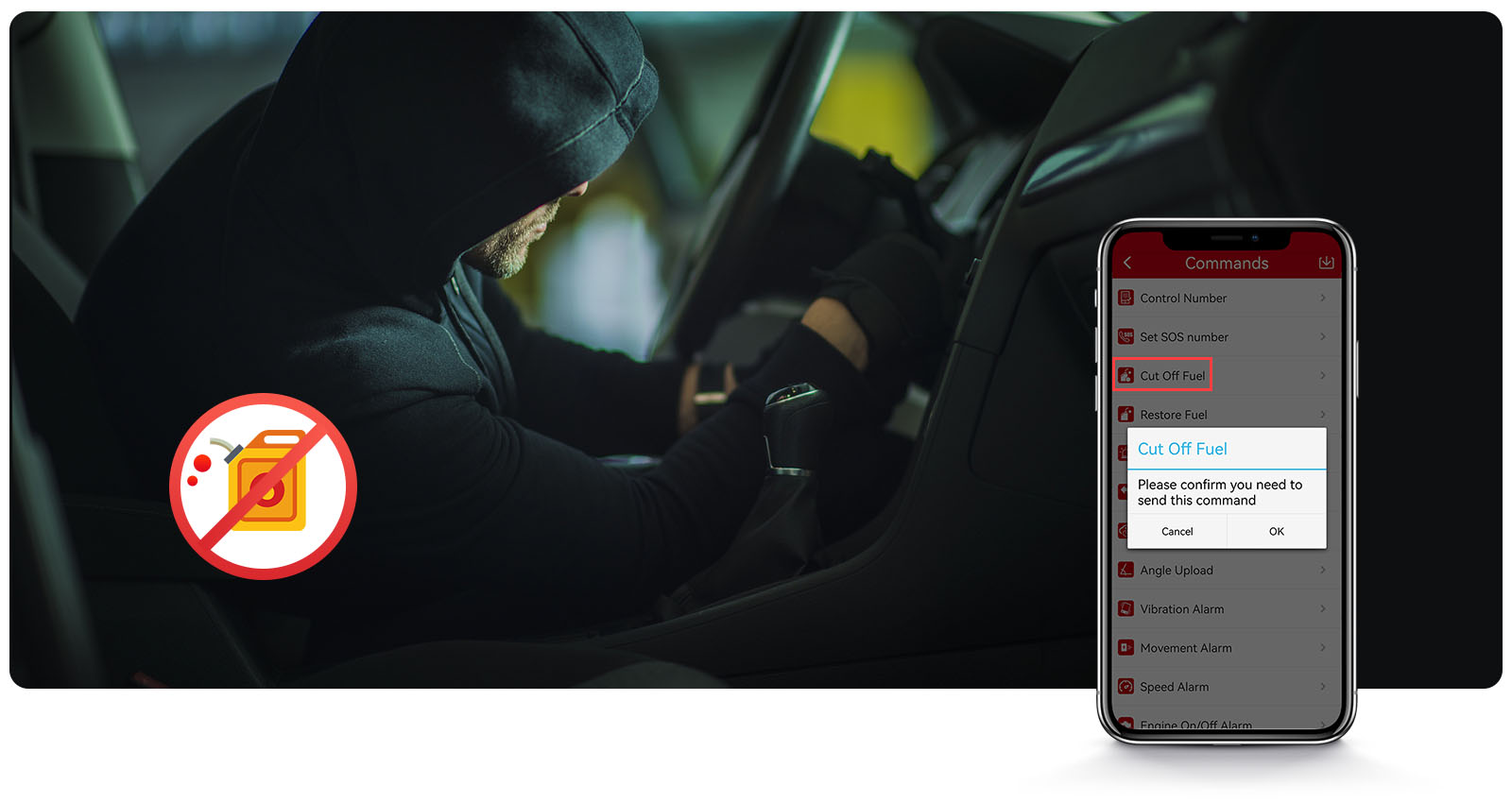

Remote Cut-off Fuel/Power

Remotely cut fuel or power for anti-theft protection and emergency safety control.
Real-time Tracking

Monitor your asset location live, keep full control all the time.
Trajectory Playback

Replay 180 days route to trace asset paths and secure your assets.
Geo-fence

Get alerts for unauthorized zone crossings, restrict vehicle activity range.
GNSS+LBS Positioning

Precise satellite positioning, LBS backup when satellite signals drop.
Low Voltage Alarm

Monitor car battery voltage, alert you early to avoid vehicle breakdown.
Overspeed Alarm

Trigger alerts when speed exceeds limit, manage reckless driving risks.

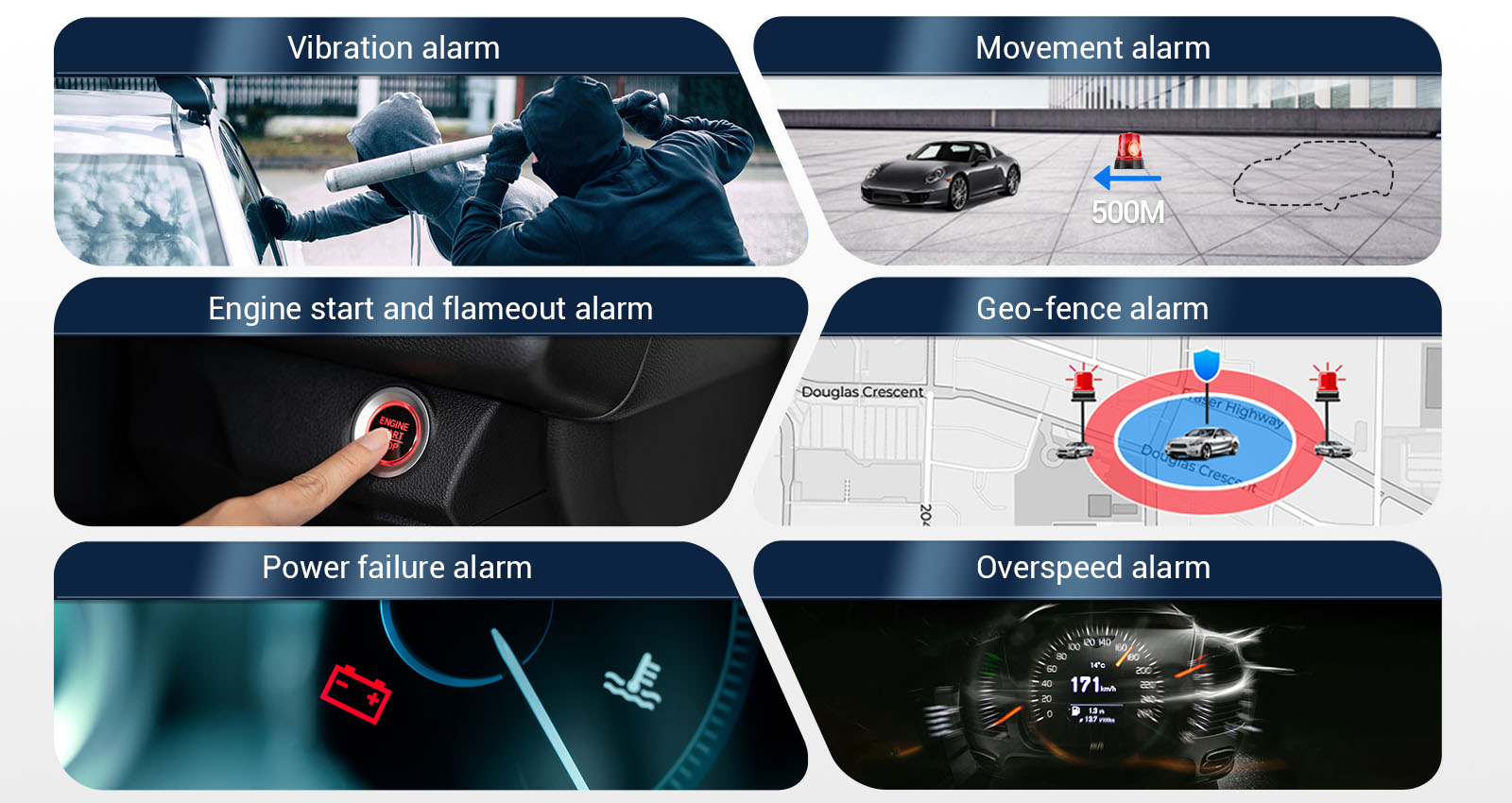

Multiple Anti-theft Alarms

Movement, vibration, wire‑cut and ignition status alarms to guard your vehicle around the clock.

Product Specifications
Key Features
Download (Manual /Catalog)

Filter

Device Param

Model	MV710G
Demension	79mm(L)33mm(W)16mm(H)
Weight	40g
Working Voltage	DC 9V - 95V
Working Temperature	-20℃ - 75℃
Working Humidity	10%-85%RH
Built-in Memory	3000pcs GPS data can be stored at network blind area

GNSS

Hot/Cold Start	<1s，<32s @ Open Sky
Tracking sensitivity	-162 dBm
GPS Channels	32
GNSS Antenna	Built in ceramic dielectric antenna, 18184mm
Positioning Type	GPS+BDS+GLONASS+LBS+AGPS
GPS Frequency	L1: 1575.42±1.023MHz
BDS Frequency	B1:1561.098±2.046MHz
Accurancy	<10m（1σ）

Cellular

Technology	2G GSM+4G LTE CAT1
Working Frequency	MV710G-SA Module: SIMCOM A7670SA GSM: 850/900/1800/1900MHz LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B28/B66
Working Frequency	MV710G-EU Module: SIMCOM A7670E GSM: 900/1800MHz LTE-FDD: B1/B3/B5/B7/B8/B20
Cellular Antenna	Built-in, FPC

Power

Battery	3.7V 280mAh Lion Polymer battery
Work Current	12V/average 35mA
Sleep Current	12V/average 10mA

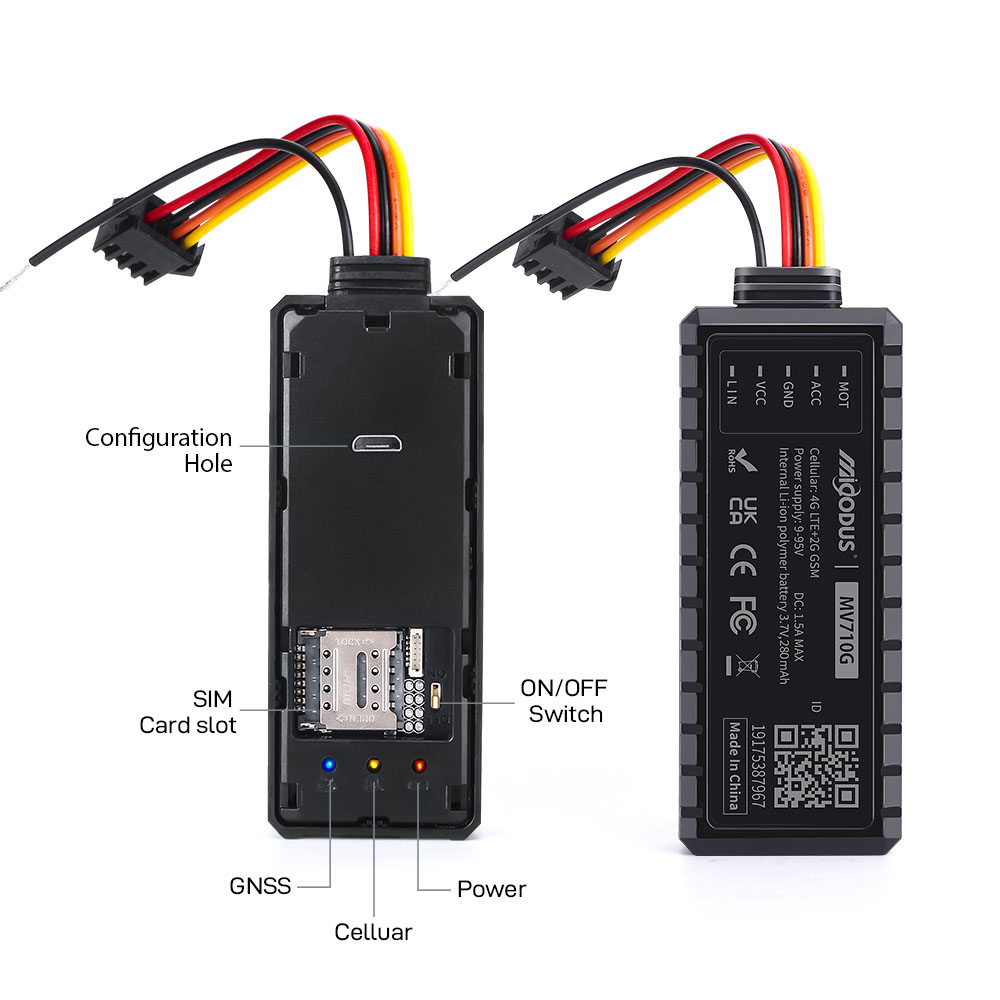

Interface

Digital Input	1 x digital input for door sensor
Digital Input	1 x digital input for ignition detection
Digital Output	1 x digital output for cut off oil
SIM Card	Micro SIM Card
Firmware Upgrade	OTA & UART Serial Upgrade
LED indication	GSM LED
	Charging LED
	GPS LED
