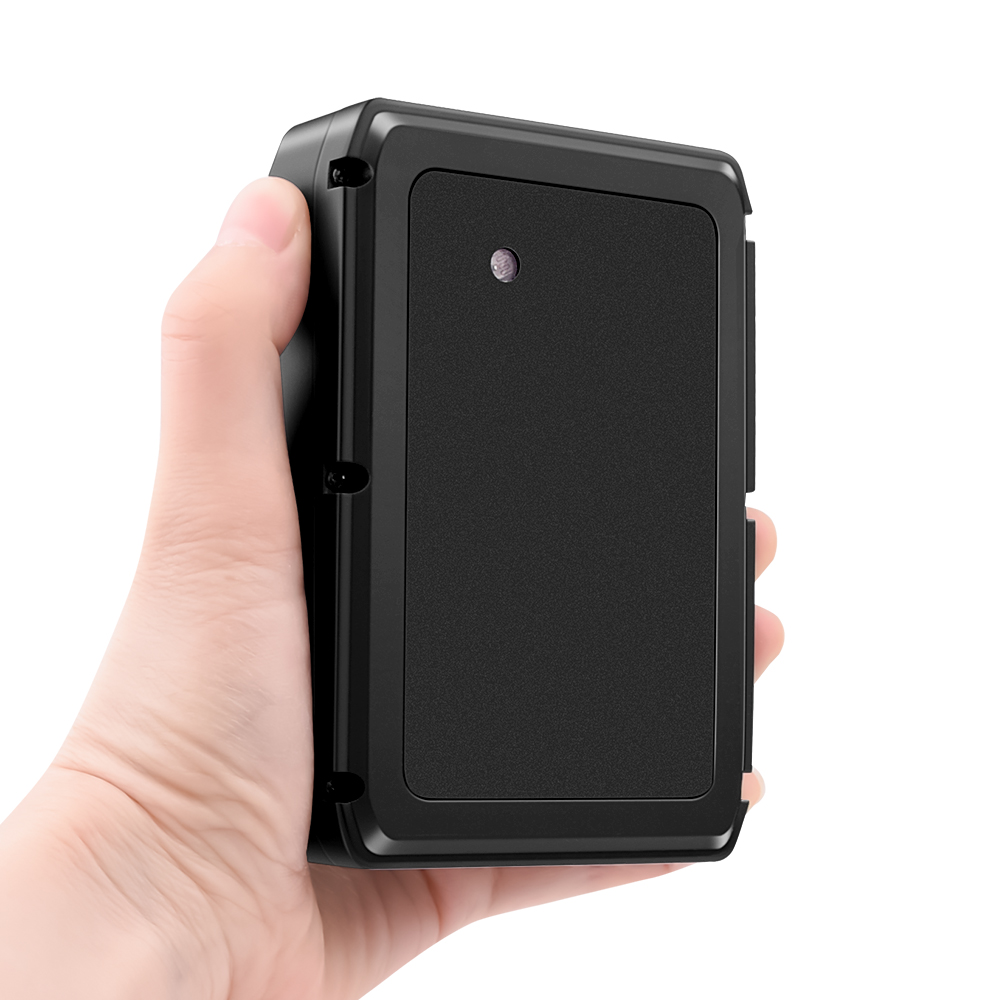

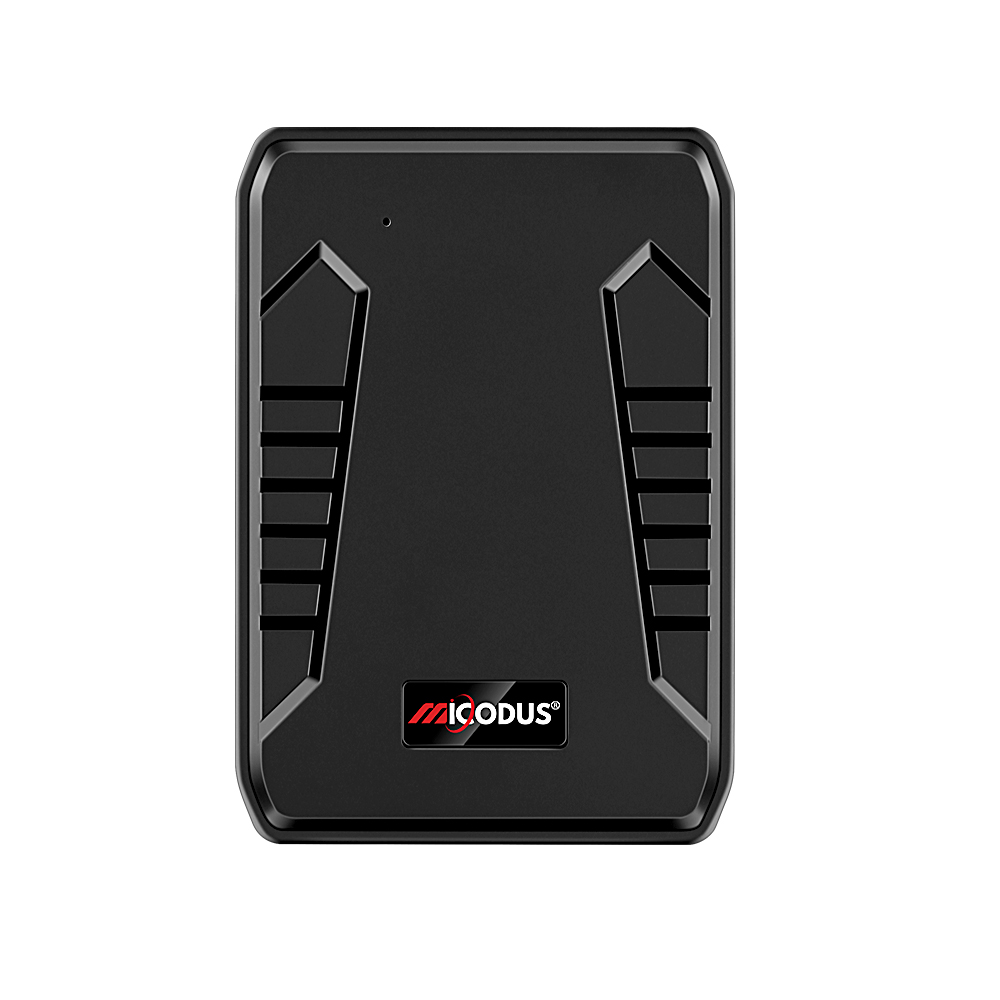

10000mAh Ultra-Long Battery Magnetic 4G Asset GNSS Tracker

The ML808G is a 4G portable GNSS tracker. Its built‑in magnet enables quick mounting on ferrous objects for flexible field deployment. Remote voice monitoring helps users obtain real‑time on‑site information. The huge 10000mAh battery delivers up to 60‑day standby to support long‑term unattended asset tracking tasks.

Product Features

Remote Voice Monitoring

Remotely listen to onsite sounds, confirm safety around tracked assets.

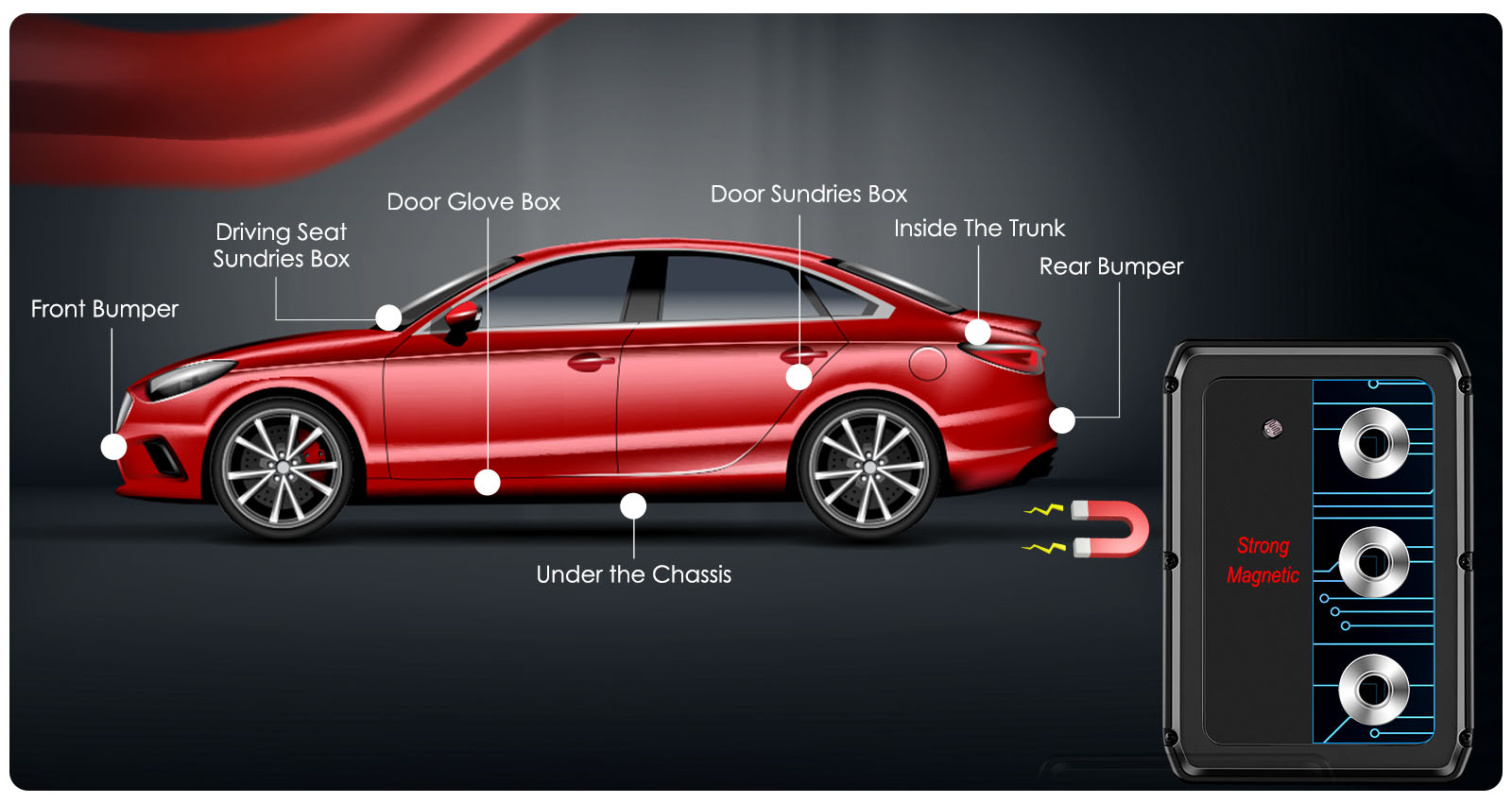

Strong Magnetic

Powerful magnet for easy attachment and removal without drilling.
IP65 Waterproof

Resist splashing water and dust, stable for outdoor use.
10000mah Large Battery

Up to 60 days standby, reduce frequent charging and lower maintenance trouble.
Trajectory Playback

Replay 180 days route to trace asset paths and secure your assets.
Geo-fence

Get alerts for unauthorized zone crossings, restrict vehicle activity range.
Real-time Tracking

Monitor your asset location live, keep full control all the time.
GNSS+LBS Positioning

Precise satellite positioning, LBS backup when satellite signals drop.
Teardown Alarm

Sends alert on disassembly, guarding against tampering or accidental detachment.
Movement Alarm

Get alerted the moment your vehicle moves, perfect for parking security.
Vibration Alarm

Trigger alerts on abnormal vibration, prevent vehicle tampering.
Overspeed Alarm

Trigger alerts when speed exceeds limit, manage reckless driving risks.

Product Specifications
Key Features
Download (Manual /Catalog)

Filter

Device Param

Model	ML808G

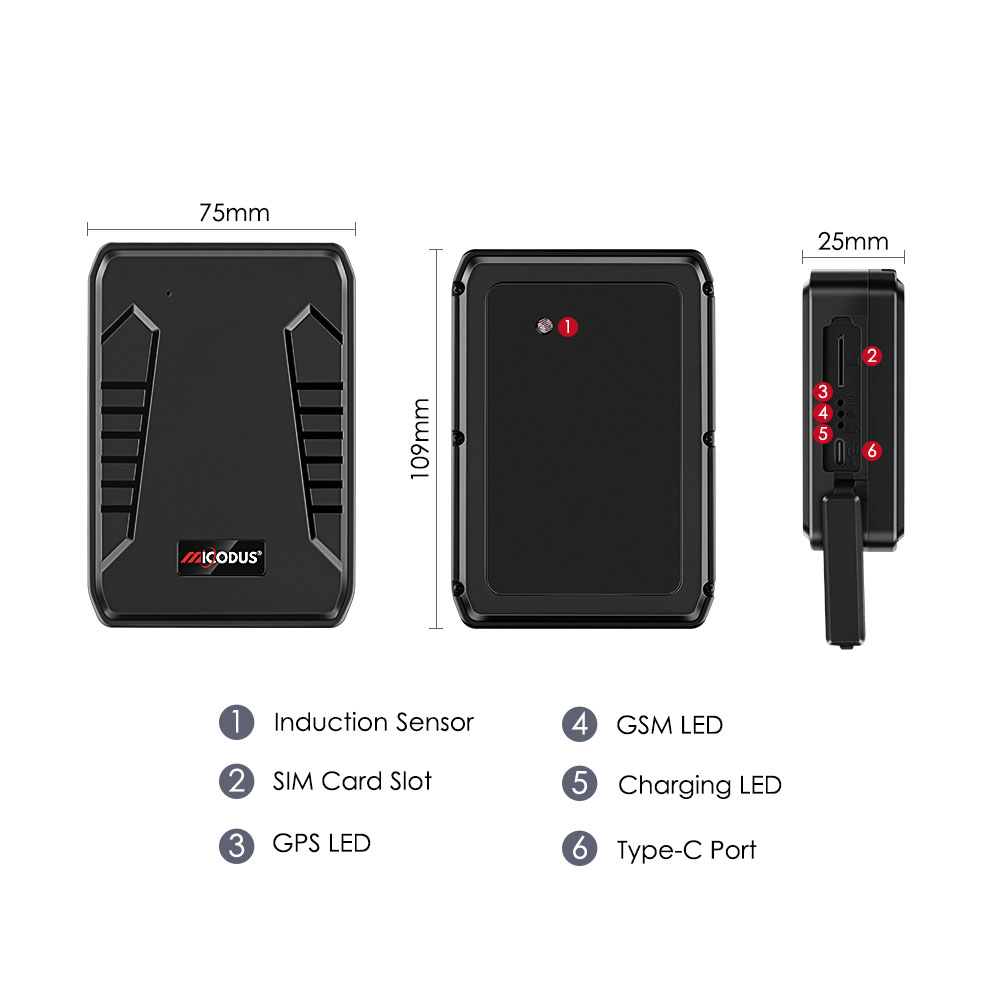

Demension	109mm(L) * 75mm(W) * 25mm(H)
Weight	320g
Working Voltage	DC 3.4V - 4.5V
Working Temperature	-20℃ - 75C℃
Working Humidity	10%-85%RH
Built-in Memory	3000pcs GPS data can be stored at network blind area

GNSS

Cold Start	≤32 Seconds
Hot Start	≤1 Second
GNSS Antenna	Built-in
Positioning Type	GPS+BEIDOU+LBS+AGPS
Tracking Sensitivity	-162dBm
GPS Channels	64
Accurancy	5-10m

Cellular

Technology	2G GSM+4G LTE CAT1
Working Frequency	ML808G-SA Module: SIMCOM A7670SA GSM: 850/900/1800/1900MHz LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B28/B66
Working Frequency	ML808G-EU Module: SIMCOM A7670E GSM: 900/1800MHz LTE-FDD: B1/B3/B5/B7/B8/B20
Cellular Antenna	Built-in

Power

Battery	3.7V 10000mAh Lion Polymer battery
Charging Time	Around 20 hours
Working Current	4V/Average 45mA
Dormant Current	4V/less than 5mA
Standby Time	Tracking Mode: Around 10-15 Days
	Power Saving Mode: Around 30 Days
	Hibernate Mode: Around 60 Days
