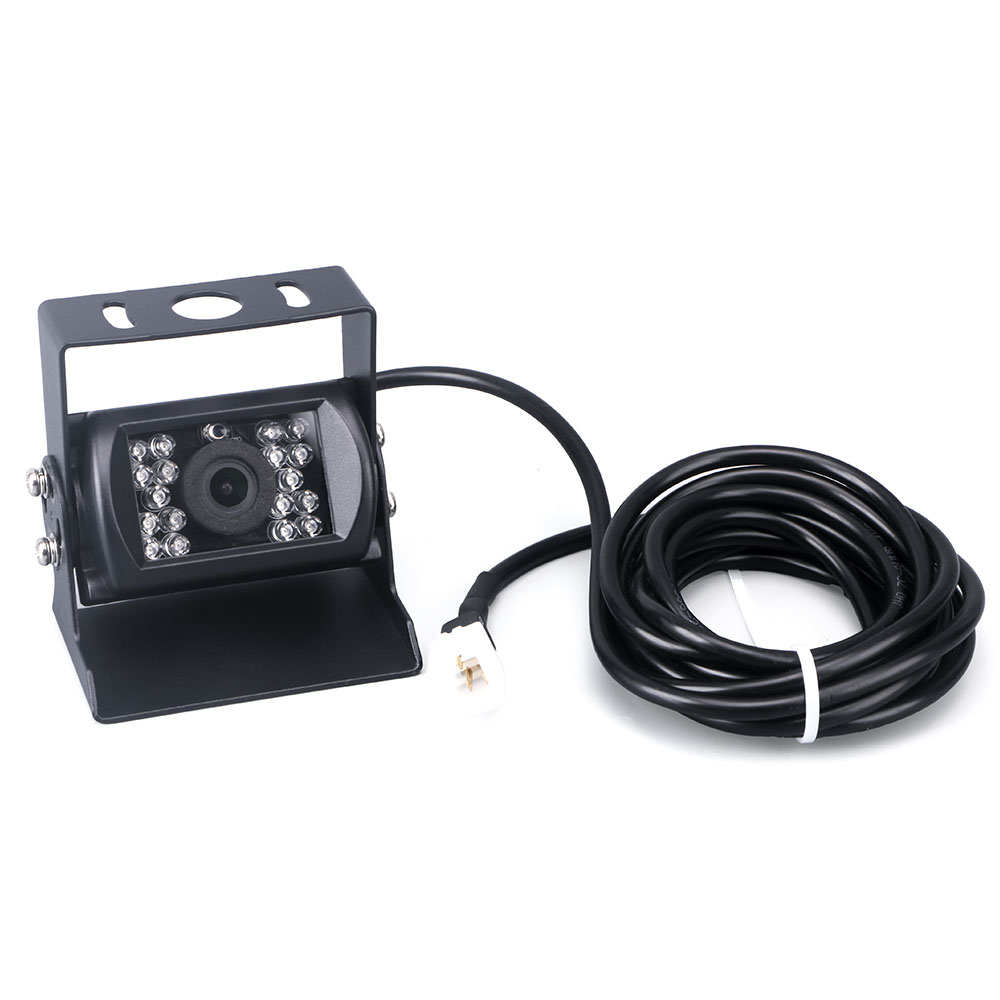

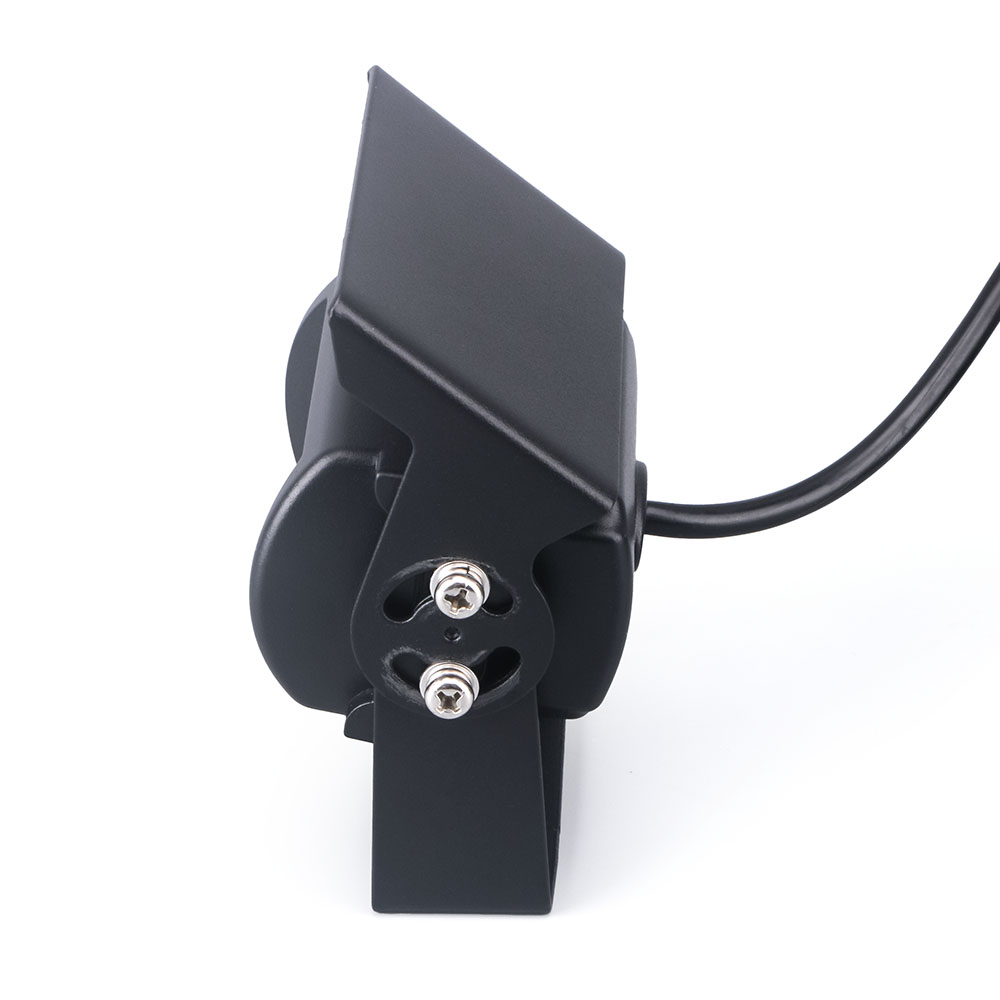

2MP IP67 Waterproof Camera for MV501G GPS Tracker, Manual & Alarm Trigger Capture
This IP67 waterproof camera is specially matched with GPS trackers for fleet monitoring. Equipped with 2MP sensor, it supports photo capture only with no video function. Users can take photos manually, or the unit will snap pictures automatically upon alarm triggers. IP67 protection guards against dust and temporary water immersion, delivering stable performance in harsh vehicle environments.
Product Features
-
IP67 Weather‑proofIP67 shell guards against rain, mud and dust for harsh outdoor mounting. -
2MP HD Image Quality2MP HD snapshots capture clear license plates and cargo details. -
Dual‑mode SnapshotTake photos manually; auto‑capture images once an alarm event activates. -
Wide Field‑of‑ViewBroad angle monitors more surroundings for trucks and commercial vehicles.
- Product Specifications
Filter
Image Sensor & Optics
|
Sensor Type
|
CMOS, 1/2.7"
|
|
Effective Pixels
|
2.0MP（1280×1080）
|
|
Pixel Size
|
3.30μm × 3.30μm
|
|
Output Format
|
Standard JPEG / M-JPEG
|
|
Signal-to-Noise Ratio
|
44dB
|
|
Frame Rate
|
30fps @ 1280×1080
|
|
Scanning Mode
|
Progressive Scan
|
|
Lens Focal Length
|
Default 90° / 3.6mm（30°–170° optional）
|
|
Monitor Distance
|
Varies by lens selected（see lens table below）
|
|
Shutter
|
Electronic Rolling Shutter
|
Image Performance
| Image Sizes | 2.0MP（1280×1080）、720p HD（1280×720）、VGA（640×480）、QVGA（320×240）、QQVGA（160×120） |
| White Balance | Auto |
| Exposure | Auto |
| Gain | Auto |
Night Vision

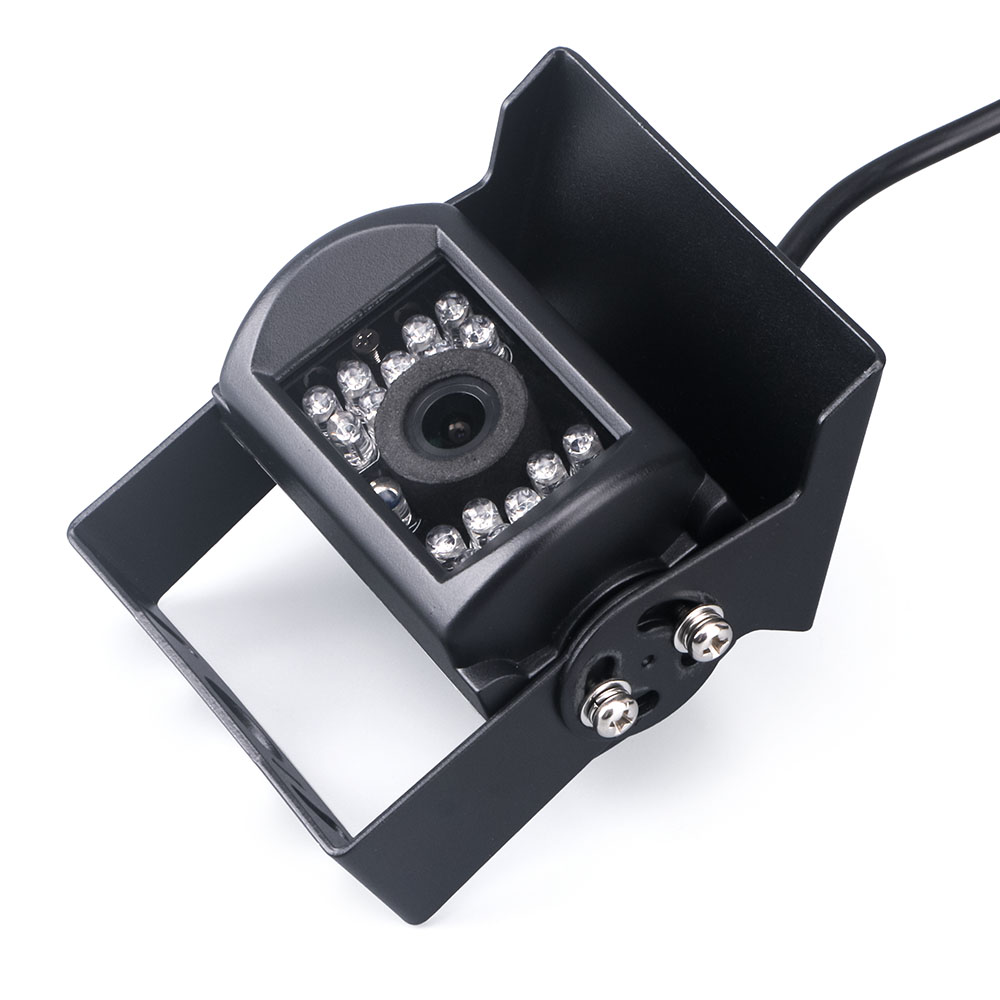

| IR Night Vision | Supported（18 IR LEDs，illumination distance approx. 3–5m） |
Interface & Communication
| Serial Baud Rate | Default 115200（9600 / 19200 / 38400 / 57600 / 230400 / 460800 / 921600 optional） |
| Interface Definition | RS232（TX, RX, GND, 5V）；RS485（A, B, GND, 5V）；TTL（TX, RX, GND, 5V） |
| Connector Type | Custom connectors per customer request, or bare wires（red-yellow-white-black / red-yellow-green-black） |
| Communication | ProtocolVC0706 Protocol |
Electrical
| Working Current | Approx. 160mA（IR off）/ Approx. 380mA（IR on） |
| Working Voltage | DC +5V |
Product Parameter
| Waterproof Rating | IP67 |

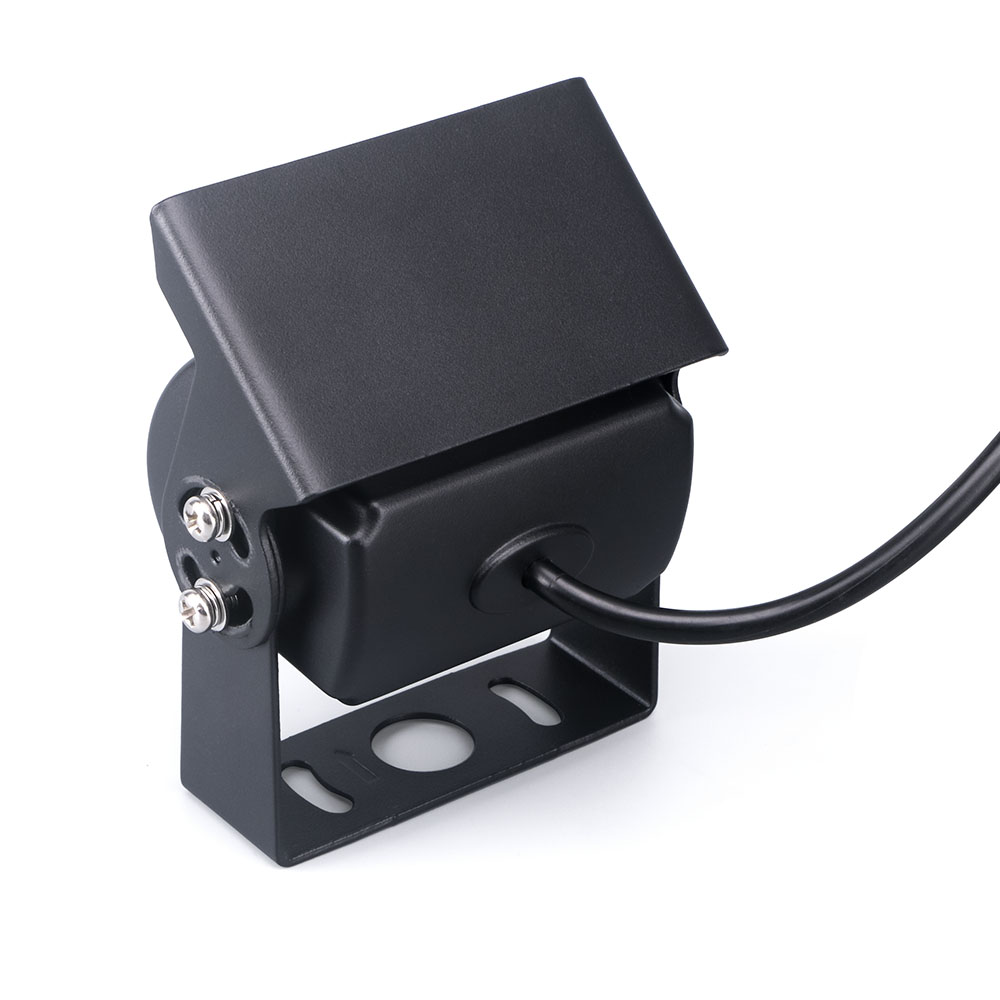

| Housing Dimension | Width 77mm；Height 94mm（with bracket）；Thickness 54mm |
| Application Fields | Image acquisition systems, environmental monitoring, industrial process control, medical equipment, video phones, security & anti-theft, vehicle GPS, image capture systems |

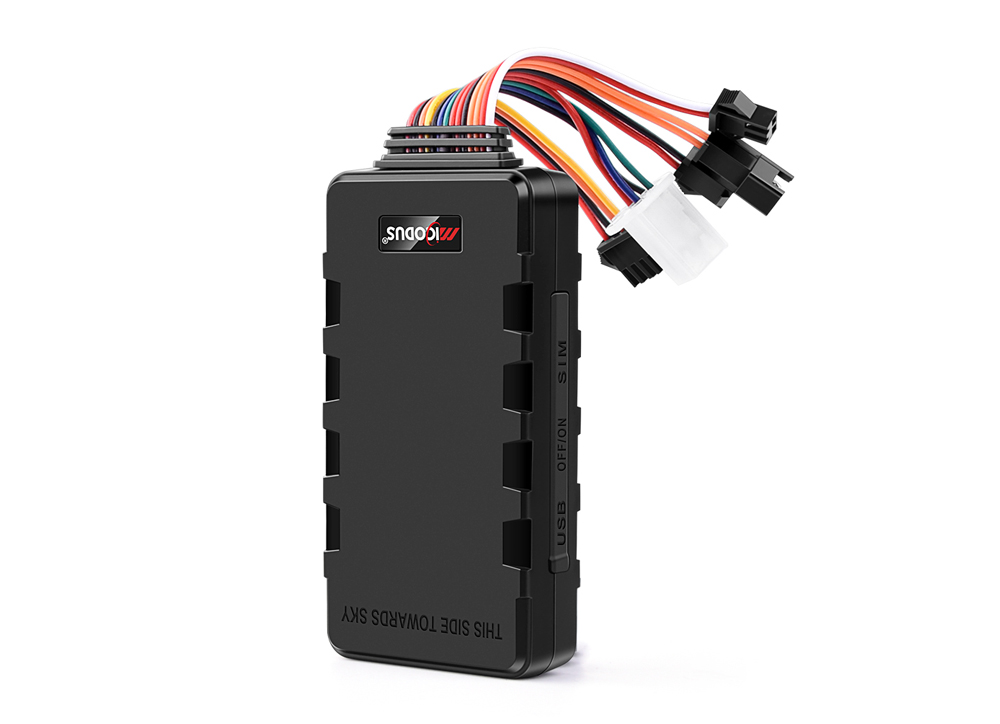

| Application GPS Tracker | MiCODUS MV501G |
