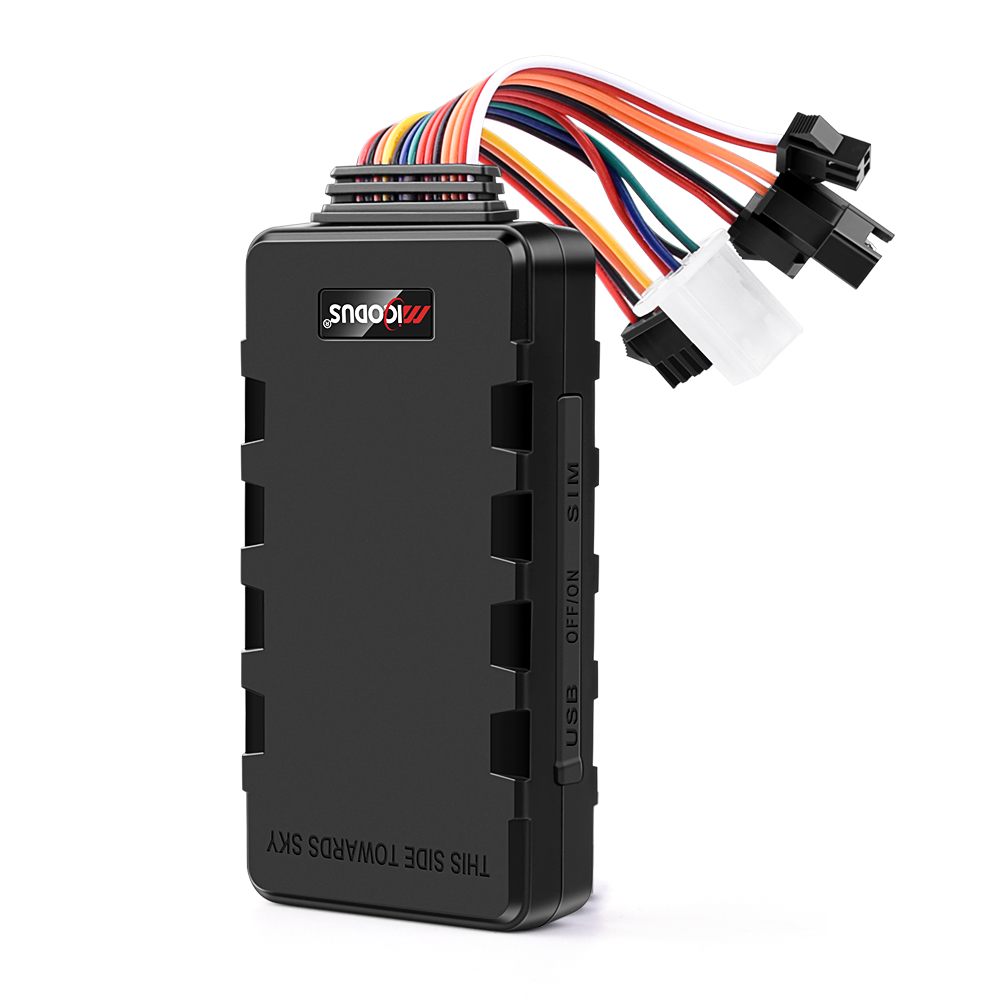

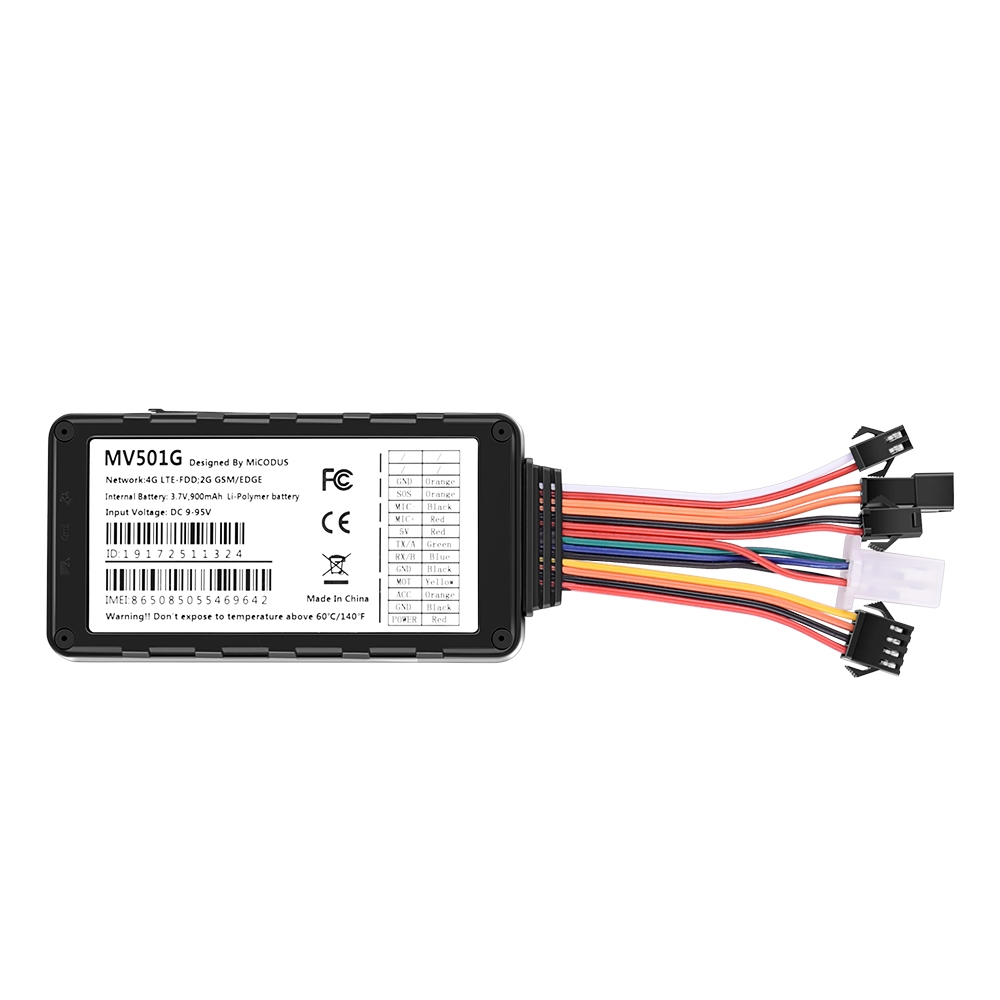

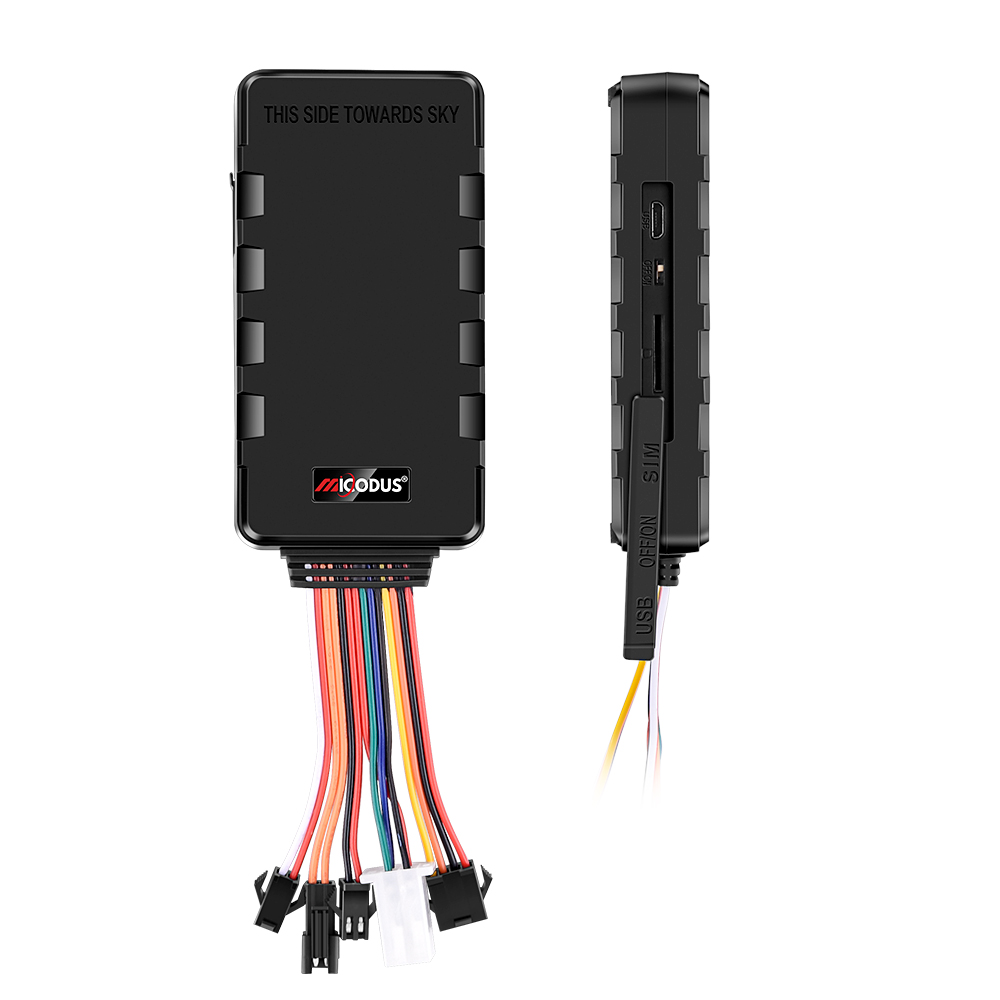

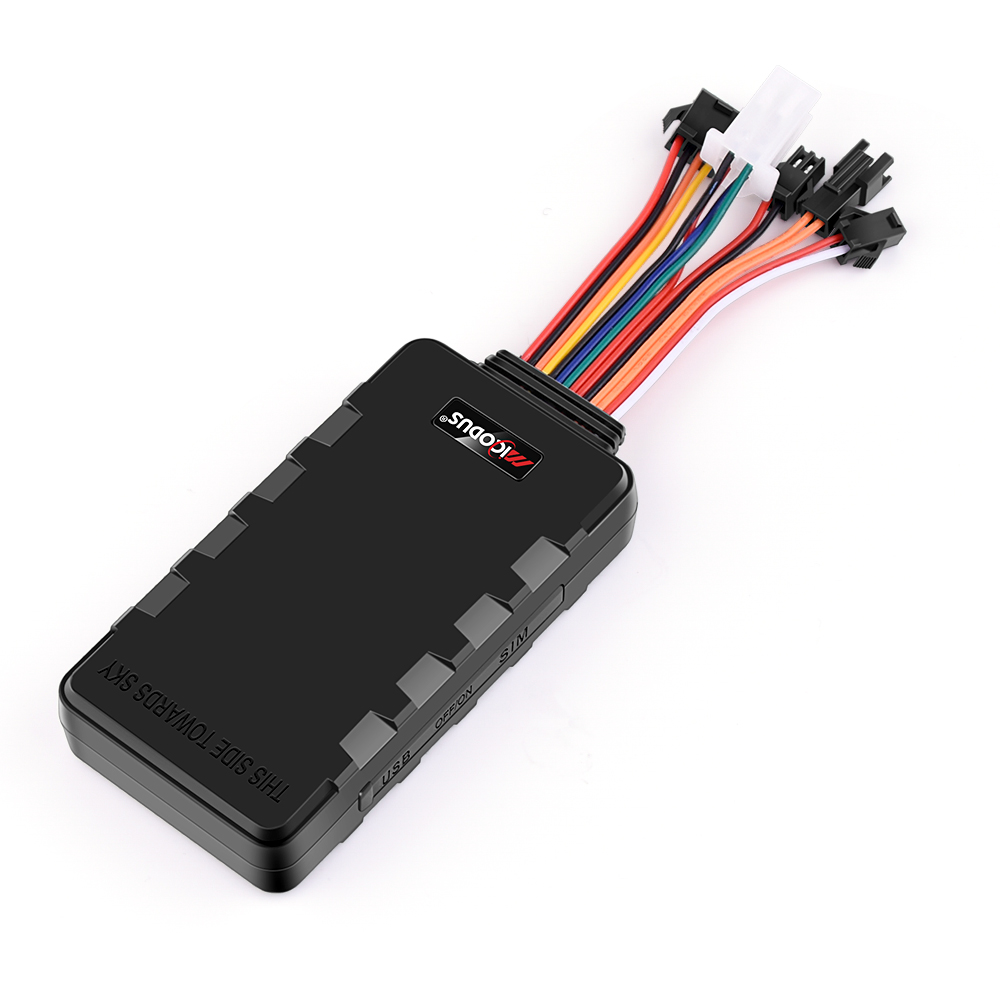

Multifunctional 4G Vehicle Tracker – Photo Capture, Fuel & Temperature Sensors

The MV501G stands out by supporting optional photo capture, fuel sensor, and temperature sensor—a rare all-in-one telematics edge over basic trackers. It offers voice monitoring, SOS emergency call, remote fuel cut-off, cut-wire alarm, and 9-95V wide voltage. With a 900mAh battery and 4G LTE tracking, it suits fleet management needing image evidence, fuel, and cold-chain oversight.

Product Features

IButton

Validate driver ID to block unauthorized use & secure assets.

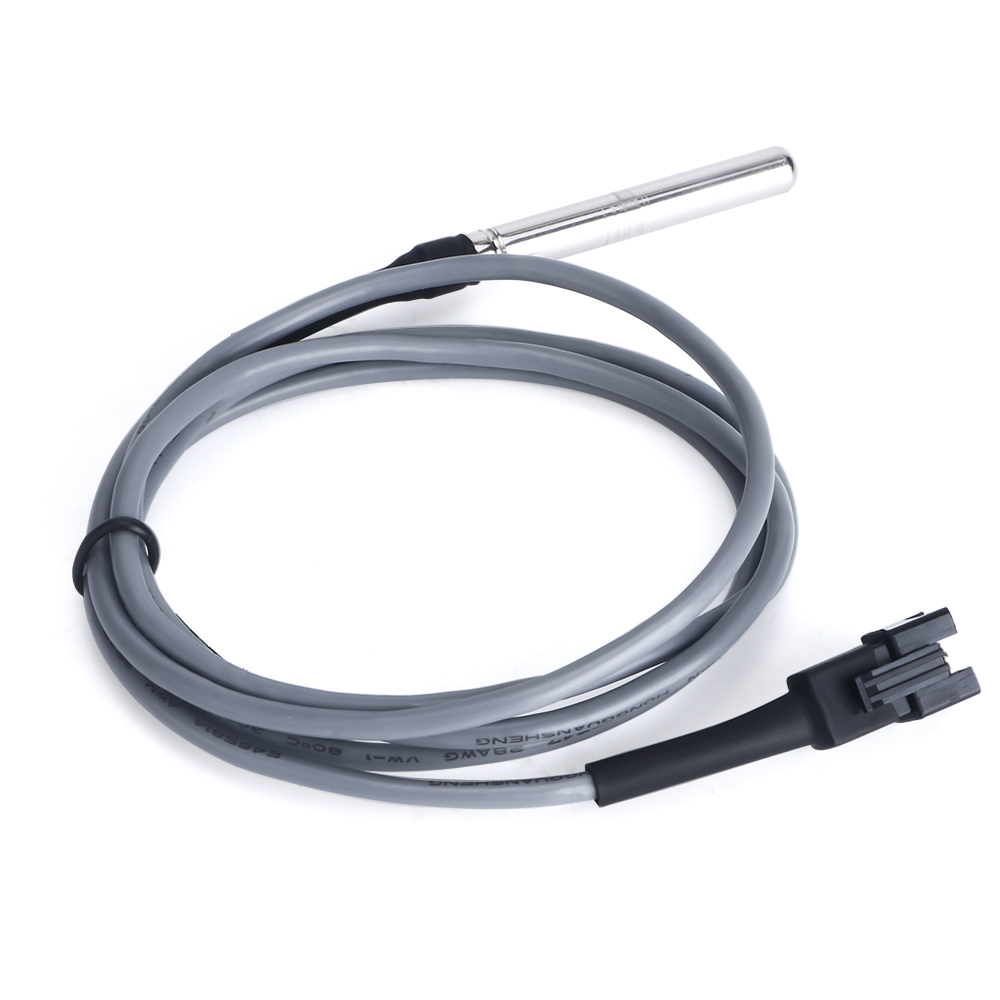

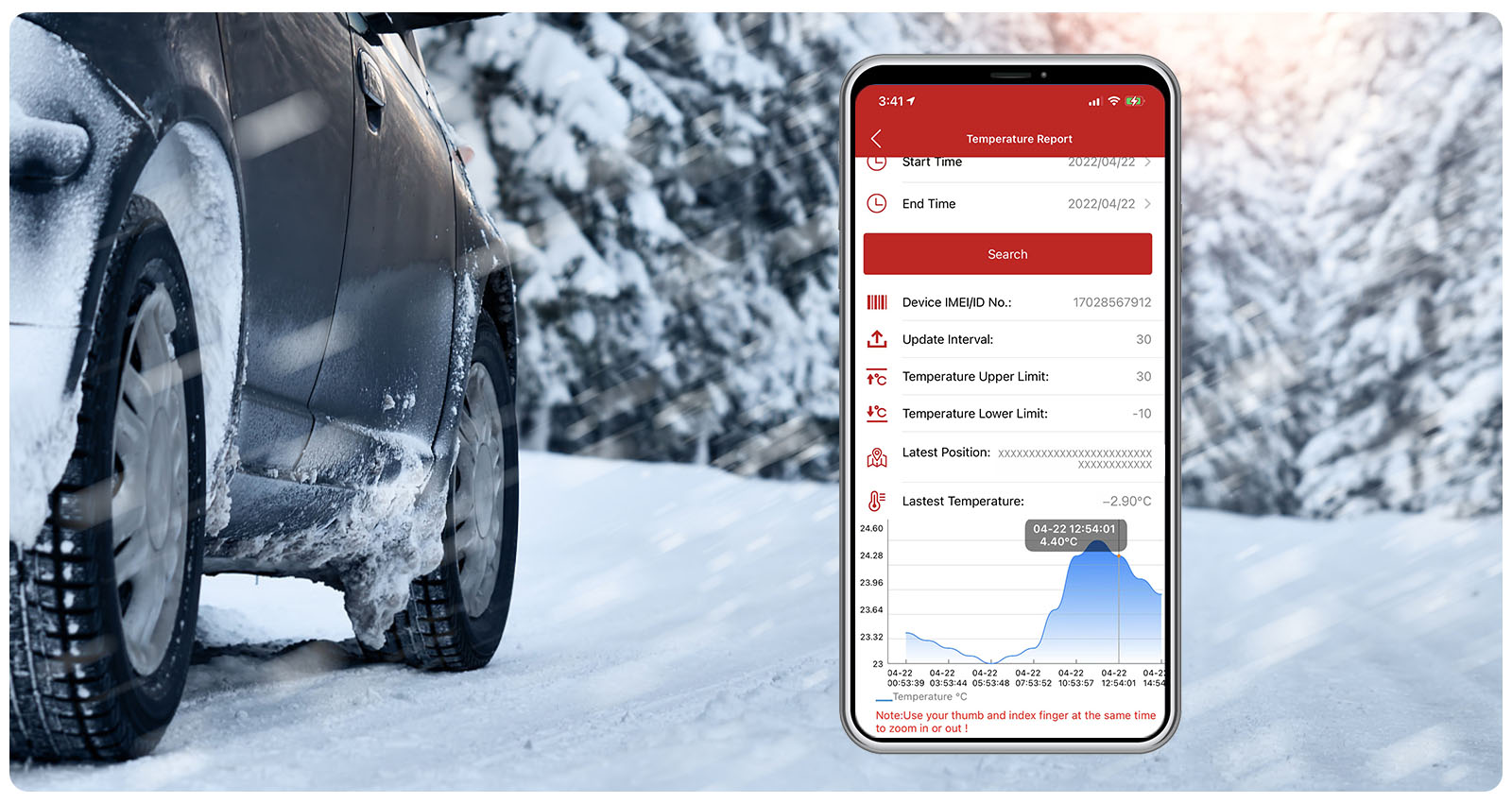

Temperature Monitoring

Track real-time temperature, secure fragile and perishable cargo in transit.

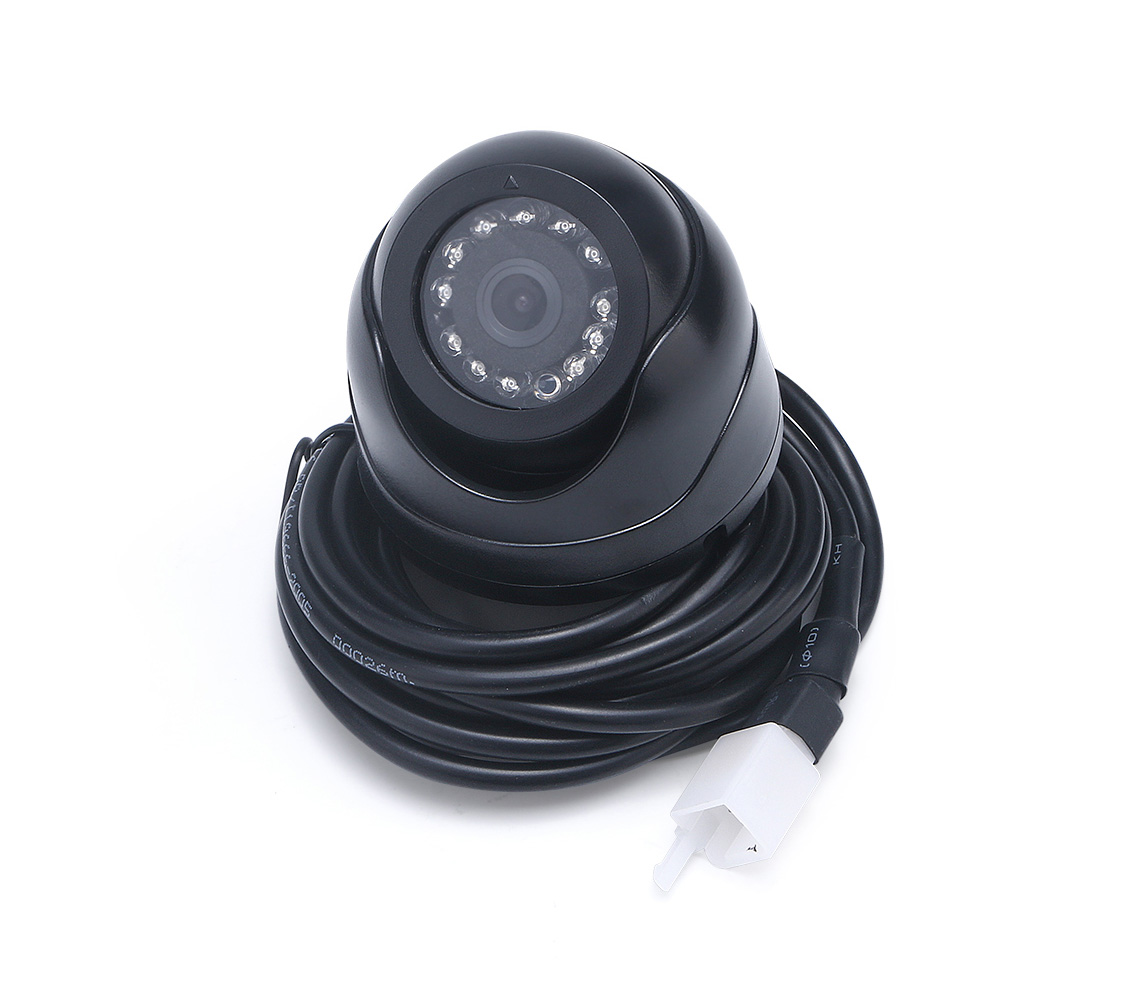

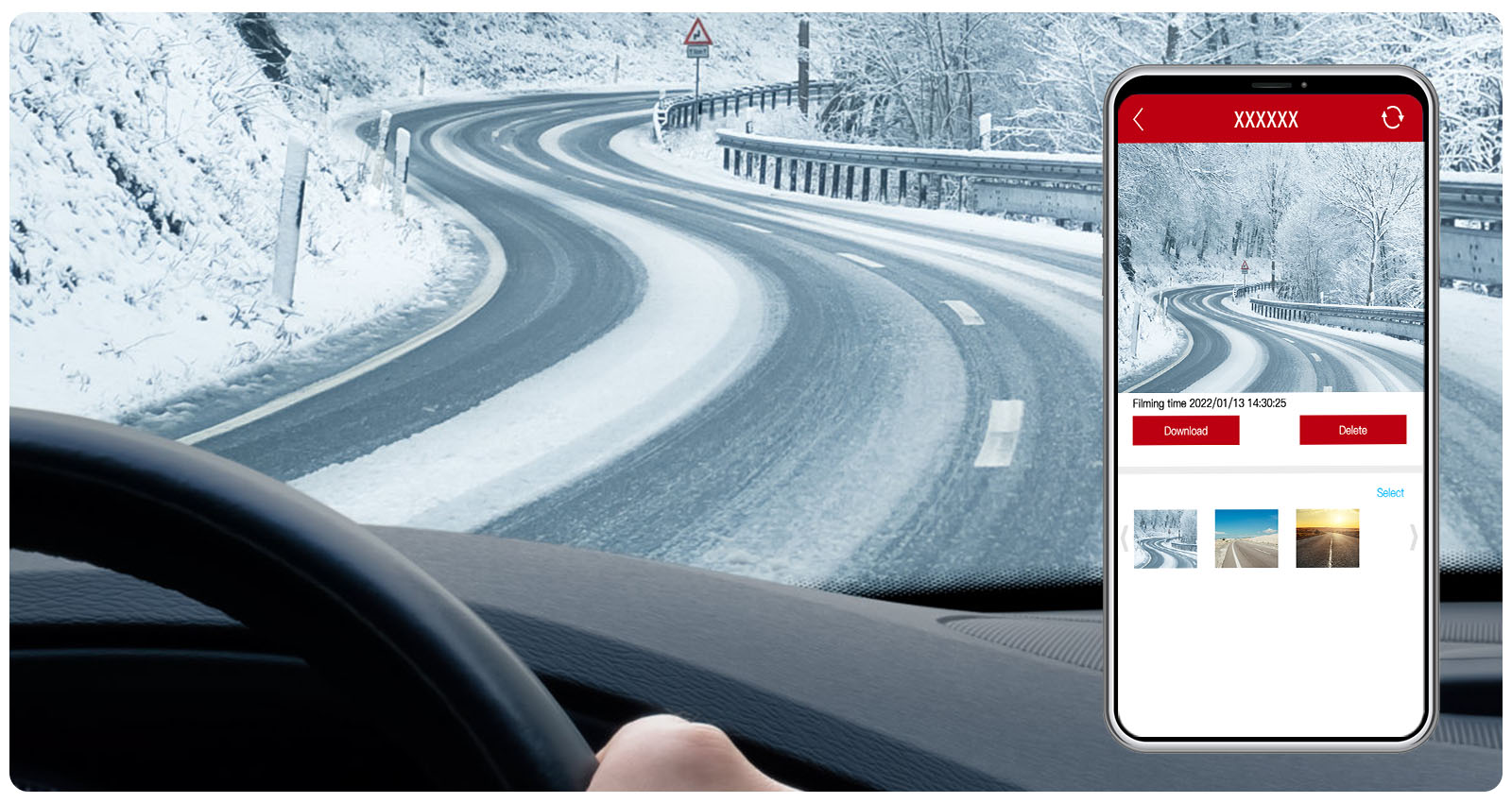

Camera Take Photos

Take photos manually or on alarm for on-site verification.

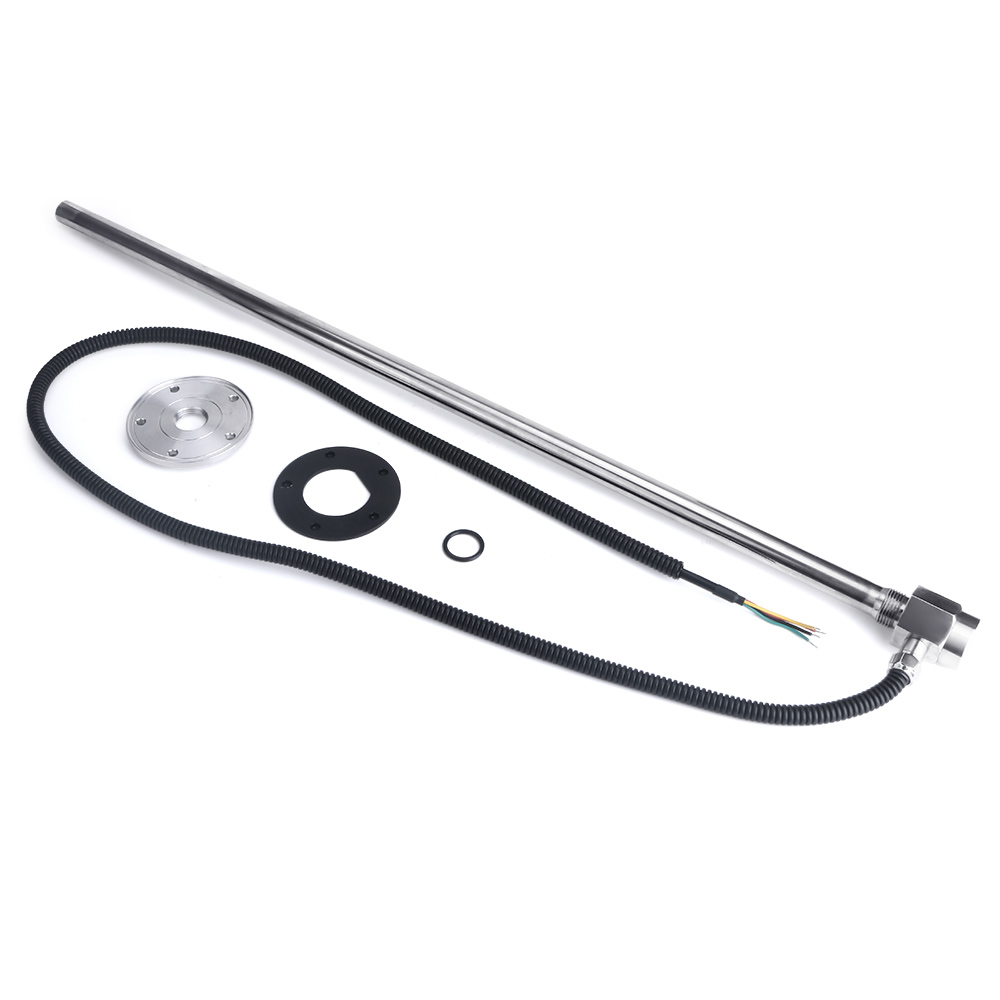

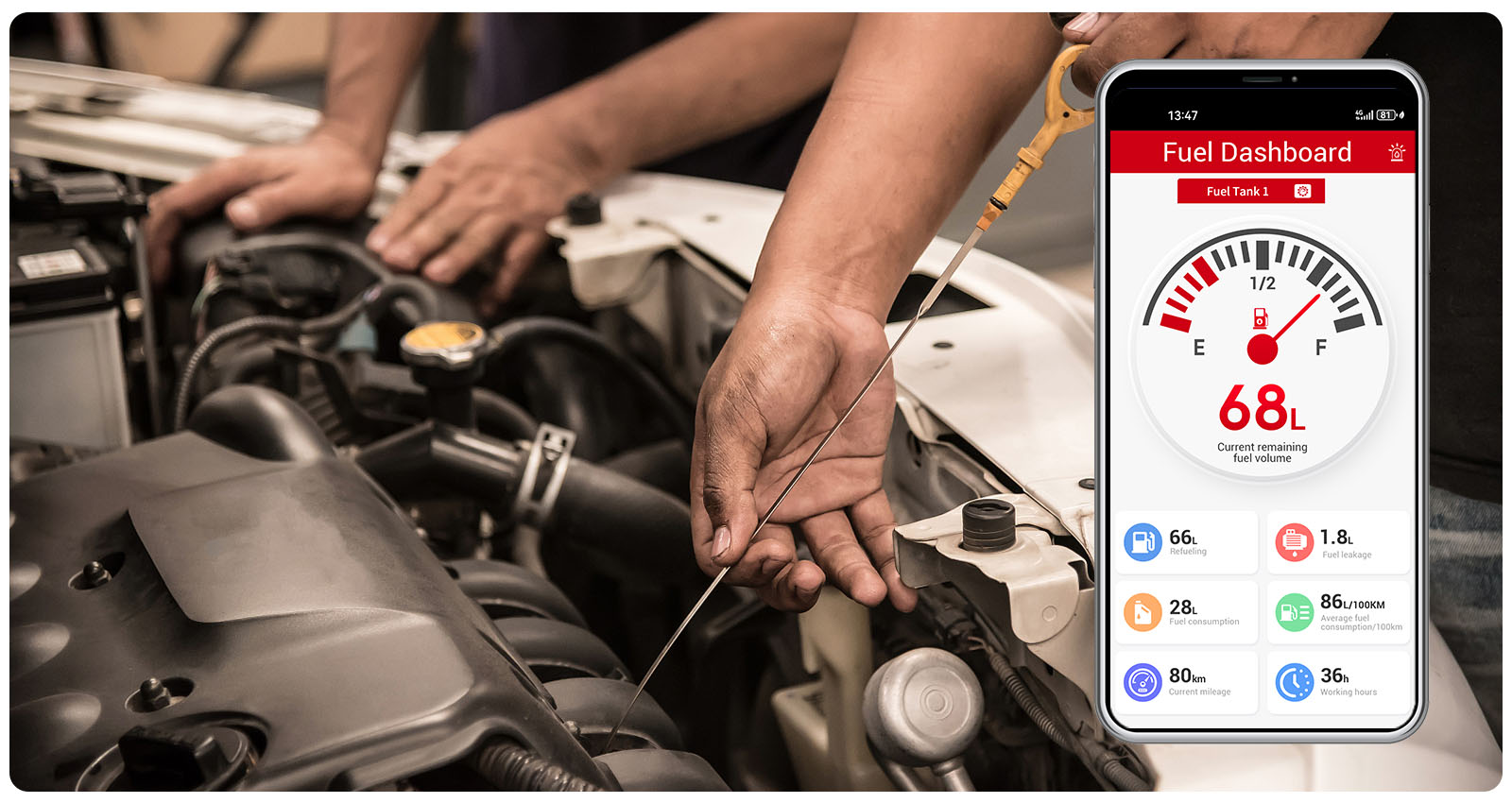

Fuel Level Sensor

Monitor fuel level to detect fuel theft and track consumption.
SOS Emergency Call

Send urgent alerts with one tap, get assistance when meet emergencies.
Remote Cut-off Fuel/Power

Remotely cut fuel or power for anti-theft protection and emergency safety control.
ACC Status Detection

Capture vehicle ACC status for accurate activity records and asset supervision.
Remote Voice Monitoring

Remotely listen to onsite sounds, confirm safety around tracked assets.
Trajectory Playback

Replay 180 days route to trace asset paths and secure your assets.
Geo-fence

Get alerts for unauthorized zone crossings, restrict vehicle activity range.
Real-time Tracking

Monitor your asset location live, keep full control all the time.
Multiple Anti-theft Alarms

Movement, vibration, wire‑cut and ignition status alarms to guard your vehicle around the clock.

Product Specifications
Key Features
Download (Manual /Catalog)

Filter

Device Param

Model	MV501G

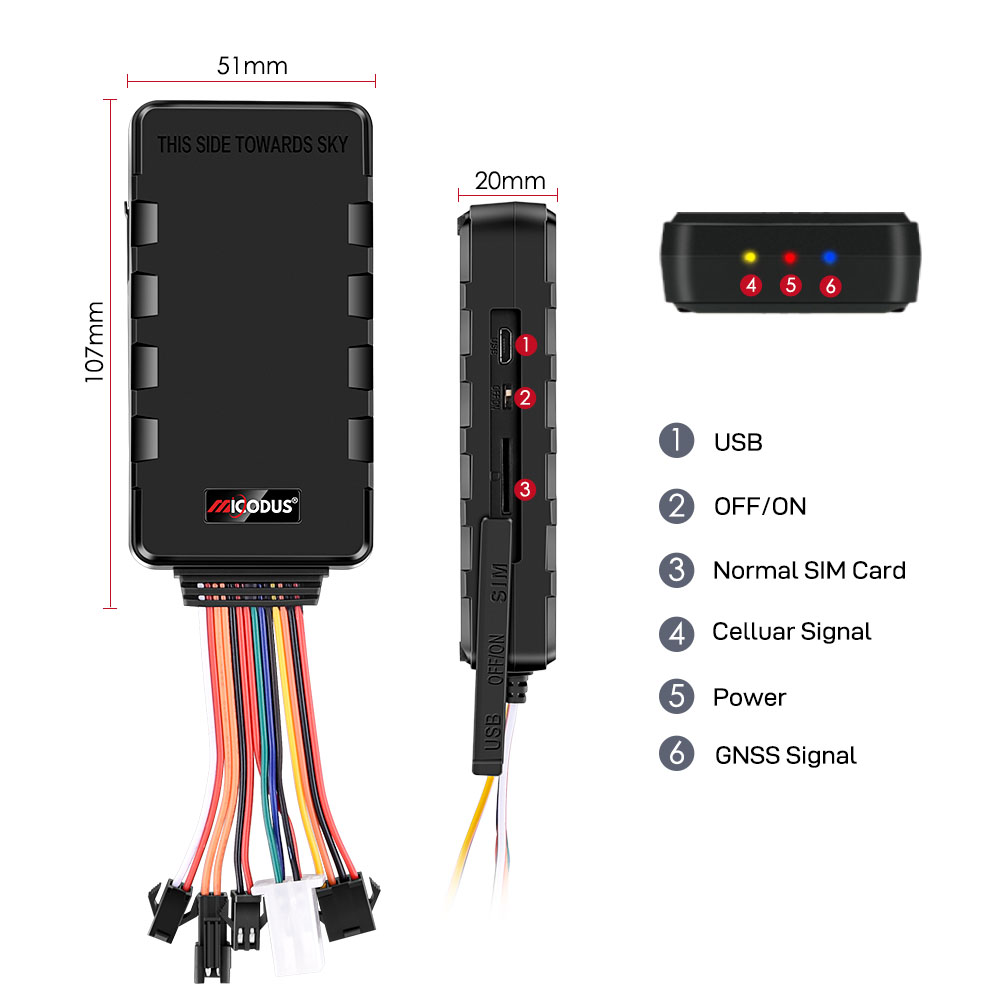

Demension	107mm(L) * 51mm(W) * 20mm(H)
Weight	150g
Working Voltage	DC 9V - 95V
Working Temperature	-20℃ - 75℃
Working Humidity	10%-85%RH
Built-in Memory	3000pcs GPS data can be stored at network blind area

GNSS

Cold Start	≤32 Seconds
Hot Start	≤1 Second
Tracking sensitivity	-162 dBm
GPS Channels	64
GNSS Antenna	Built-in
Positioning Type	GPS+GLONASS+LBS+AGPS
Accurancy	5-10m

Cellular

Technology	2G GSM+4G LTE CAT1
GSM Frequency	MV501G-SA Module: SIMCOM A7670SA GSM: 850/900/1800/1900MHz LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B28/B66
GSM Frequency	MV501G-EU Module: SIMCOM A7670E GSM: 900/1800MHz LTE-FDD: B1/B3/B5/B7/B8/B20
Cellular Antenna	Built-in

Power

Battery	3.7V 900mAh Lion Polymer battery
Work Current	4V/Average 45mA
Sleep Current	4V/less than 5mA
Charging Time	Around 7 hours
Battery Working Time	Tracking Mode:3- 4 Days

Interface

Digital Input	1 x digital input for ibutton
	1 x digital input for temperature sensor
	1 x digital input for SOS button
	1 x digital input for ignition detection
Analog Input	1 x digital input for microphone
Digital Output	1 x digital output for cut off oil
Serial Port	1 x RS232 for fuel sensor/camera
SIM Card	Micro SIM Card
Firmware Upgrade	OTA & UART Serial Upgrade
LED indication	GSM LED
	Charging LED
	GPS LED
