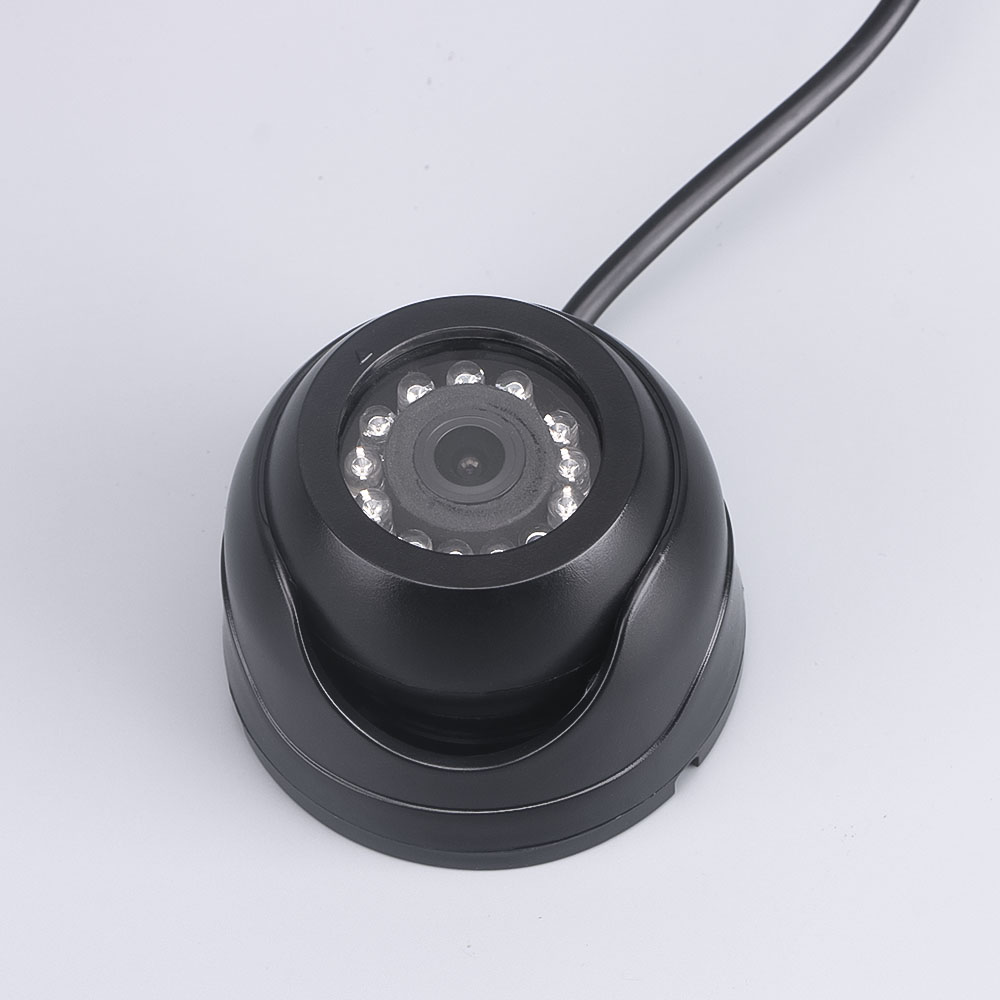

Wired Vehicle Camera for GPS Tracker, 2MP Photo Camera for Alarm

This wired vehicle camera works with GPS trackers. It only takes photos without video function. It supports manual snapshot and automatic photo capture upon alarm trigger. 2MP versions are available. Captured images upload to tracking platform for fleet supervision. Professional installation recommended for stable signal transmission.

Product Features

2MP HD Visual Monitoring

2MP high‑definition snapshots record sharp details inside the vehicle.
Dual‑mode Snapshot

Supports manual snapshot and automatic photo capture after alarm triggers.
Easy Installation

Lightweight compact body with simple wiring for in‑vehicle mounting.
Wide Field‑of‑View

Broad angle monitors more surroundings for trucks and commercial vehicles.

Product Specifications

Filter

Image Sensor & Optics

Sensor Type	CMOS, 1/2.7"
Effective Pixels	2.0MP（1280×1080）
Pixel Size	3.30μm × 3.30μm
Output Format	Standard JPEG / M-JPEG
Signal-to-Noise Ratio	44dB
Frame Rate	30fps @ 1280×1080
Scanning Mode	Progressive Scan
Lens Focal Length	Default 90° / 3.6mm（30°–170° optional）
Monitor Distance	Varies by lens selected（see lens table below）
Shutter	Electronic Rolling Shutter

Image Performance

Image Sizes	2.0MP（1280×1080）、720p HD（1280×720）、VGA（640×480）、QVGA（320×240）、QQVGA（160×120）
White Balance	Auto
Exposure	Auto
Gain	Auto

Night Vision

IR Night Vision

Supported（18 IR LEDs，illumination distance approx. 3–5m）

Interface & Communication

Serial Baud Rate	Default 115200（9600 / 19200 / 38400 / 57600 / 230400 / 460800 / 921600 optional）
Interface Definition	RS232（TX, RX, GND, 5V）；RS485（A, B, GND, 5V）；TTL（TX, RX, GND, 5V）
Connector Type	Custom connectors per customer request, or bare wires（red-yellow-white-black / red-yellow-green-black）
Communication	ProtocolVC0706 Protocol

Electrical

Working Current	Approx. 160mA（IR off）/ Approx. 380mA（IR on）
Working Voltage	DC +5V

Product Parameter

Waterproof Rating	None
Application Fields	Image acquisition systems, environmental monitoring, industrial process control, medical equipment, video phones, security & anti-theft, vehicle GPS, image capture systems
Application GPS Tracker	MiCODUS MV501G
