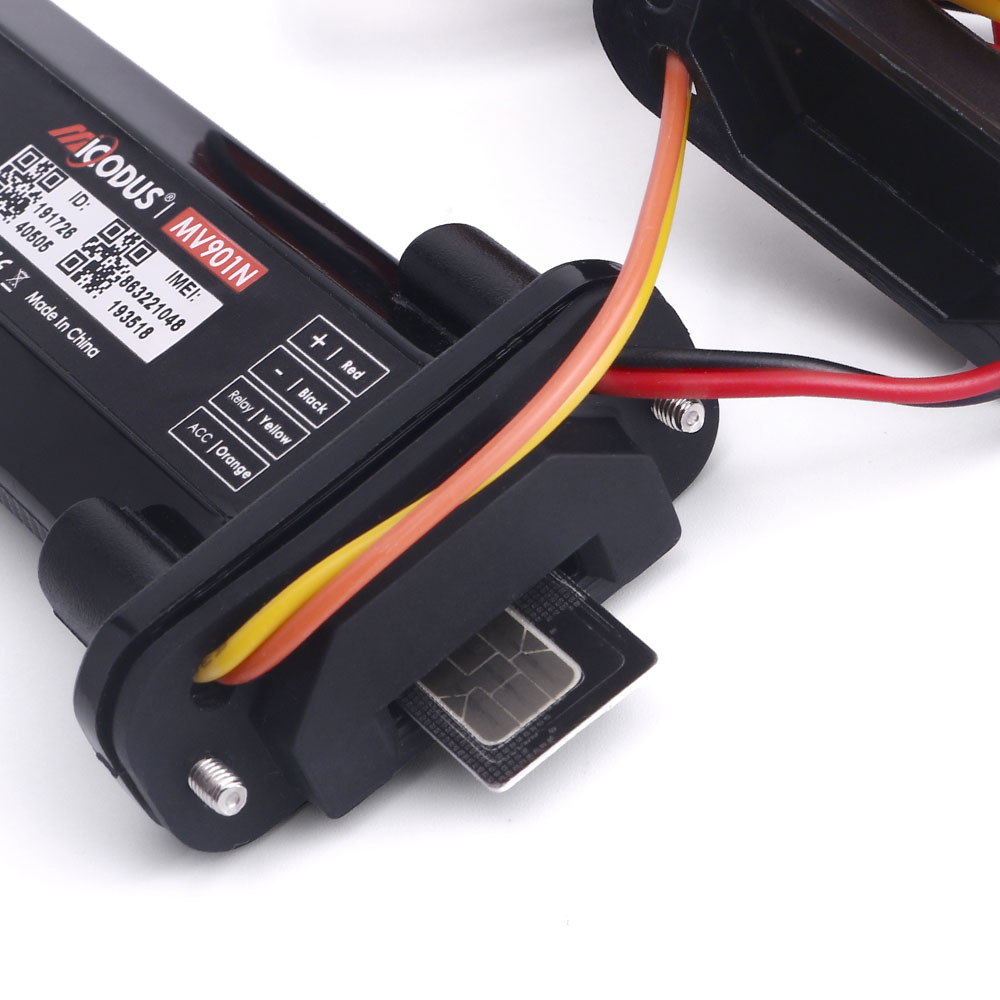

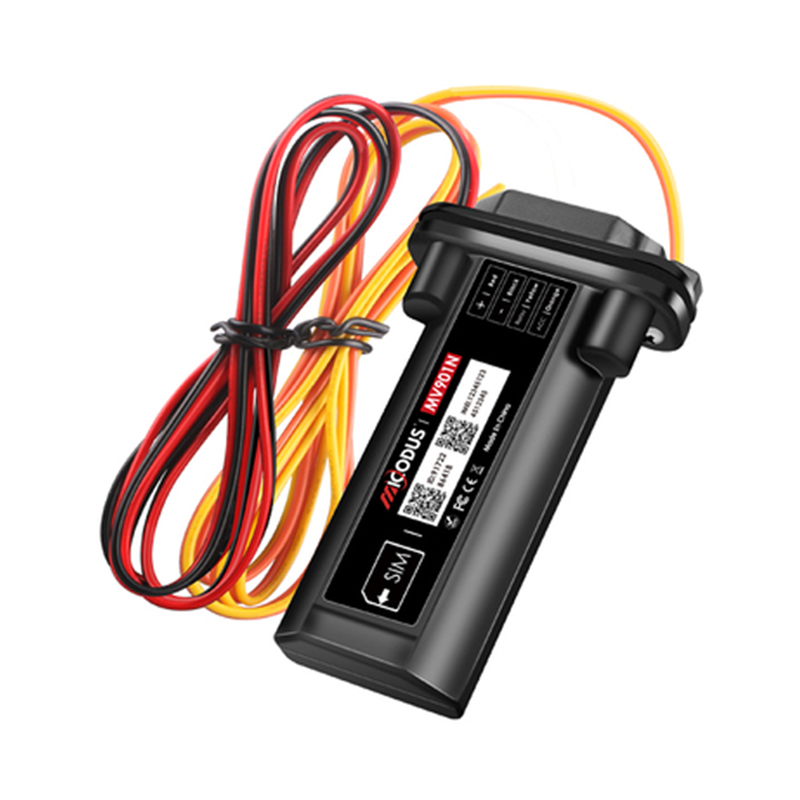

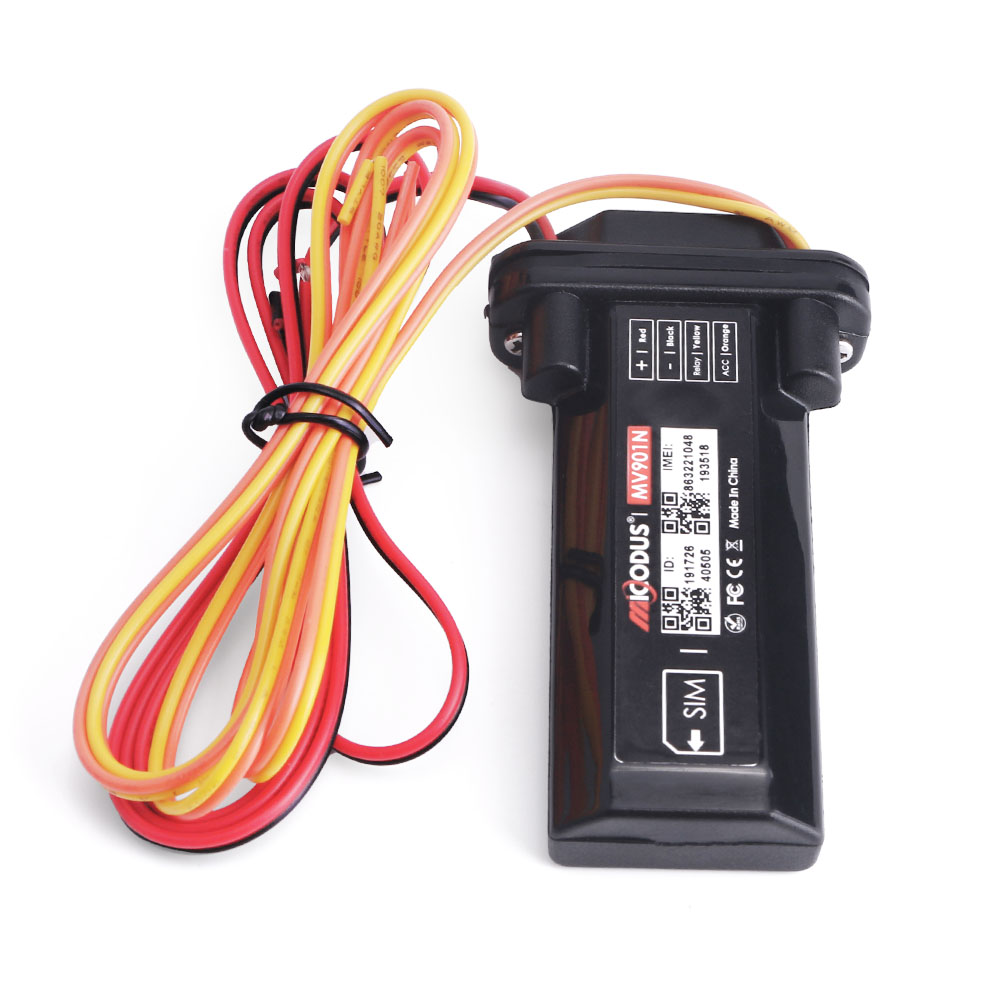

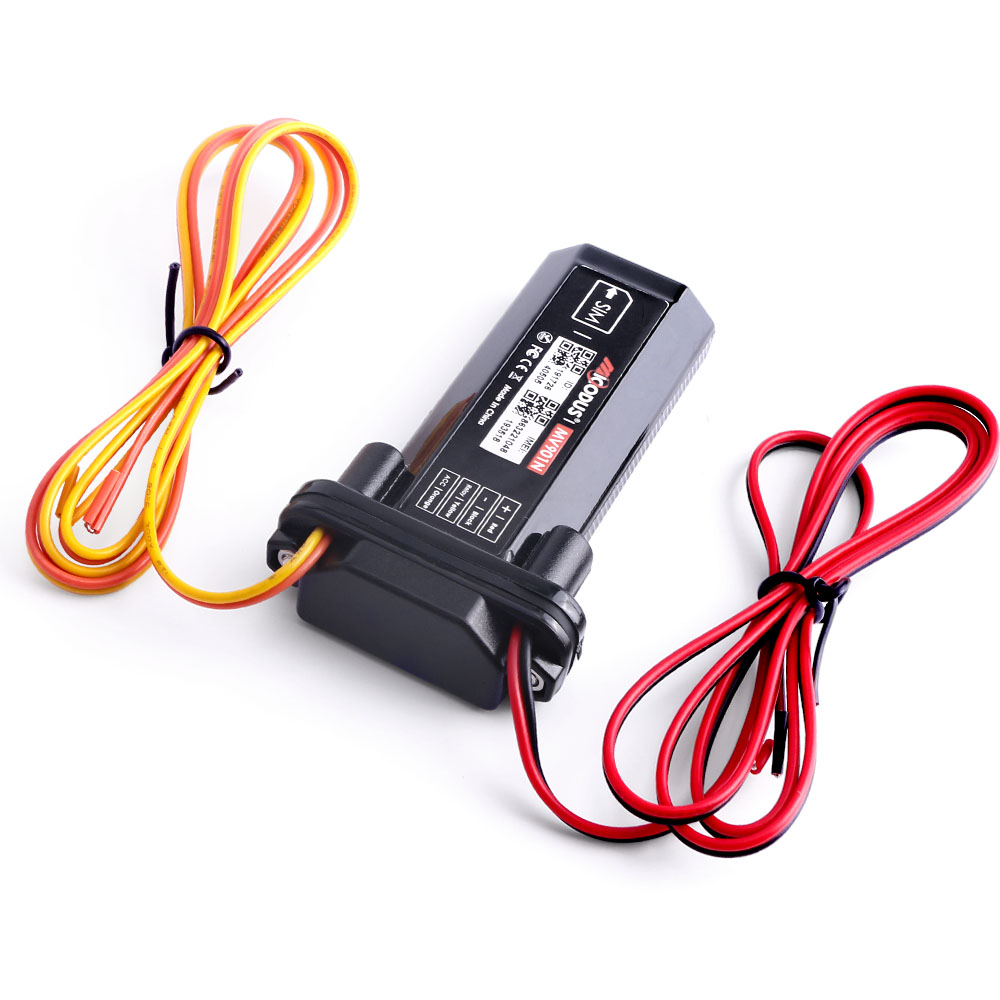

2G Vehicle GNSS Tracker – IP67 Waterproof Mini Size Fuel Cut Off Car Tracking

The MV901N is a 2G GNSS tracker with IP67 waterproof rating. Its mini form supports multiple hidden mounting positions. It delivers remote fuel cut‑off & resumption, ACC detection and various anti‑theft alarms. GPS+BDS+LBS positioning runs on 9‑95V wide voltage with built‑in 180mAh backup battery.

Product Features

Remote Cut-off Fuel/Power

Remotely cut fuel or power for anti-theft protection and emergency safety control.
ACC Status Detection

Capture vehicle ACC status for accurate activity records and asset supervision.
IP67 Waterproof

Withstand temporary immersion, adapt to harsh outdoor environments.
Trajectory Playback

Replay 180 days route to trace asset paths and secure your assets.
Geo-fence

Get alerts for unauthorized zone crossings, restrict vehicle activity range.
Real-time Tracking

Monitor your asset location live, keep full control all the time.
Movement Alarm

Get alerted the moment your vehicle moves, perfect for parking security.
Vibration Alarm

Trigger alerts on abnormal vibration, prevent vehicle tampering.
Overspeed Alarm

Trigger alerts when speed exceeds limit, manage reckless driving risks.
Low Voltage Alarm

Monitor car battery voltage, alert you early to avoid vehicle breakdown.
GNSS+LBS Positioning

Precise satellite positioning, LBS backup when satellite signals drop.
Ignition On‑Off Alarm

Receive instant alerts when your vehicle ignition turns on or off. Catch unauthorized activity and safeguard your car against theft.

Product Specifications
Key Features
Download (Manual /Catalog)

Filter

Device Param

Model	MV901N
Demension	33mm(L) * 15mm(W) * 90mm(H)
Weight	63.2g
Working Voltage	DC 9V - 95V
Working Temperature	-20℃ - 55℃
Working Humidity	10%-85%RH
Built-in Memory	320pcs GPS data can be stored at network blind area

GNSS

Hot/Cold Start	<1s，<32s @ Open Sky
GPS Channels	64
GNSS Antenna	Built-in
Positioning Type	GPS+BDS+GLONASS+LBS+AGPS
Tracking Sensitivity	-162 dBm
Accurancy	5-10m

Cellular

Technology	2G GSM
Working Frequency	GSM: 850/900/1800/1900MHz
Cellular Antenna	Built-in, FPC

Power

Battery	3.7V 180mAh Li-ion Battery
Work Current	4V/Average 45mA
Sleep Current	4V/less than 5mA

Interface

Digital Input	1 x digital input for ignition detection
Digital Output	1 x digital output for cut off oil
SIM Card	Normal SIM Card
Firmware Upgrade	OTA & UART Serial Upgrade
LED indication	GSM LED
	Charging LED
	GPS LED
