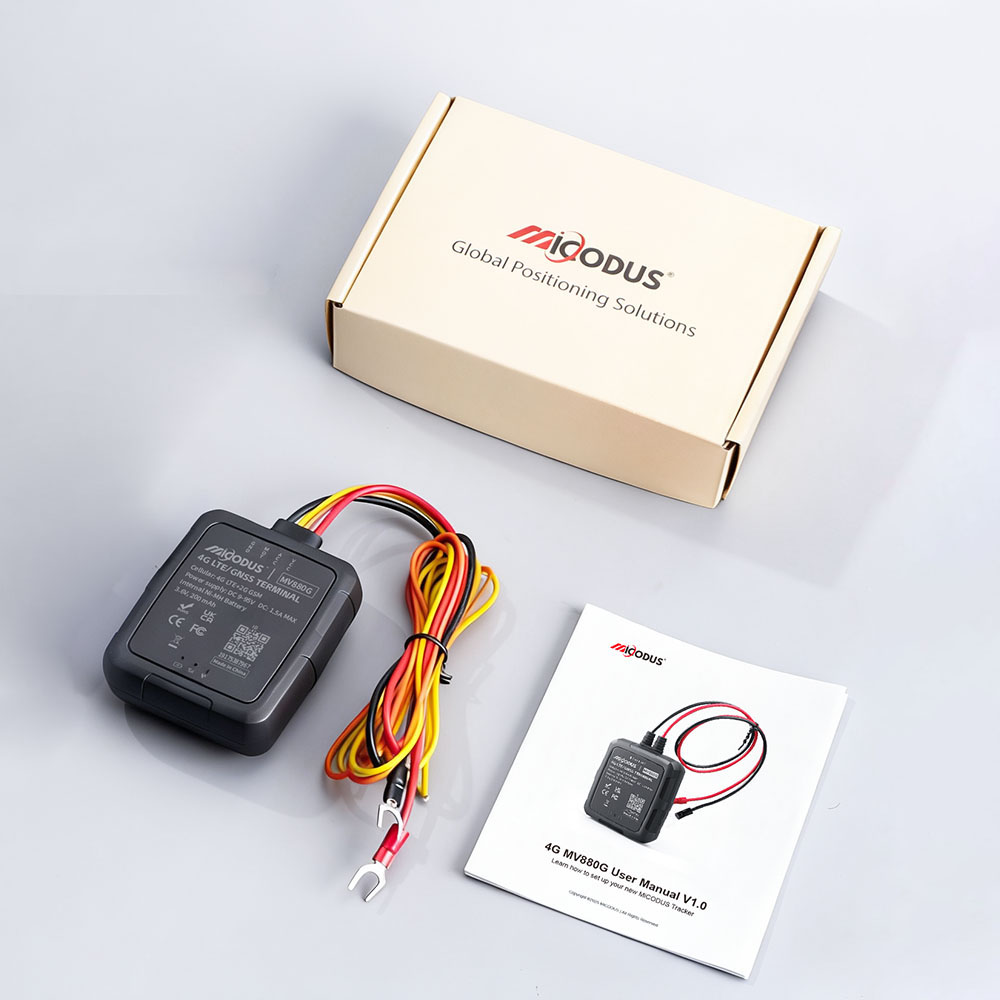

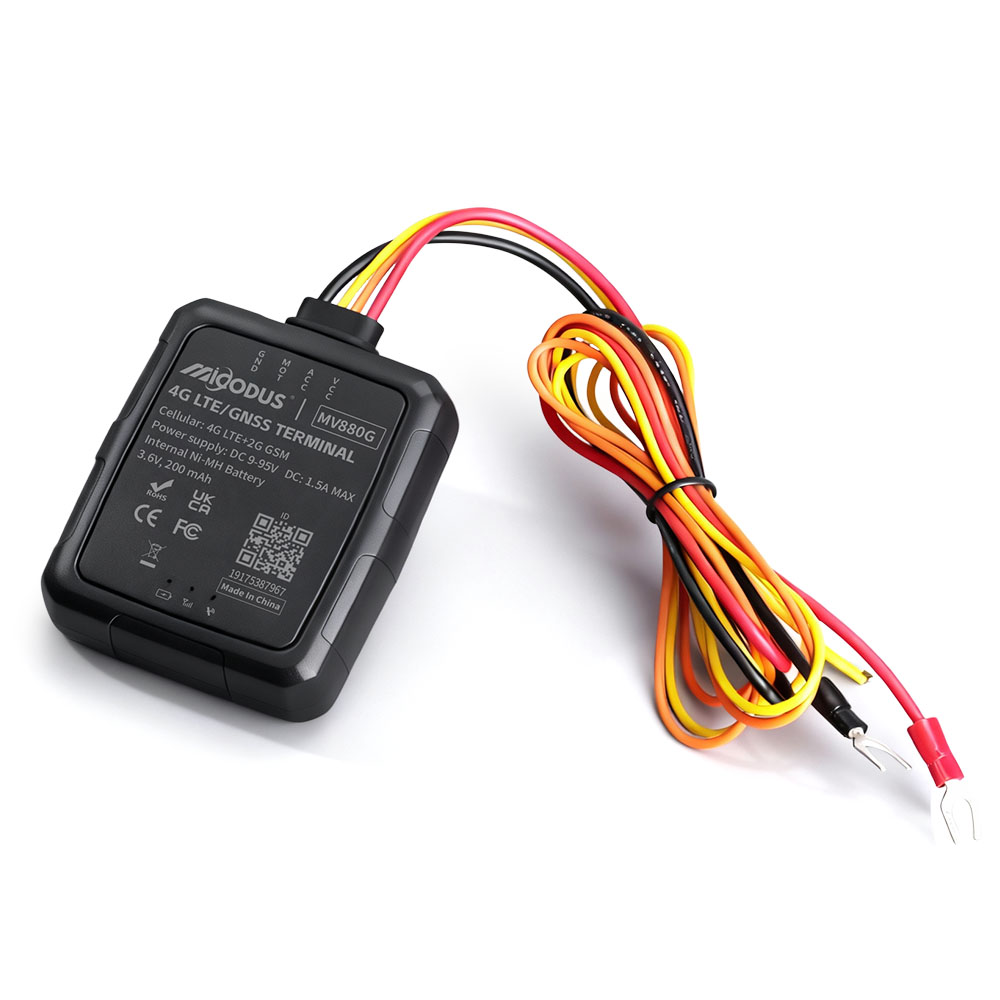

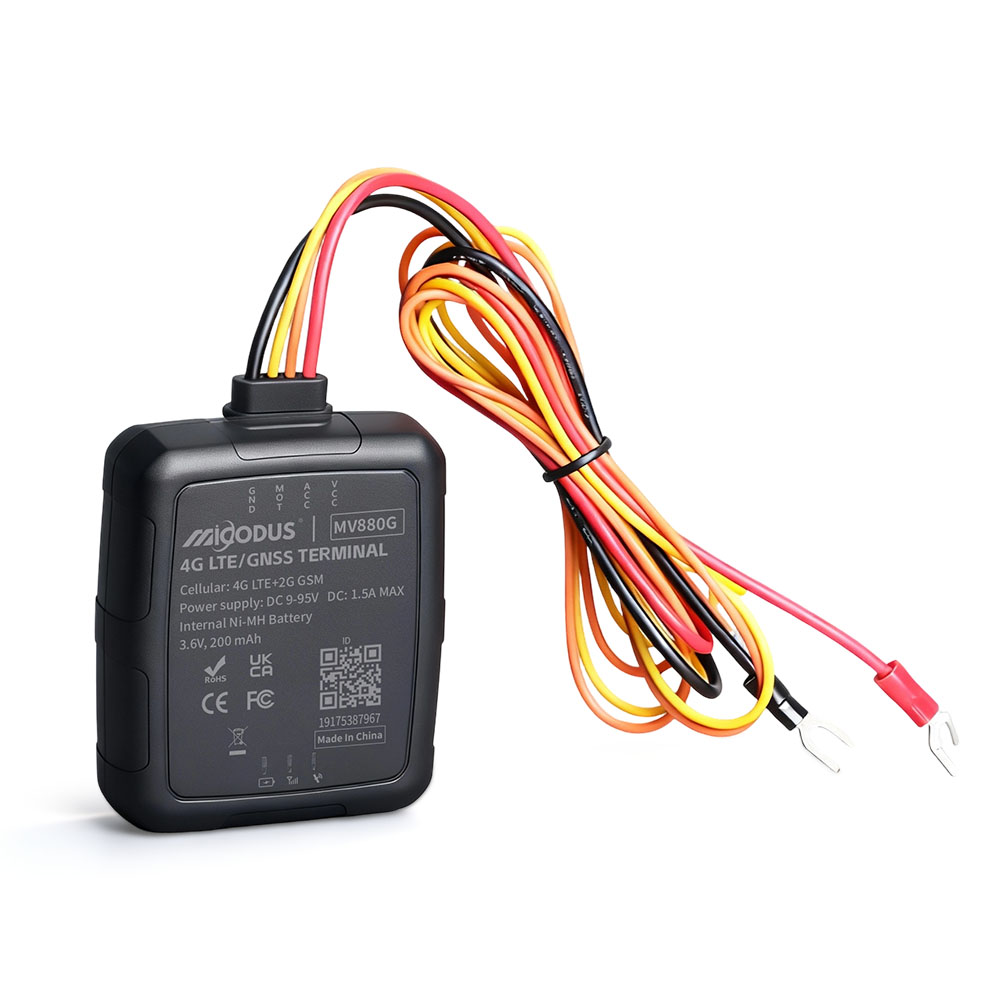

MV880G PRO 4G GPS Tracker – Rugged, Waterproof & Anti-Theft

The MV880G PRO stands out with IP67 waterproofing and a 9-95V wide voltage range, fitting cars, motorcycles, and buses—unlike typical 12V-only rivals. It offers remote fuel cut-off, ACC detection, blind-area data storage, and Bluetooth configuration for easy setup. With GPS+GLONASS+BDS+AGPS, 200mAh backup explosion-proof battery battery, it delivers reliable fleet and anti-theft tracking.

Product Features

Bluetooth APN Setup

Configure APN via Bluetooth, no SMS or cable required, supports data-only SIM.
Explosion-proof Battery

Built-in high-temp & explosion-proof battery for safer mounting on car battery.
35x35x4mm Antenna

Larger antenna captures more satellite signals for precise positioning.
IP67 Waterproof

Withstand temporary immersion, adapt to harsh outdoor environments.
Remote Cut-off Fuel/Power

Remotely cut fuel or power for anti-theft protection and emergency safety control.
ACC Status Detection

Capture vehicle ACC status for accurate activity records and asset supervision.
Trajectory Playback

Replay 180 days route to trace asset paths and secure your assets.
Geo-fence

Get alerts for unauthorized zone crossings, restrict vehicle activity range.
Real-time Tracking

Monitor your asset location live, keep full control all the time.
Overspeed Alarm

Trigger alerts when speed exceeds limit, manage reckless driving risks.
Low Voltage Alarm

Monitor car battery voltage, alert you early to avoid vehicle breakdown.
Multiple Anti-theft Alarms

Movement, vibration, wire‑cut and ignition status alarms to guard your vehicle around the clock.

Product Specifications
Key Features
Download (Manual /Catalog)

Filter

Device Param

Model	MV880G PRO
Demension	582170mm
Weight	116g
Working Voltage	DC 9V - 95V
Working Temperature	-20℃ - 75℃
Working Humidity	10%-85%RH
Built-in Memory	640pcs GPS data can be stored at network blind area

GNSS

Hot/Cold Start	<1s，<32s @ Open Sky
Tracking sensitivity	-162 dBm
GPS Channels	120
GNSS Antenna	Built-in Ceramics GNSS Antenna, 35mm35mm4mm
Positioning Module Model	Beken Corporation BK1661
Positioning Type	GPS+BDS+GLONASS+LBS+AGPS
GNSS	L1 Bands: GPS L1, Beidou B1, GLONASS G1
GPS Frequency	L1: 1575.42±1.023MHz
BDS Frequency	B1:1561.098±2.046MHz
Accurancy	Location accuracy: <1.5mCEP
	AGPS First positioning time< 1.5 s
	Timing accuracy: <30ns（1σ）
	Speed accuracy: <0.1m/s（1σ）

Cellular

Technology	2G GSM+4G LTE CAT1
Working Frequency	GSM: 850/900/1800/1900MHz
	LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B20/B28/B66
	LTE-TDD: B34/B38/B39/B40/B41
Cellular Antenna	Built-in, FPC
Communication Module Model	SIMCOM A7670G
Chip Bluetooth	Nations N32WB03x BLE 5.1

Power

Battery	NI-MH battery AAAAA200T*3 3.6V 200mAh
Work Current	12V/Average 34.90mA
Sleep Current	12V/Average 5.98mA

Interface

Digital Input	1 x digital input for ignition detection
Digital Output	1 x digital output for cut off oil

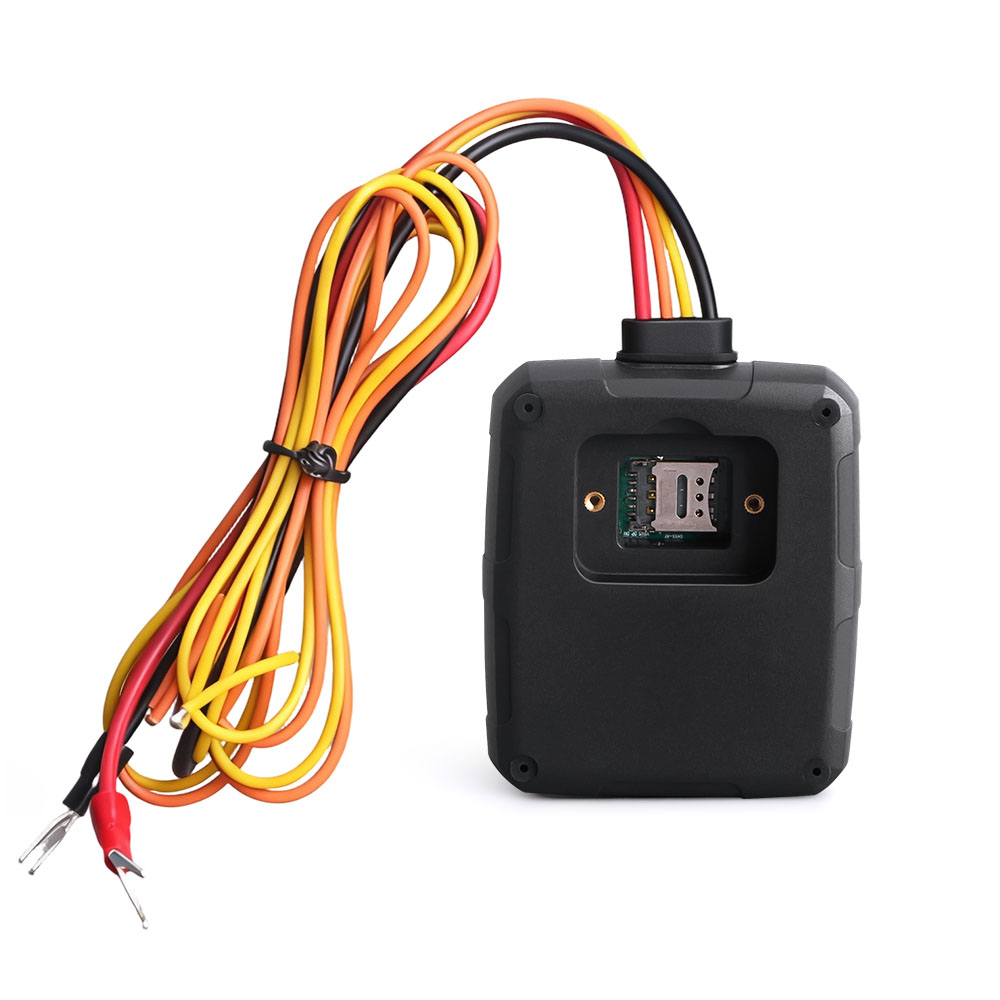

SIM Card	Nano SIM Card
Firmware Upgrade	OTA Upgrade

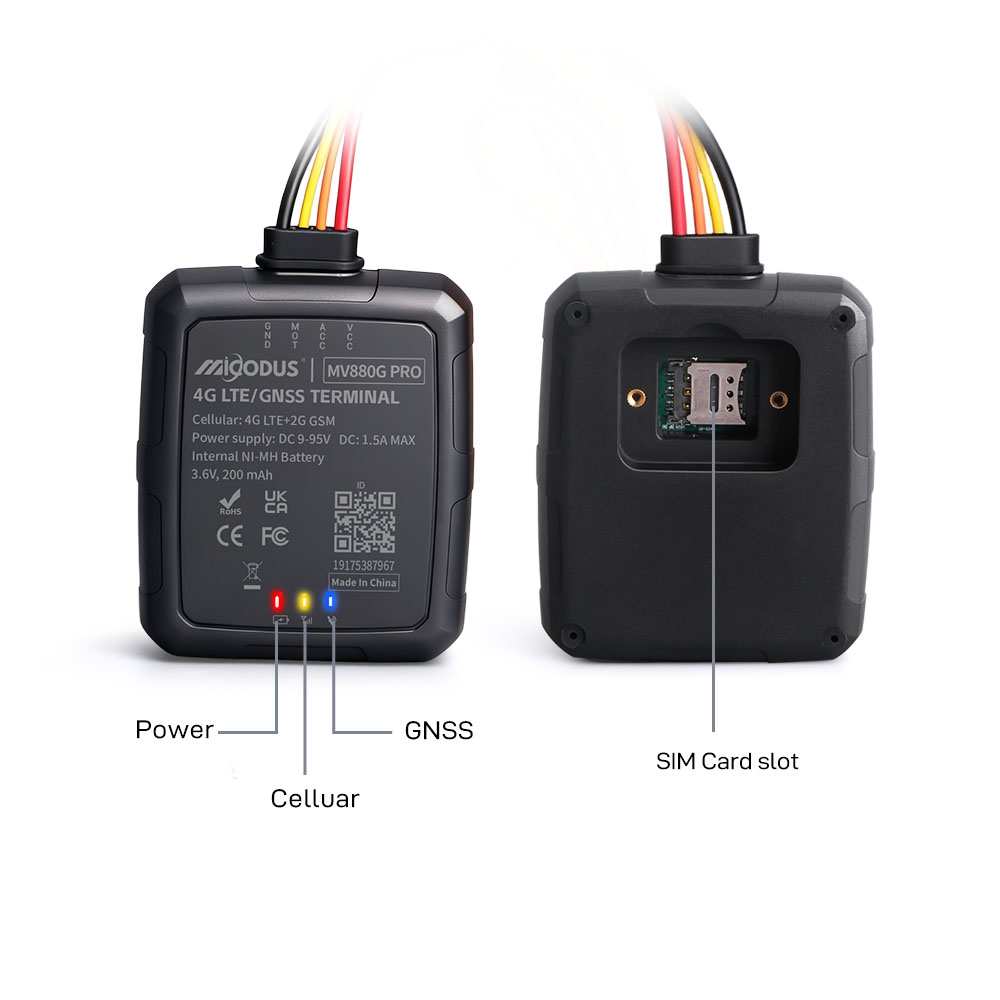

LED indication	GSM LED
	Charging LED
	GPS LED
