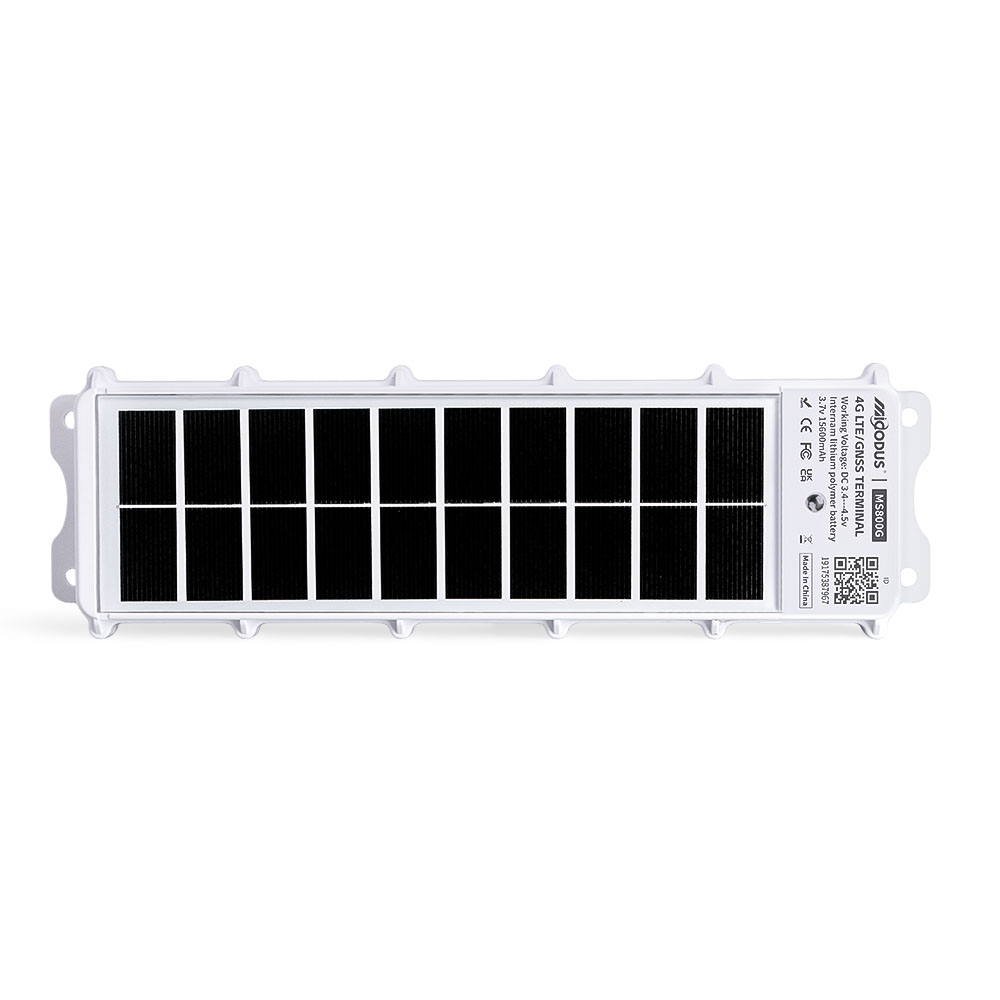

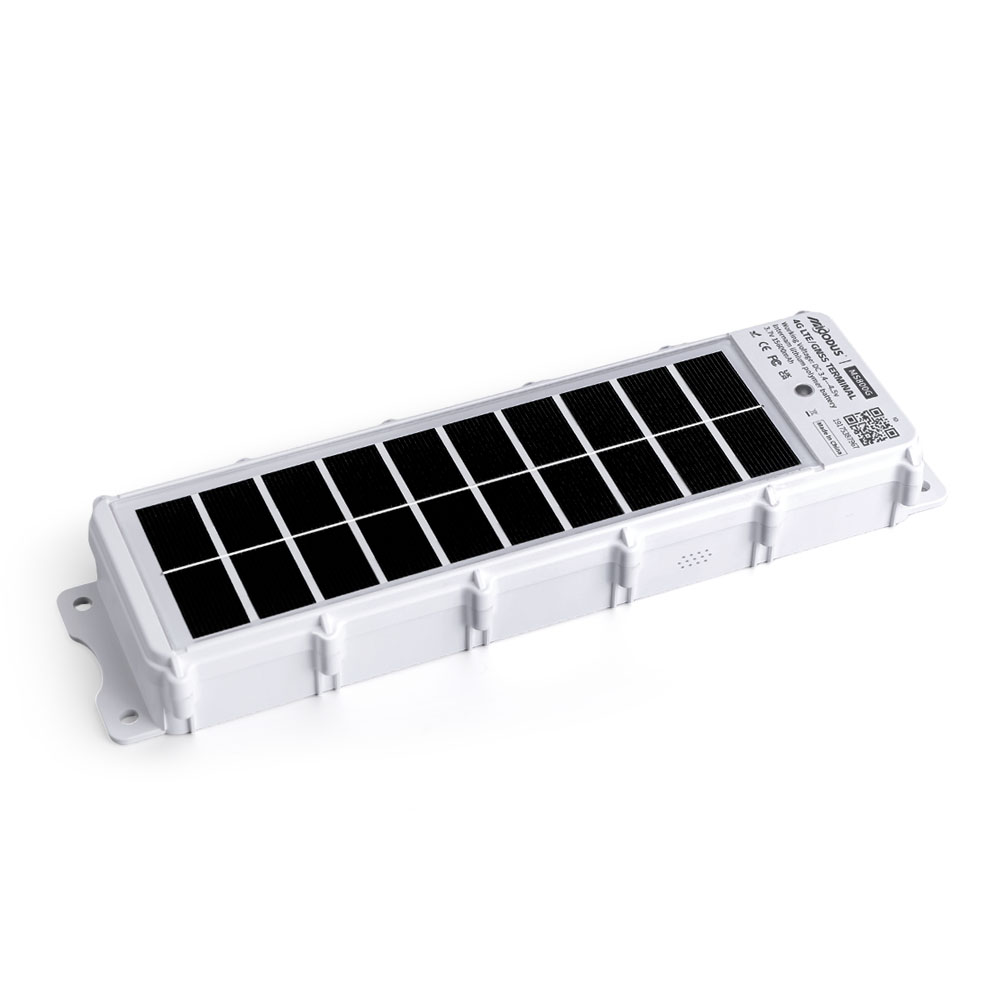

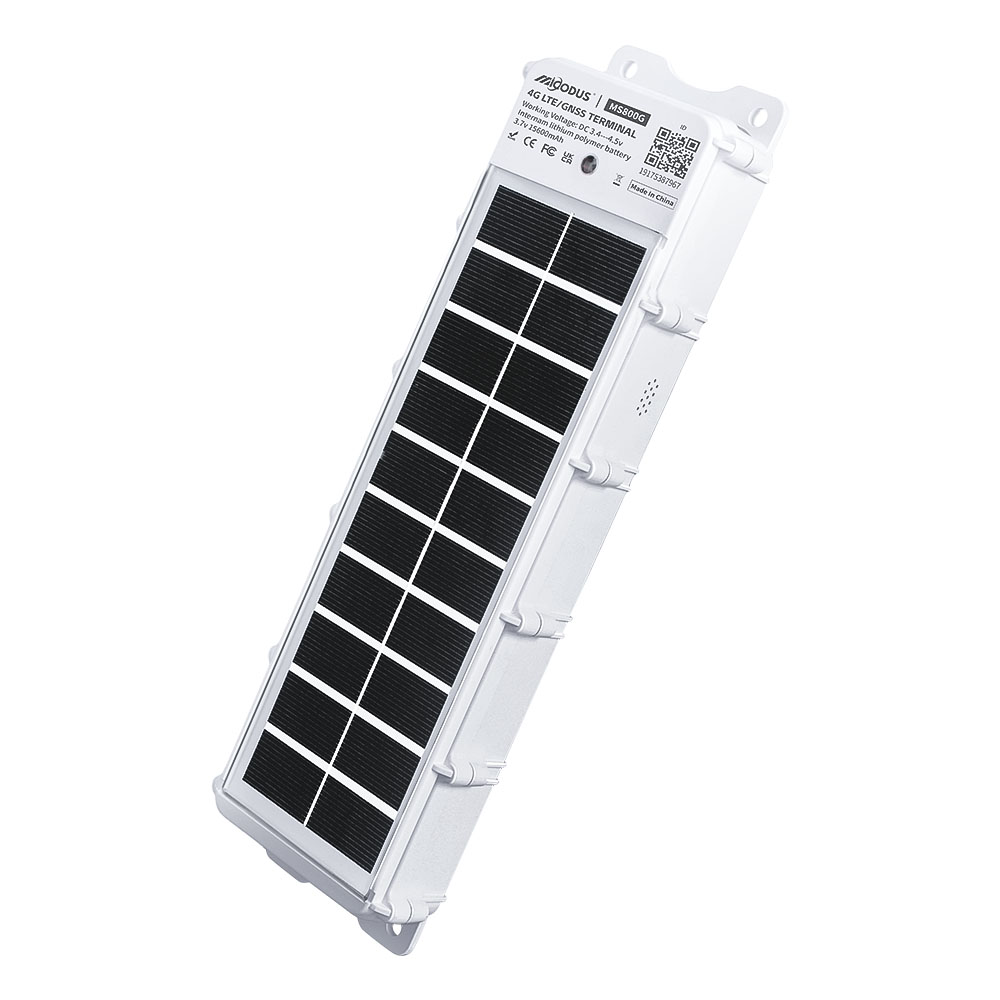

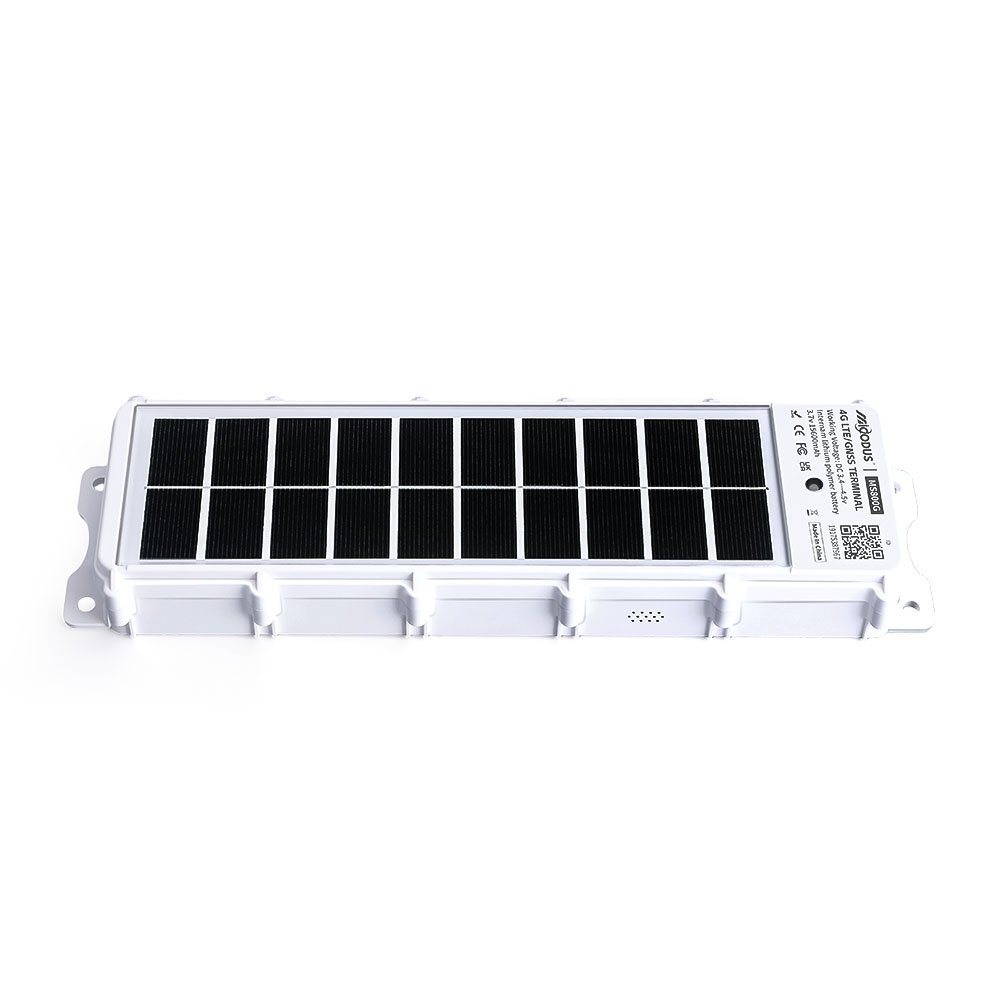

4G Solar Powered Asset GNSS Tracker with Optional Satellite Communication

The MS800G stands out with solar charging and a massive 15500mAh battery for maintenance-free, long-term use—ideal where wiring is impossible. Its IP67 waterproof housing plus strong magnets suits boats, trailers, and containers. It adds two-way calling, listen-in, temperature monitoring, and 5000-point blind-area storage. Optional satellite communication ensures tracking even in remote areas beyond cellular coverage.

Product Features

Solar Powered

Self-charge with sunlight to extend runtime and cut manual recharging.
Temperature Monitoring

Track real-time temperature, secure fragile and perishable cargo in transit.
Two-way Communication

Support real-time voice conversation, resolve on-site issues remotely.
IP67 Waterproof

Withstand temporary immersion, adapt to harsh outdoor environments.
Remote Voice Monitoring

Remotely listen to onsite sounds, confirm safety around tracked assets.
SOS Emergency Call

Send urgent alerts with one tap, get assistance when meet emergencies.
Trajectory Playback

Replay 180 days route to trace asset paths and secure your assets.
Geo-fence

Get alerts for unauthorized zone crossings, restrict vehicle activity range.
Real-time Tracking

Monitor your asset location live, keep full control all the time.
GNSS+LBS Positioning

Precise satellite positioning, LBS backup when satellite signals drop.
Falling Water Detection

Trigger alert when device falls into water to protect your assets.
Movement Alarm

Get alerted the moment your vehicle moves, perfect for parking security.
Vibration Alarm

Trigger alerts on abnormal vibration, prevent vehicle tampering.
Overspeed Alarm

Trigger alerts when speed exceeds limit, manage reckless driving risks.
Iridium Communications

Maintain GPS tracking in remote locations where mobile network fails.
15600mah Large Battery

Up to 90 days standby, reduce frequent charging and lower maintenance trouble.

Product Specifications
Key Features
Download (Manual /Catalog)

Filter

Device Param

Model	MS800G

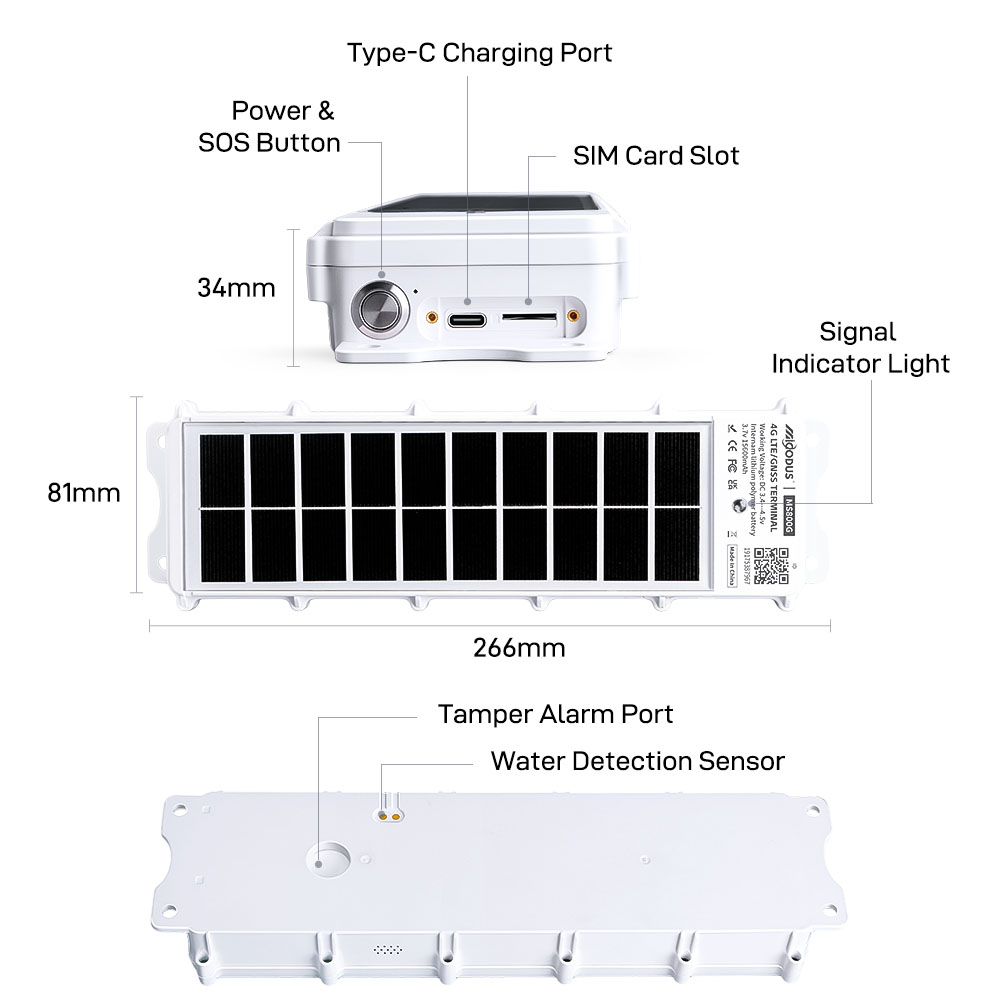

Demension	266(L)81mm(W)34mm(H)
Weight	650g
Working Voltage	DC 3.4V - 4.5V
Working Temperature	-20℃ - 60℃
Working Humidity	10%-85%RH
Built-in Memory	6080pcs GPS data can be stored at network blind area

GNSS

Hot/cold Start	<1s，<32s @ Open Sky
GNSS Antenna	Built-in Ceramics GNSS Antenna, 35mm35mm4mm
Positioning Type	GPS+BDS+GLONASS+LBS+AGPS
GPS Frequency	L1: 1575.42±1.023MHz
BDS Frequency	B1:1561.098±2.046MHz
Satellite Channels	32
Positioning Module	Zhongke Microelectronics AT6558R
Accurancy	Location accuracy: <10m（1σ）
	Timing accuracy: <30ns（1σ）
	Speed accuracy: <0.1m/s（1σ）

Cellular

Technology	2G GSM+4G LTE CAT1
Working Frequency	GSM: 850/900/1800/1900MHz
	LTE-FDD: B1/2/3/4/5/7/8/12/13/17/18/19/20/25/26/28/66
	LTE-TDD: B34/38/39/40/41
Communication Module	Quectel EG912U-GL
Cellular Antenna	Built-in, FPC

Power

Battery	15600mAh (3.7V 18650*6P)
USB Charging Time	About 12 hours
Solar Charging Time	About 55 hours
Working Current	4V/Average 68mA
Dormant Current	4V/Average 200uA
Standby Time	Tracking Mode: Around 20-25 Days
	Power Saving Mode: Around 50 Days
	Hibernate Mode: Around 100 Days

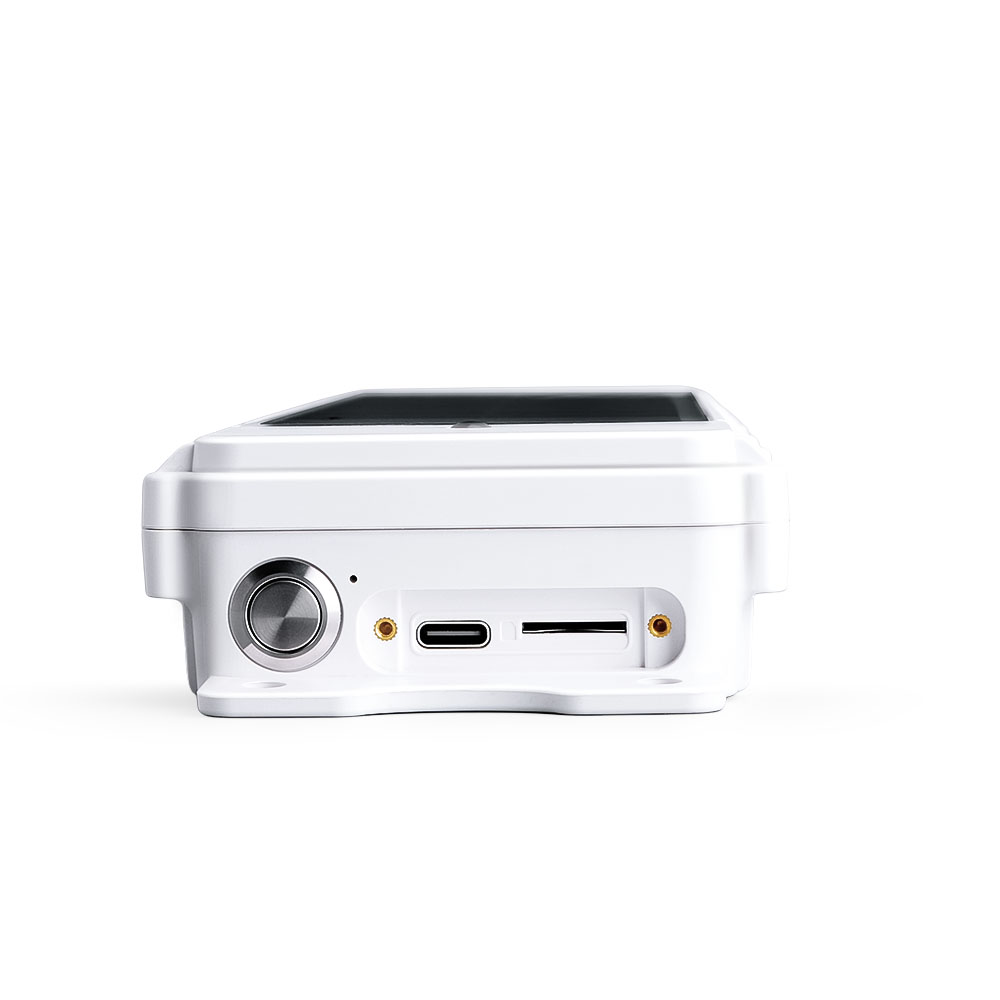

Interface

SIM Card	Micro SIM Card
Charging	Type-C Interface
Firmware Upgrade	OTA & UART Serial Upgrade
LED indication	GSM LED
	Charging LED
	GPS LED

Certification

Regulatory

CE, RoHS, FCC, UKCA, ISED

Iridium(Option)

Frequency	1616 ～ 1626.5 MHz
Max Transmit Message	340 bytes
Max Receive Message	270 bytes
Duplex Mode	TDD (Time Division Duplex)
Antenna	Built-in ceramic antenna Dimensions: 25×25×4mm
