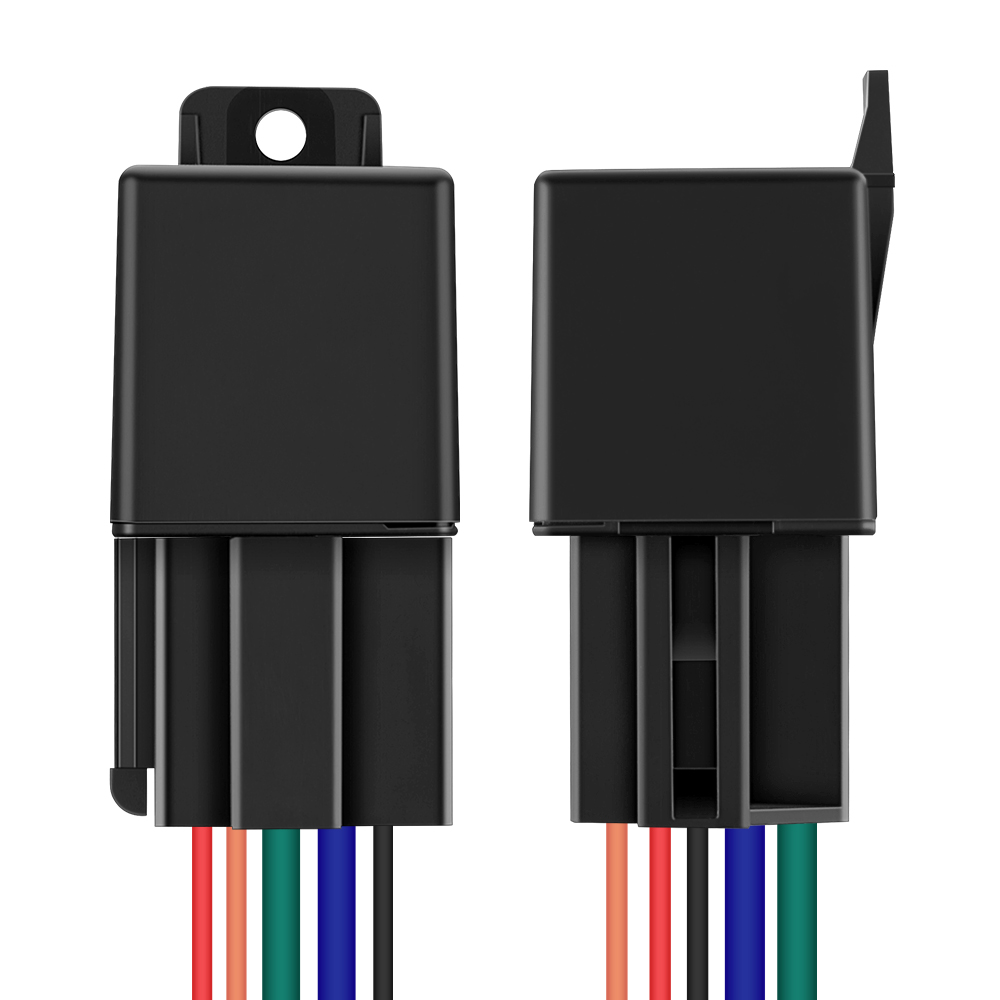

4G Vehicle GNSS Tracker - Relay Camouflage & Remote Cut-off Anti-theft

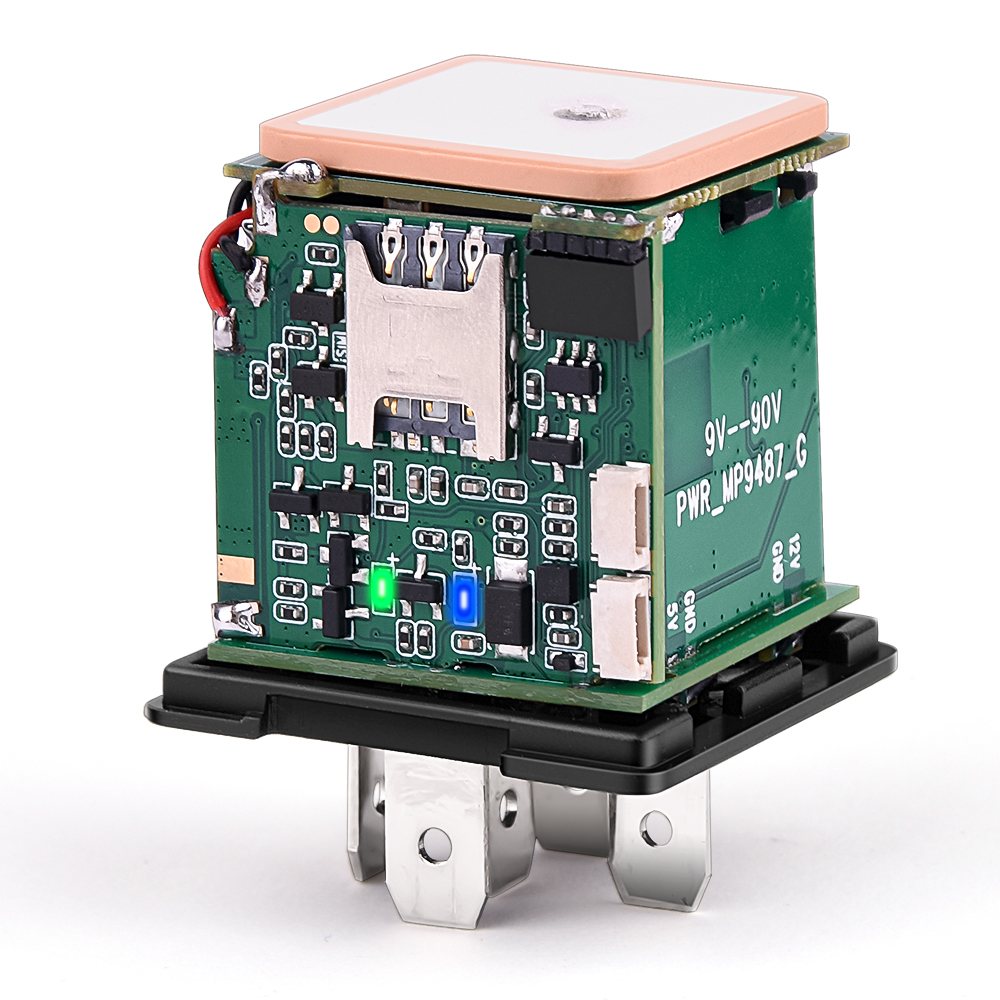

The MV730G features relay camouflage casing to blend seamlessly with vehicle wiring for concealed mounting. It supports 9–95V wide voltage range, fitting cars, motorcycles and light vehicles. It provides remote fuel/power cut-off, vibration and towing alarms. GNSS+LBS positioning and built-in backup battery ensure continuous tracking.

Product Features

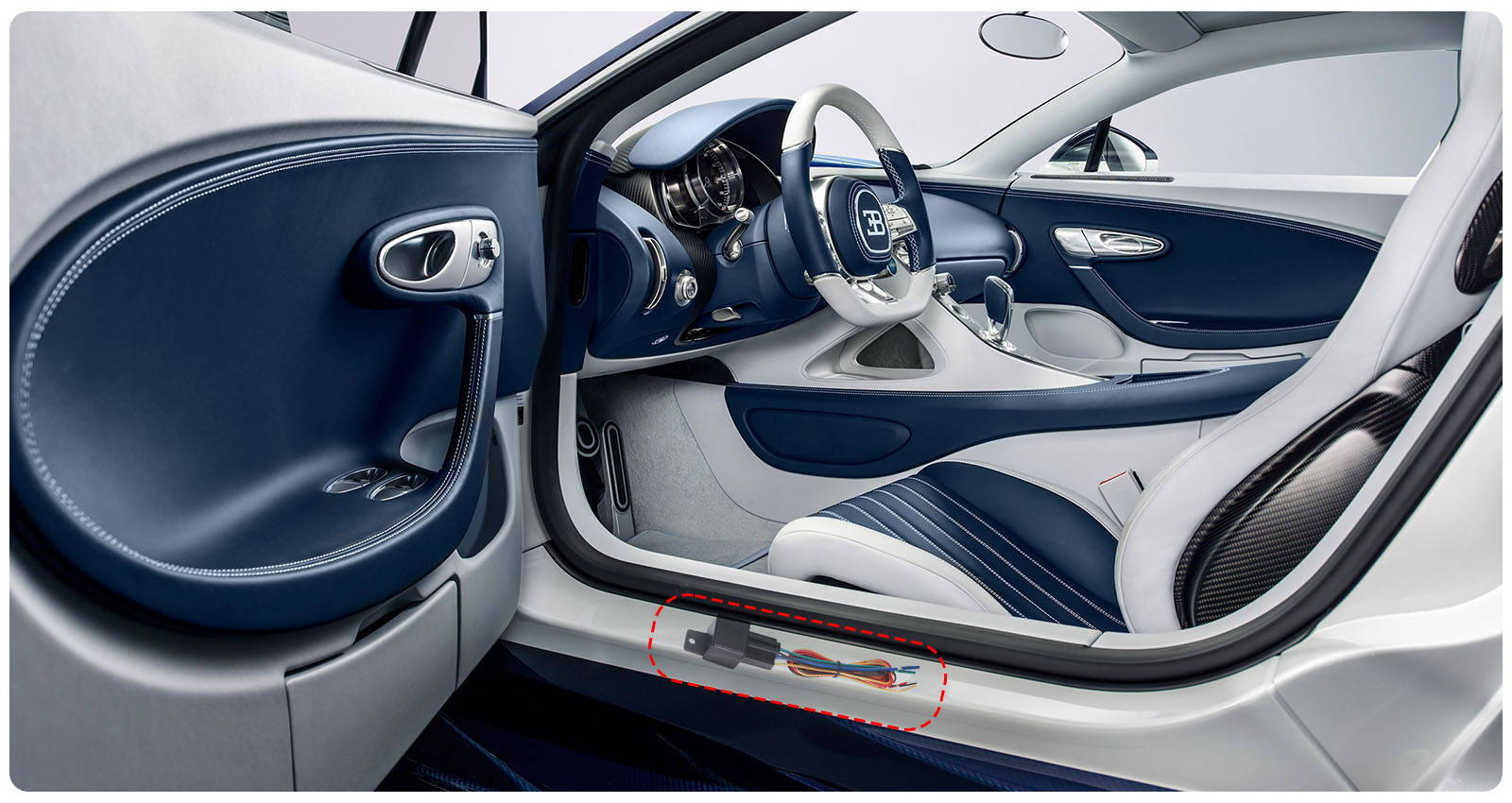

Hidden Design

Relay-shaped appearance to hide tracker and avoid discovery.
Dual Platforms Work

Simultaneously connect two tracking platforms for backup monitoring.
ACC Status Detection

Capture vehicle ACC status for accurate activity records and asset supervision.

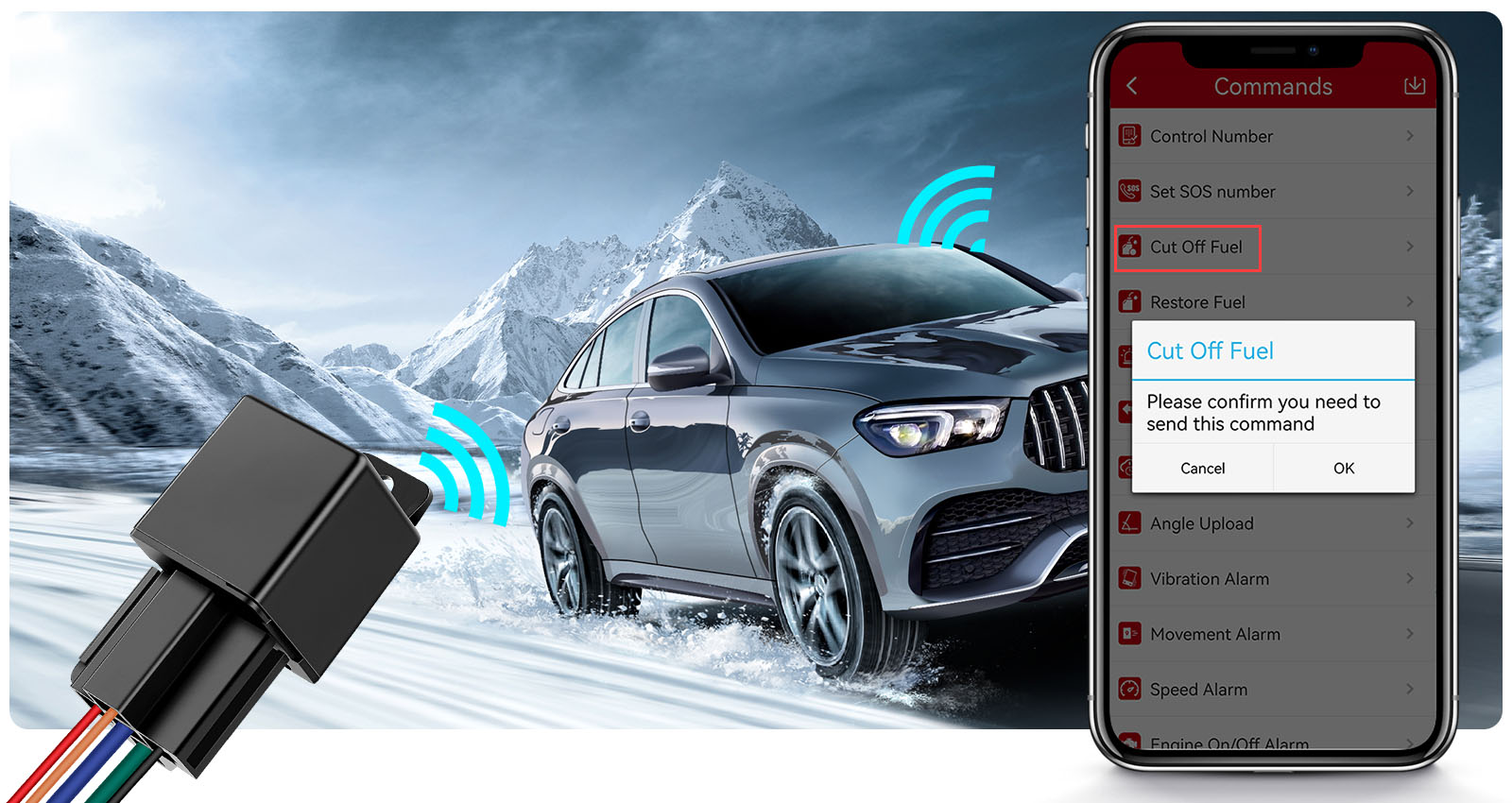

Remote Cut-off Fuel/Power

Remotely cut fuel or power for anti-theft protection and emergency safety control.
Geo-fence

Get alerts for unauthorized zone crossings, restrict vehicle activity range.
Real-time Tracking

Monitor your asset location live, keep full control all the time.
Trajectory Playback

Replay 180 days route to trace asset paths and secure your assets.
Low Voltage Alarm

Monitor car battery voltage, alert you early to avoid vehicle breakdown.
Multiple Anti-theft Alarms

Movement, vibration, wire‑cut and ignition status alarms to guard your vehicle around the clock.
GNSS+LBS Positioning

Precise satellite positioning, LBS backup when satellite signals drop.
Overspeed Alarm

Trigger alerts when speed exceeds limit, manage reckless driving risks.
Remote OTA Upgrade

Remotely update firmware to fix bugs and keep your device working optimally.

Product Specifications
Key Features
Download (Manual /Catalog)

Filter

Device Param

Model	MV730G
Demension	72x30x34mm
Weight	40g
Working Voltage	DC 9V - 95V
Fuel Pump Power Line Voltage	5-30V DC
Fuel Pump Power Line Current	Max 60 amps (Normally 20 amps)
Working Power	Working Power: 1.2w; Sleep Power: 0.025w
Working Temperature	-20℃ - 60℃
Working Humidity	5%-95%RH
Built-in Memory	3000pcs GPS data can be stored at network blind area

GNSS

Hot/warm/cold Start	<3s，<35s，<45s @ Open Sky
Tracking sensitivity	-162 dBm
GPS Channels	64
GNSS Antenna	Built-in Ceramics GNSS Antenna
Positioning Type	GPS+GLONASS+BDS+GALILEO+QZSS+SBA(WAAS，EGNOS，GAGAN，MSAS)+AGPS+LBS
Accurancy	GNSS Accuracy: <5M @ Open Sky
Accurancy	LBS Accuracy: 200-2000m (Depend on density of base stations)

Cellular

Technology	2G GSM+4G LTE CAT1
Working Frequency	GSM: 850/900/1800/1900MHz
Working Frequency	LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/B18/B19/B20/B25/B26/B28/B66 LTE-TDD:B34/B38/B39/B40/B41
Communication Module	SIMCOM A7670G
Cellular Antenna	Built-in

Power

Battery

3.7V 45mAh Lion Polymer battery

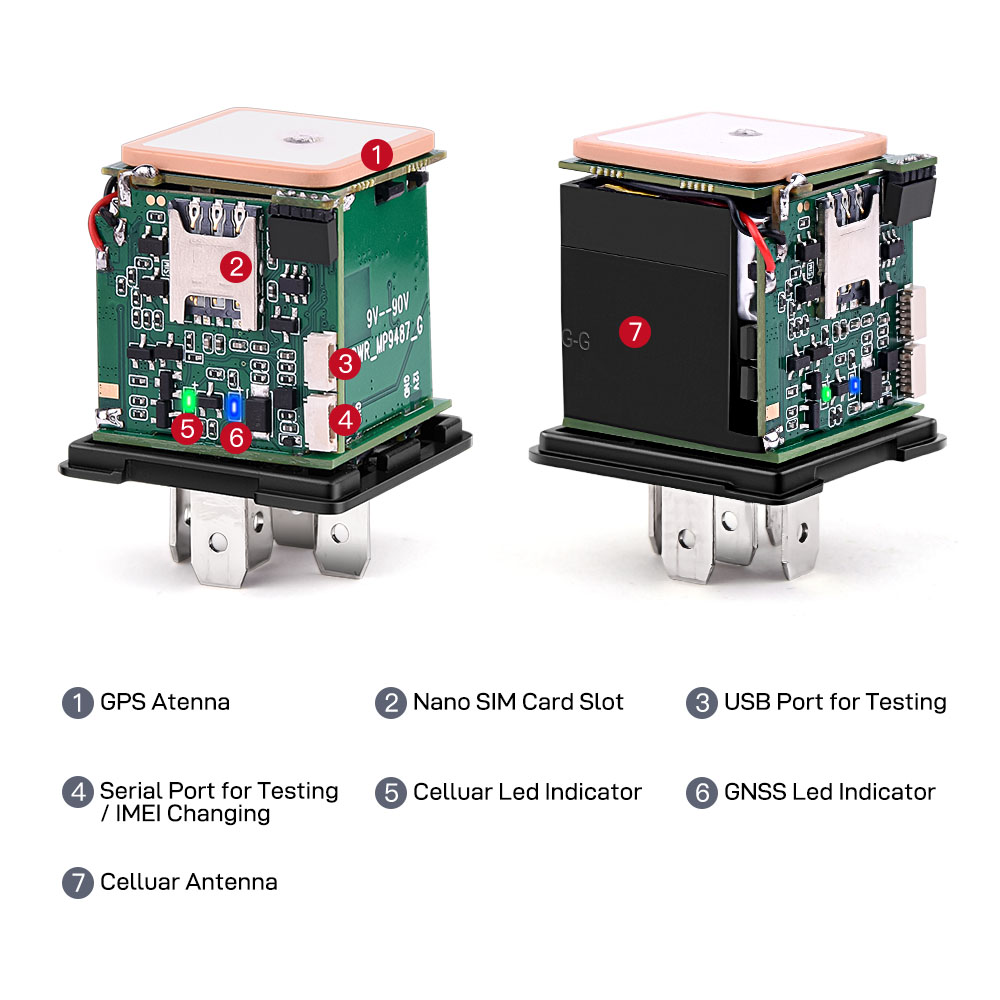

Interface

Digital Input	1 x digital input for ignition detection
Digital Output	1 x digital output for cut off oil
SIM Card	Nano SIM Card
Firmware Upgrade	OTA & UART Serial Upgrade
LED indication	GSM LED
	Charging LED
	GPS LED
