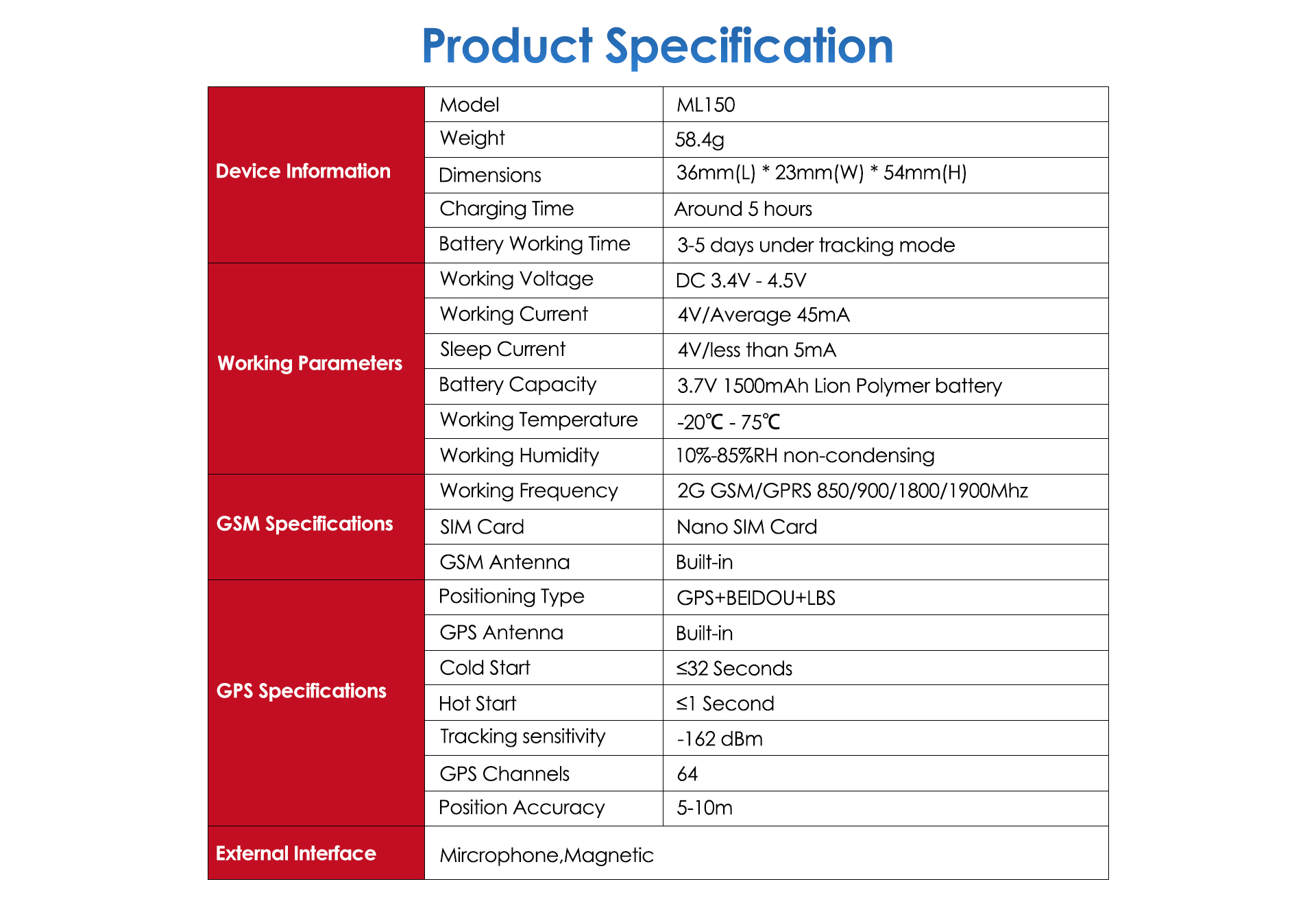

物理规格

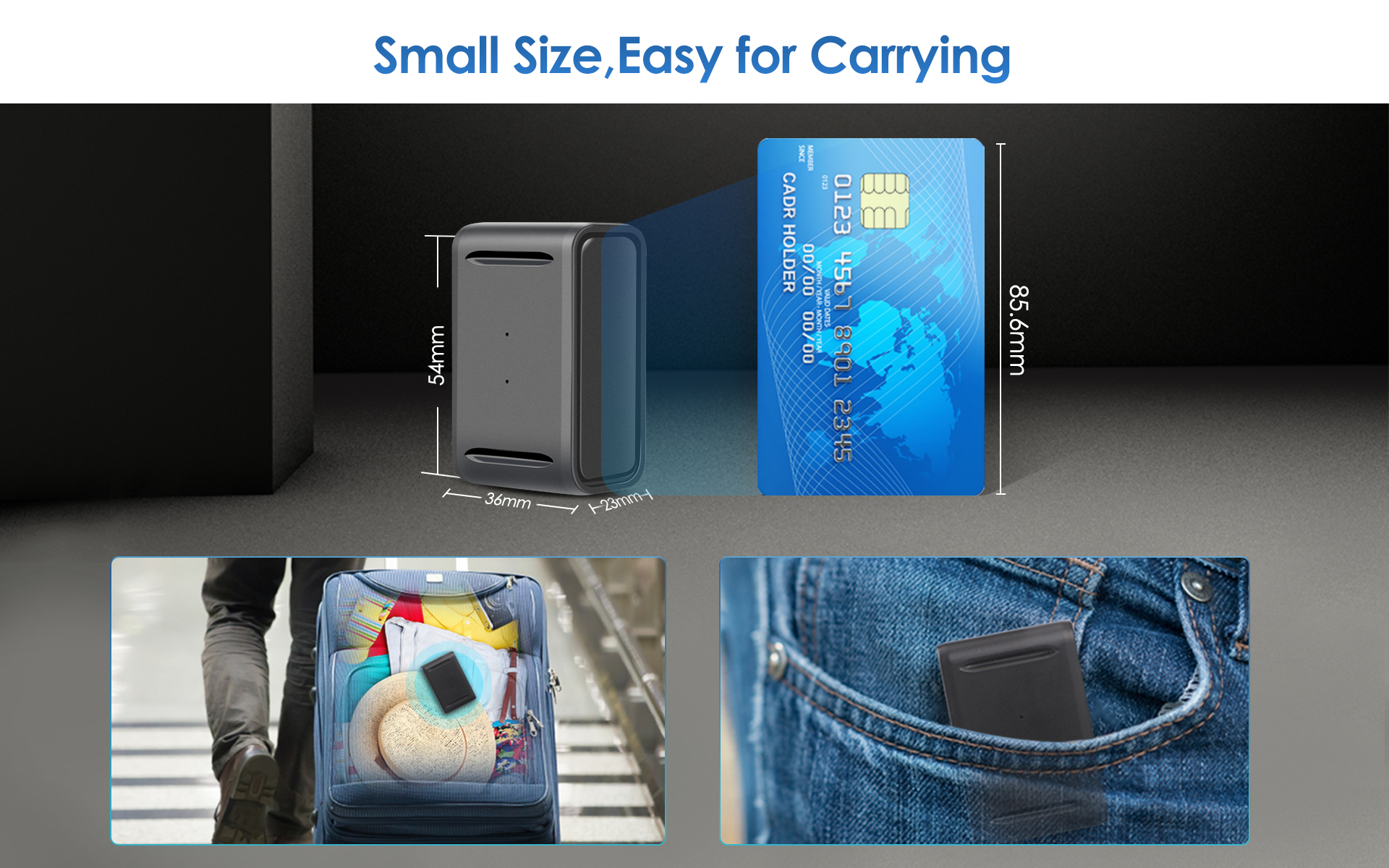

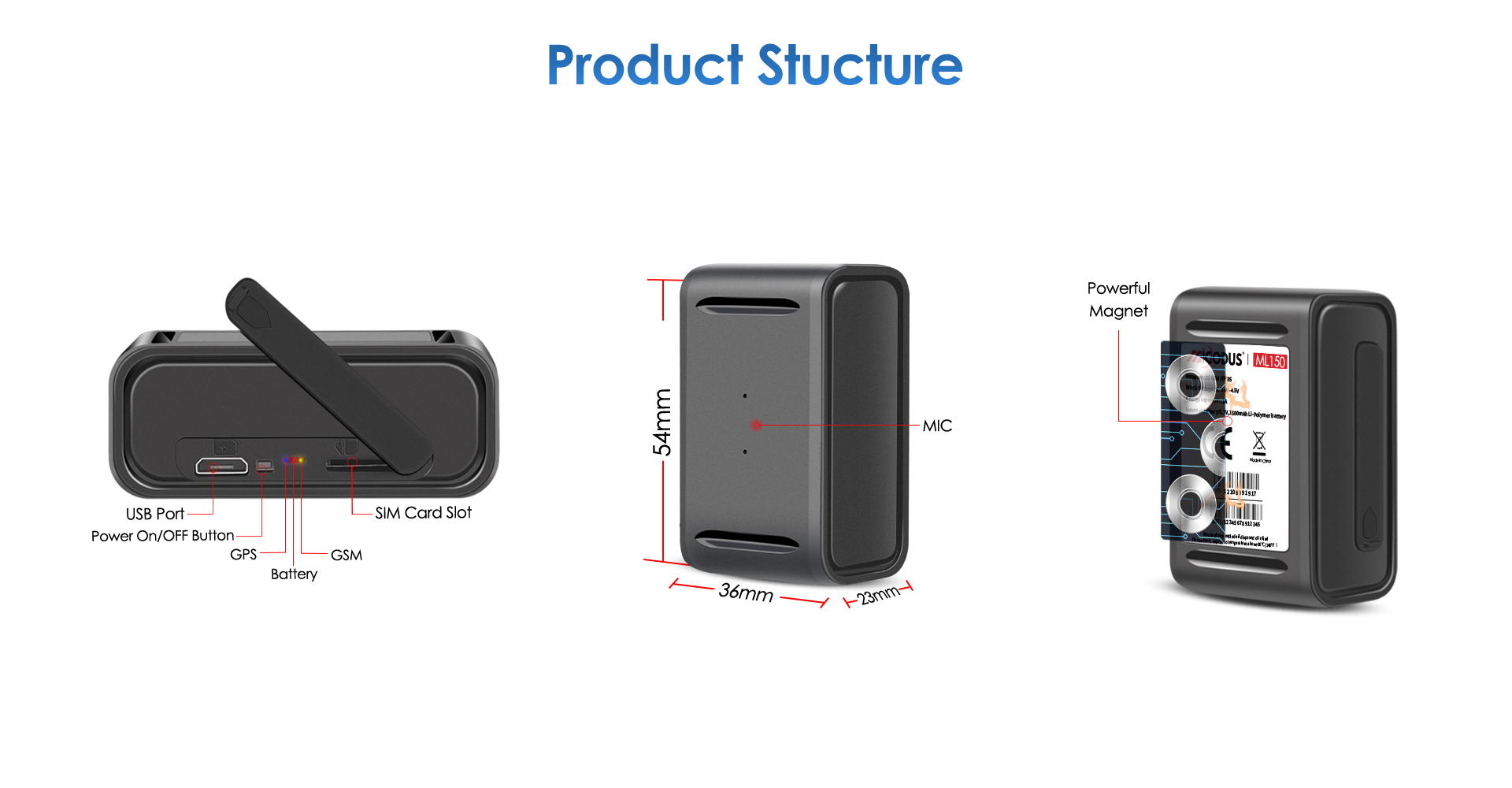

规模36x 23 x 54mm毫米(长x宽x高)
重量58.4克
MODULE
Name
Technology
GNSS
Positioning TypeGPS+BEIDOU+LBS
GPS AntennaBuilt-in
Cold Start≤32 Seconds
Hot Start≤1 Second
Tracking sensitivity-162 dBm
GPS Channels64
Position Accuracy5-10m
CELLULAR
Working Frequency2G GSM/GPRS 850/900/1800/1900Mhz
SIM Card

Nano SIM Card

Cellular AntennaBuilt-in
POWER
Working VoltageDC 3.4V - 4.5V
Working Current4V/Average 45mA
Sleep Current4V/less than 5mA

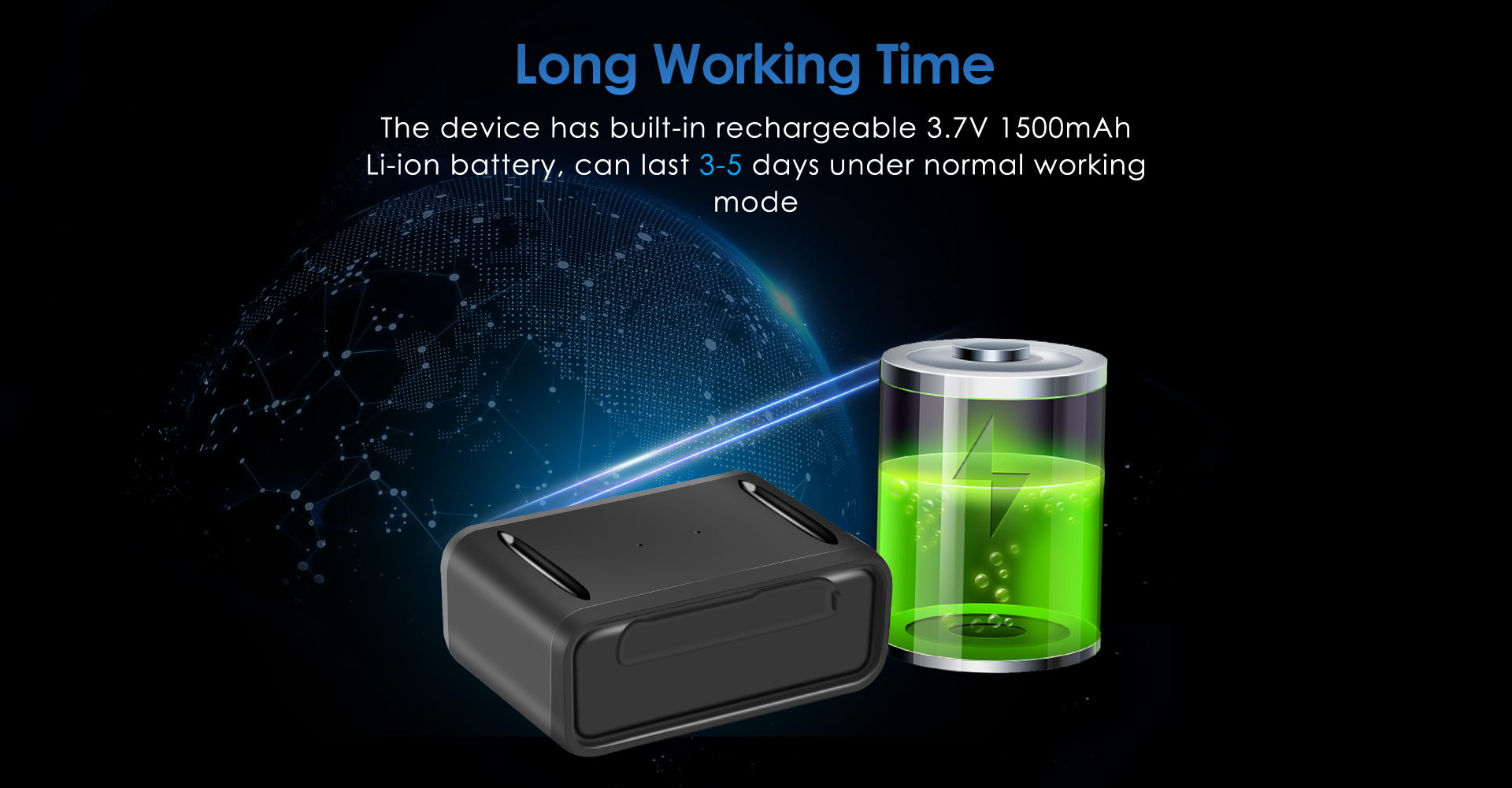

Battery Capacity3.7V 1500mAh Lion Polymer battery
