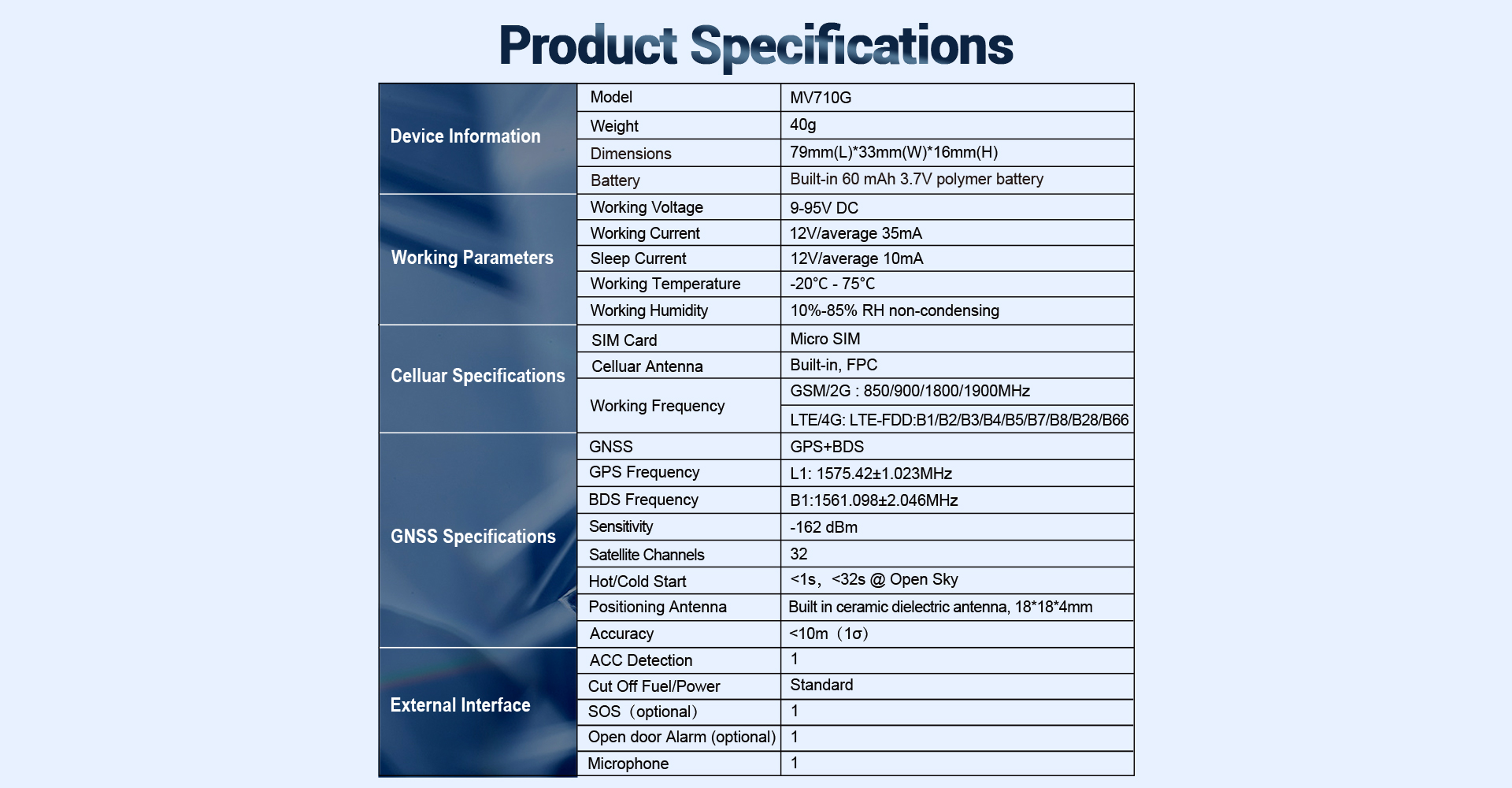

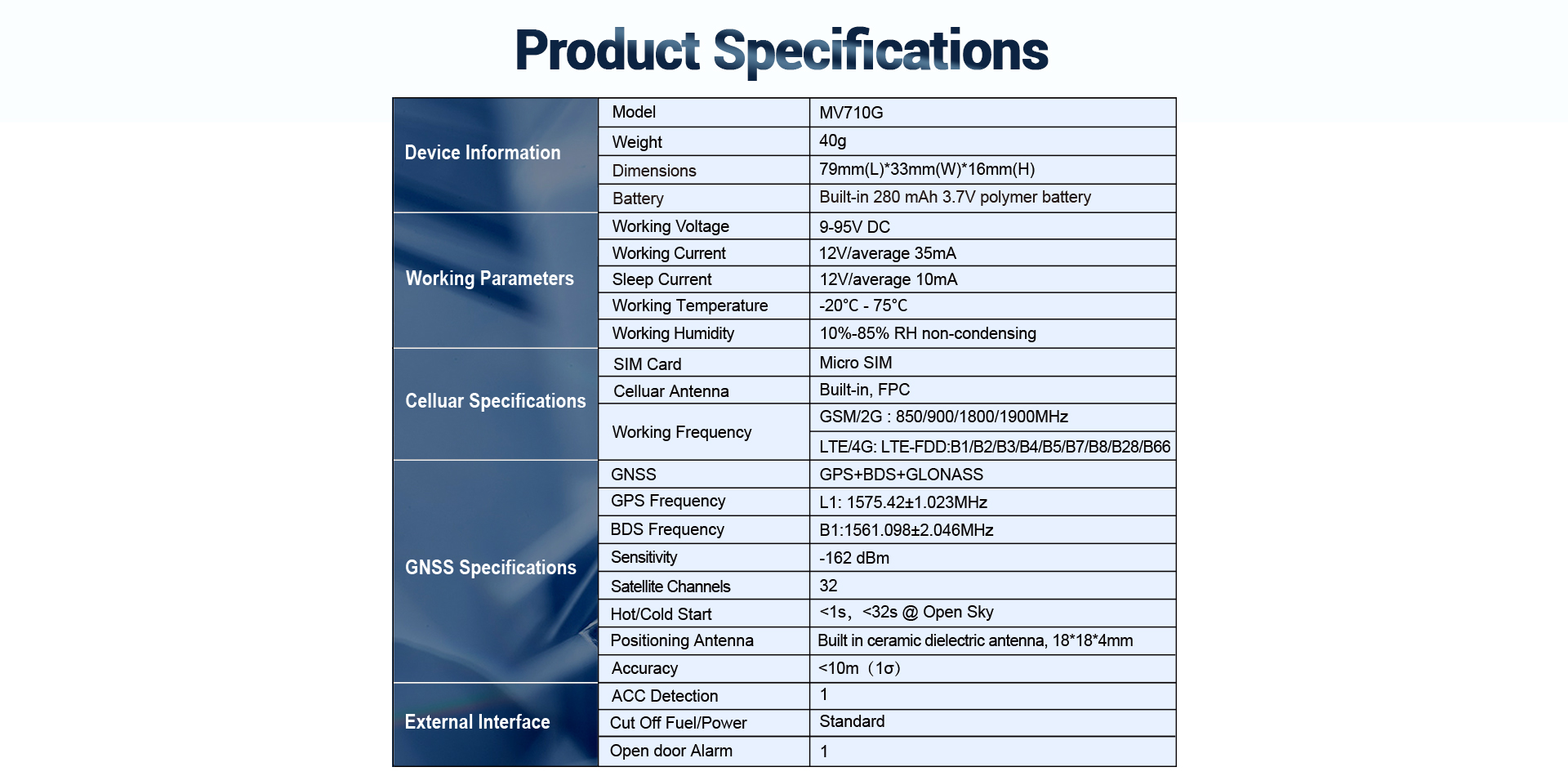

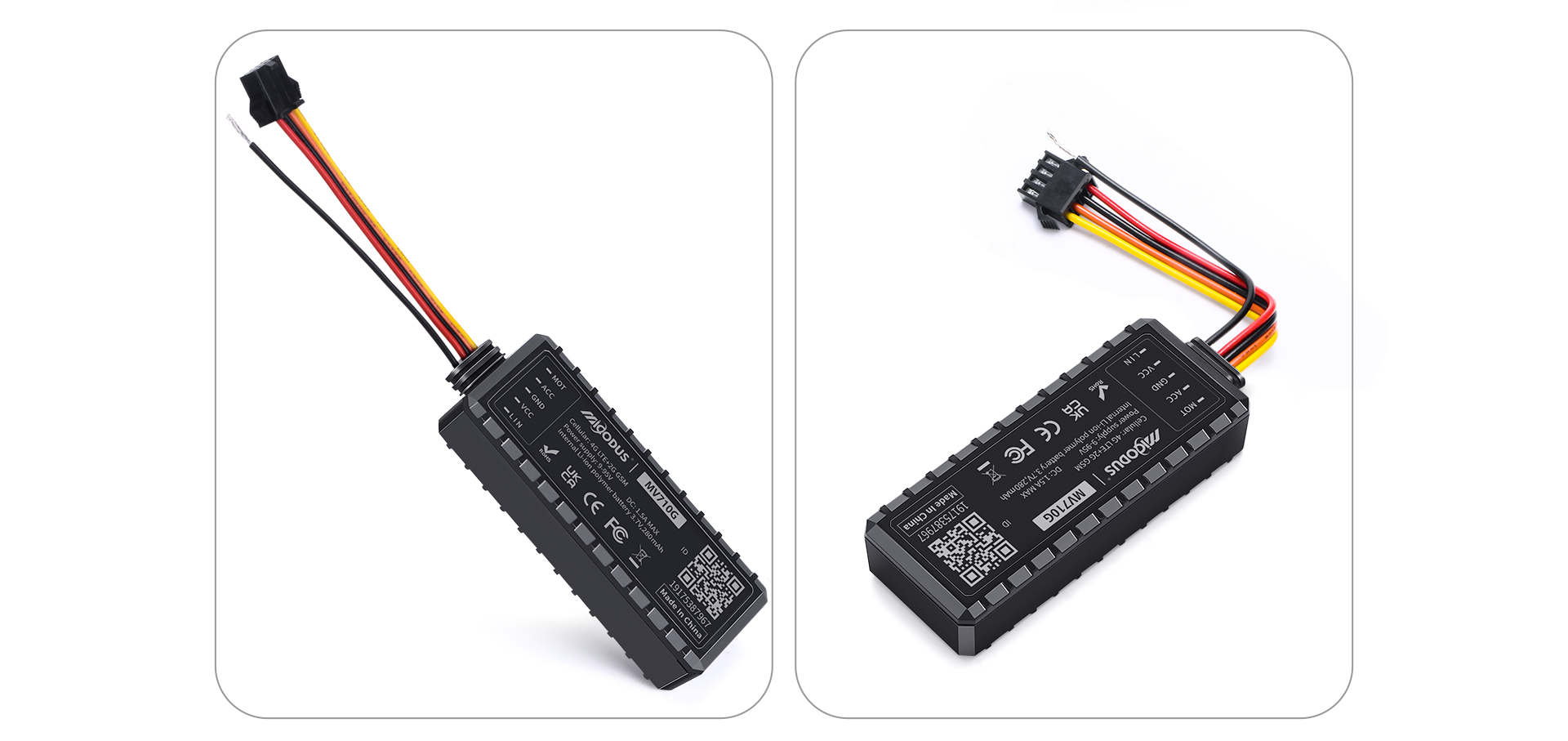

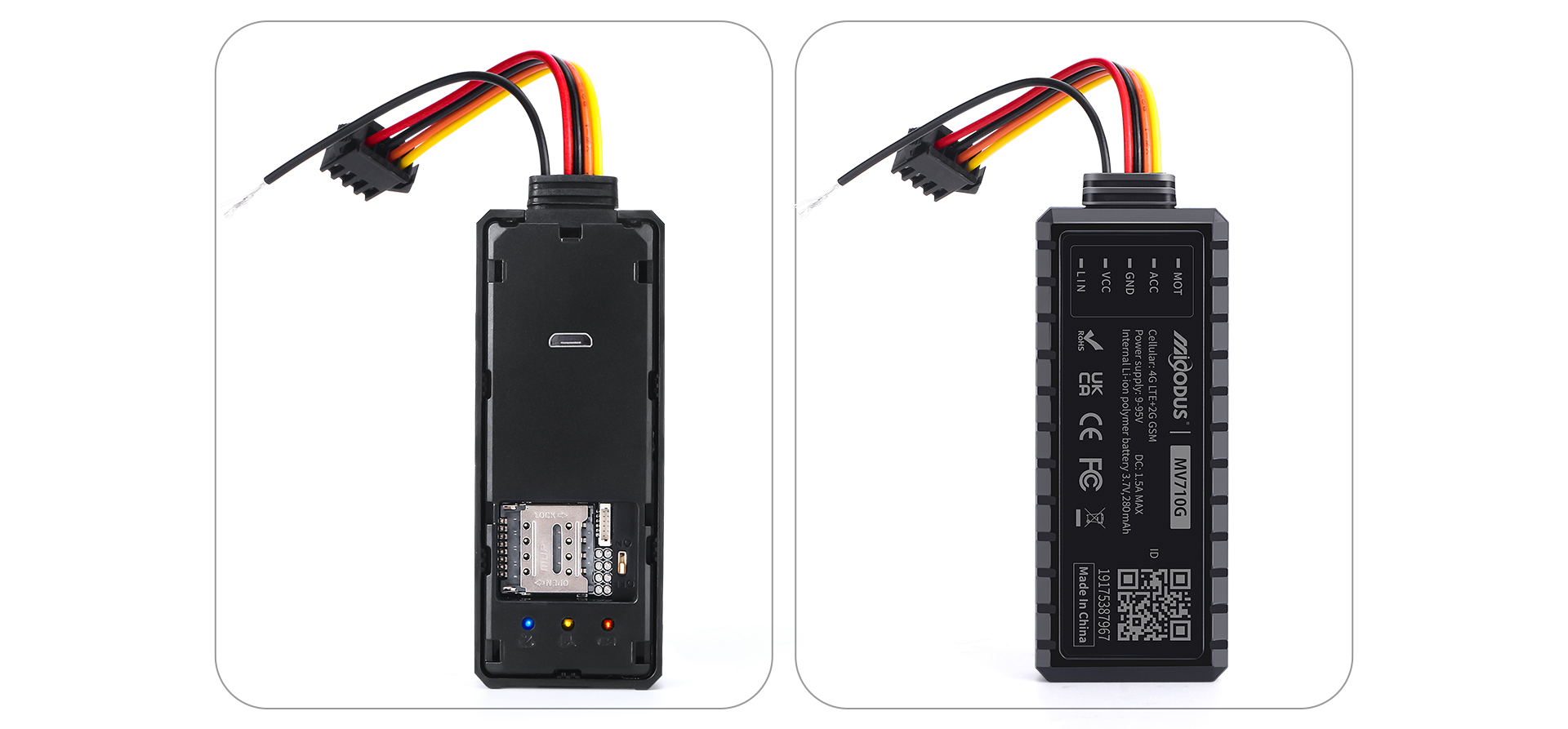

PHYSICAL SPECIFICATION
Dimensions79mm(L)*33mm(W)*16mm(H)
Weight40g
MODULE
Name
Technology
GNSS
Positioning TypeGPS+BDS
GPS AntennaBuilt-in
Cold Start≤32 Seconds
Hot Start≤1 Second
Tracking sensitivity-162 dBm
GPS FrequencyL1: 1575.42±1.023MHz
BDS FrequencyB1:1561.098±2.046MHz

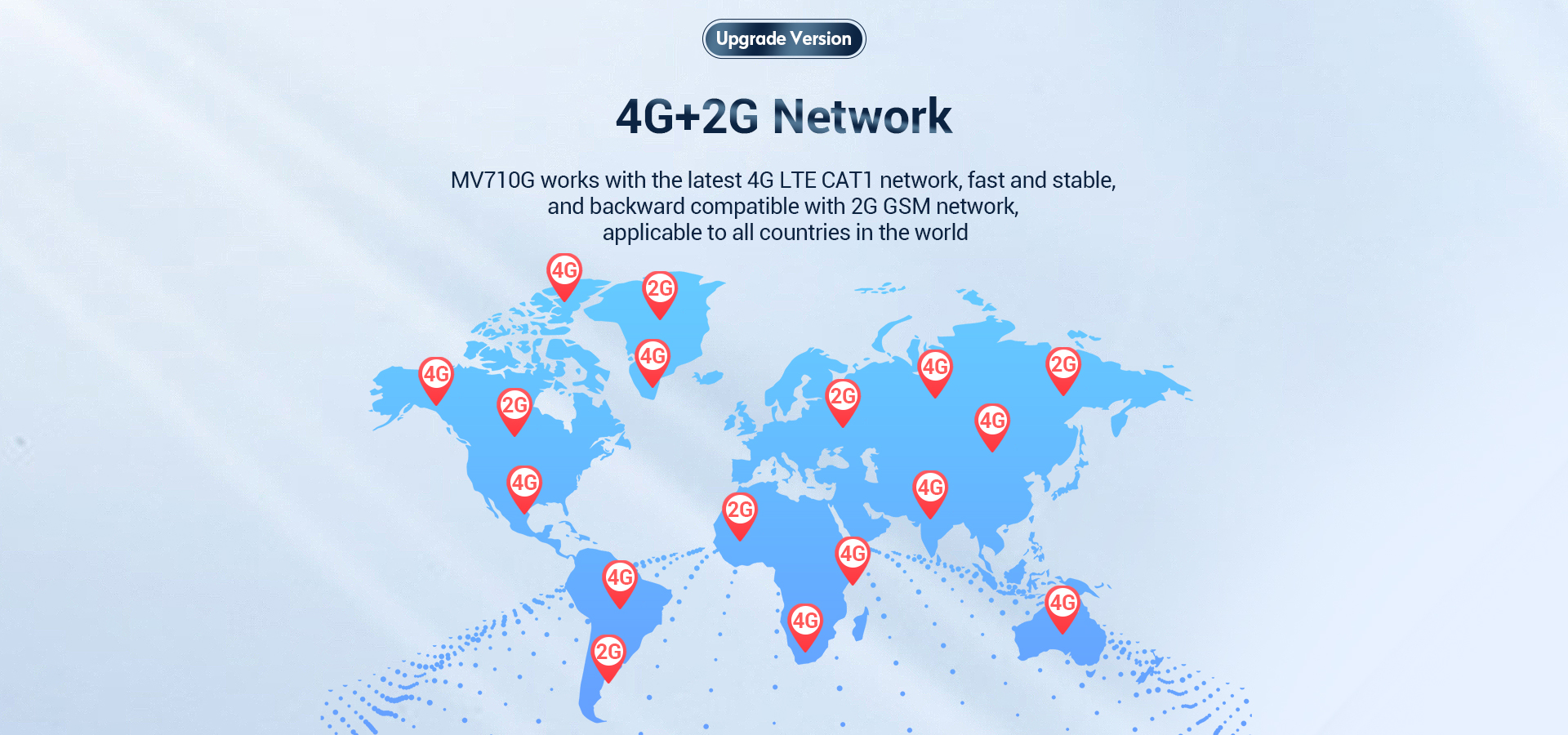

CELLULAR
Working Frequency

LTE/4G: LTE-FDD:B1/B2/B3/B4/B5/B7/B8/B28/B66

GSM/2G : 850/900/1800/1900MHz

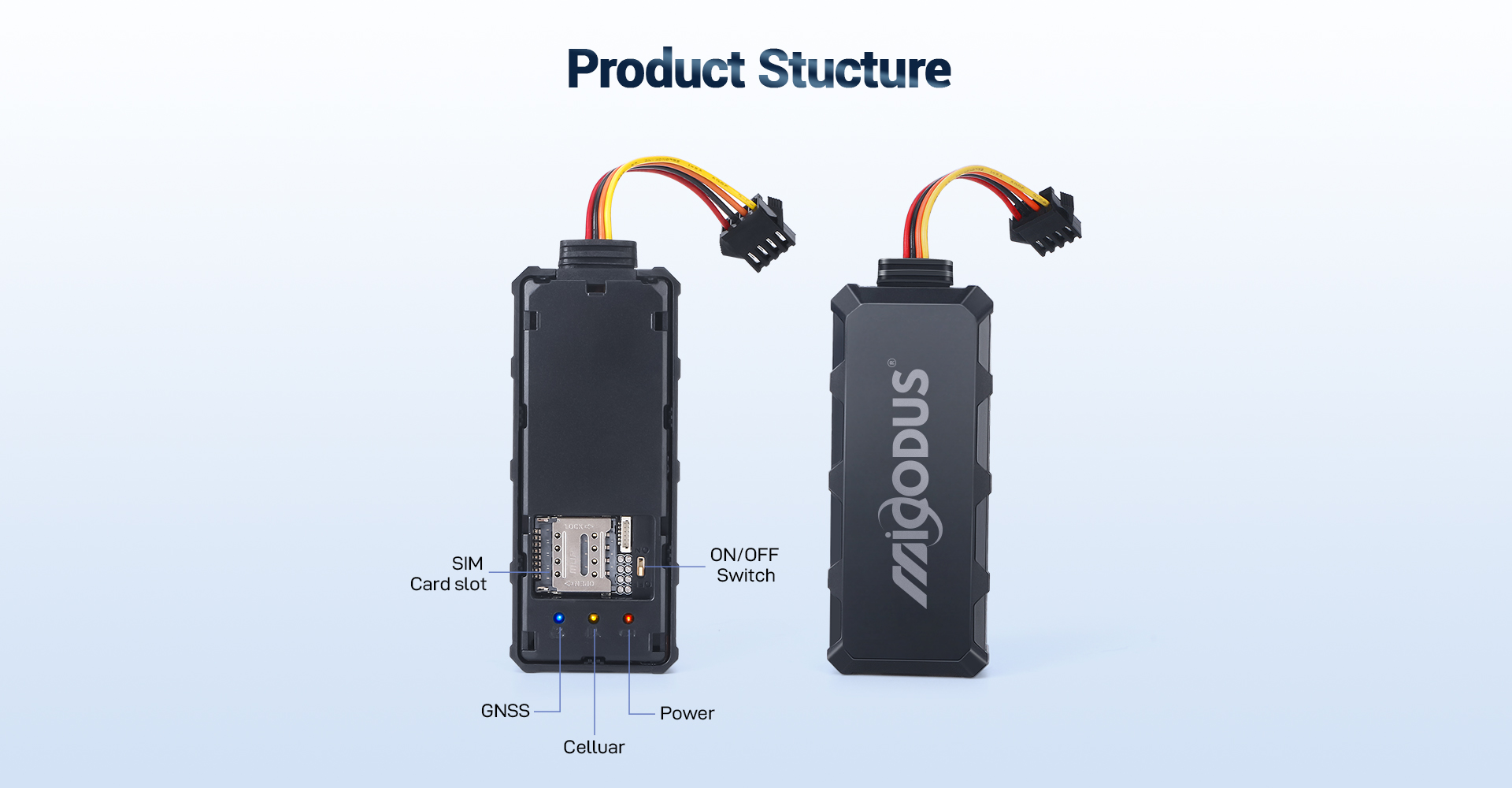

SIM Card

Micro SIM

Cellular AntennaBuilt-in, FPC
POWER
Working VoltageDC 9-95V
Working Current12V/average 35mA
Sleep Current12V/average 10mA
BatteryBuilt-in 60 mAh 3.7V polymer battery
