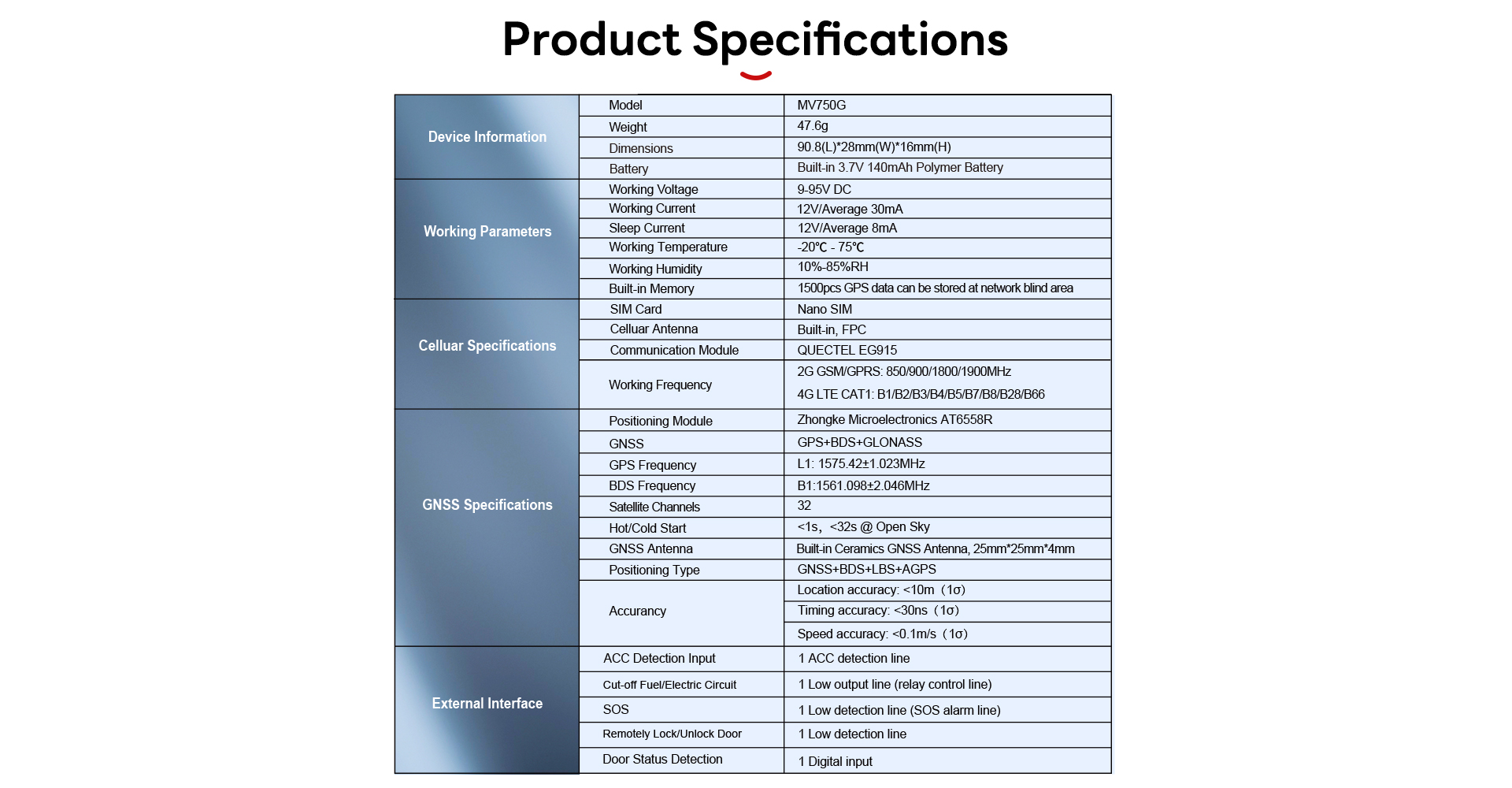

PHYSICAL SPECIFICATION
Dimensions90.8(L)*28mm(W)*16mm(H)
Weight47.6g
Working Parameters
BatteryBuilt-in 3.7V 140mAh Polymer Battery
Working Voltage9-95V DC
Working Current12V/Average 30mA
Sleep Current12V/Average 8mA
Working Temperature-20℃ - 75℃
Working Humidity10%-85%RH

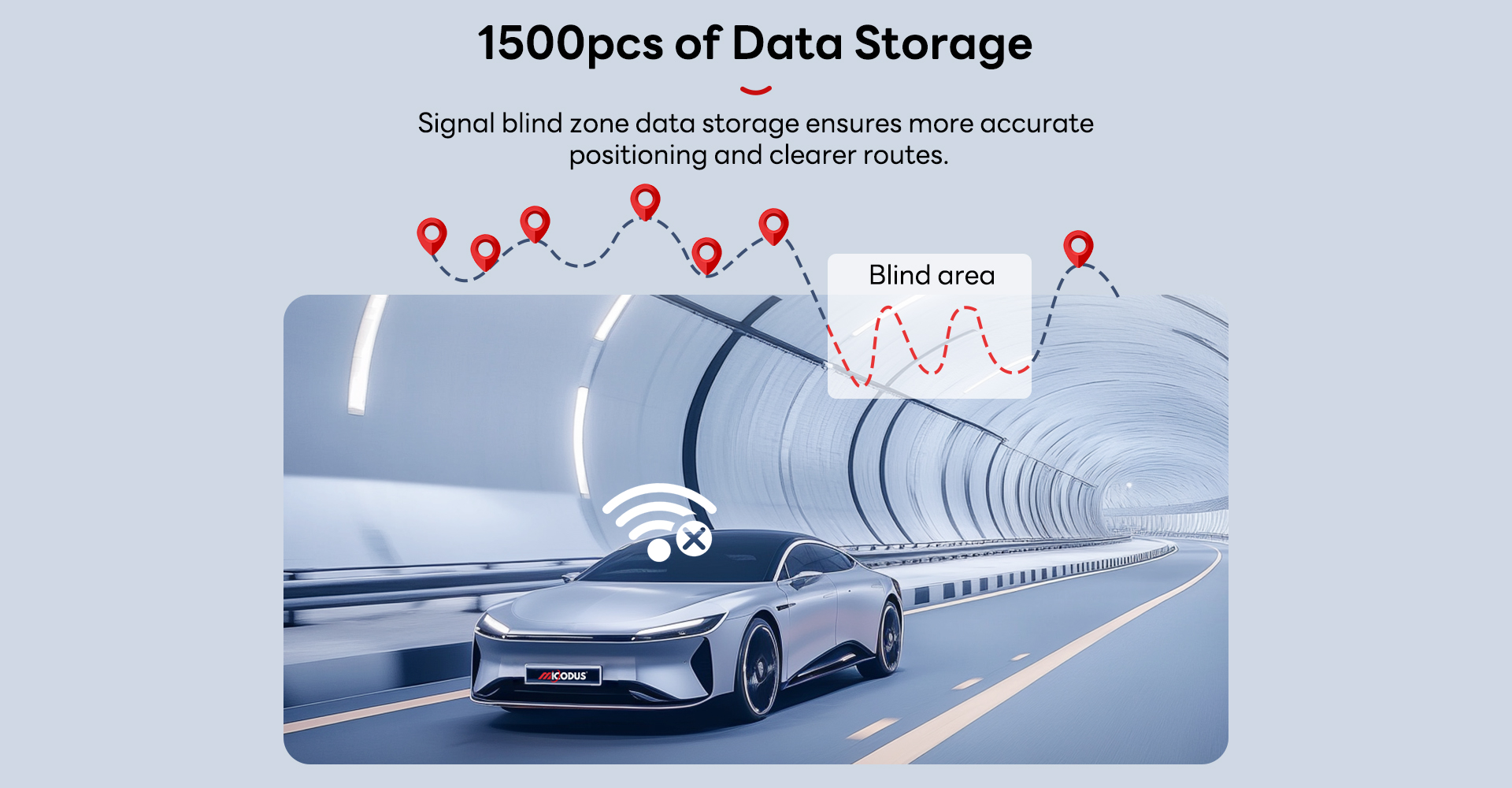

Built-in Memory1500pcs GPS data can be stored at network blind area
GNSS Specifications
Model of Positioning ModuleZhongke Microelectronics AT6558R

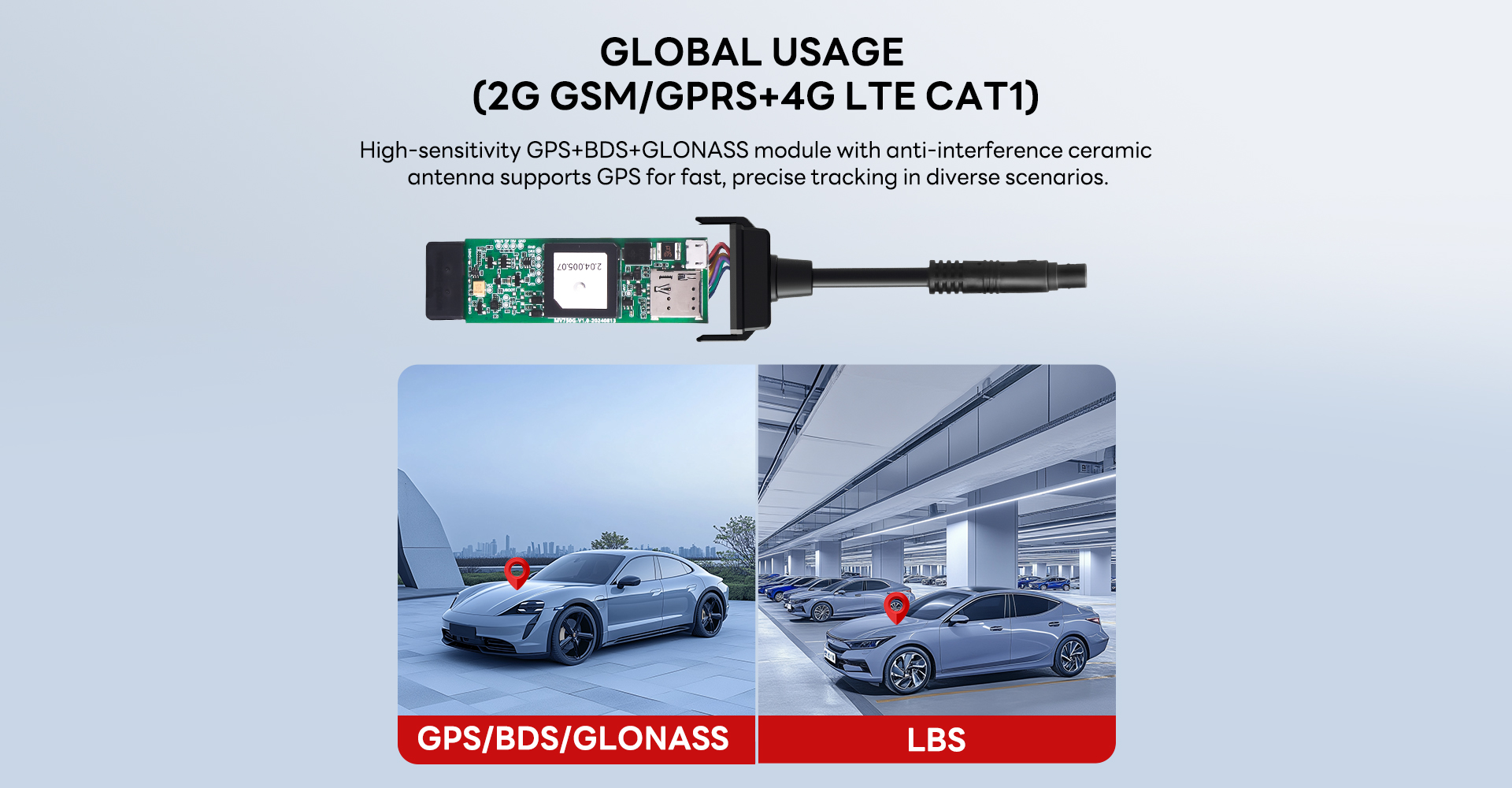

GNSSGPS+BDS+GLONASS
GPS FrequencyL1: 1575.42±1.023MHz
BDS FrequencyB1:1561.098±2.046MHz
Satellite Channels32
Hot/Cold Start<1s，<32s @ Open Sky
GNSS AntennaBuilt-in Ceramics GNSS Antenna, 25mm*25mm*4mm
Positioning TypeGNSS+BDS+LBS+AGPS
AccurancyLocation accuracy: <10m（1σ）
Timing accuracy: <30ns（1σ）
Speed accuracy: <0.1m/s（1σ）
CELLULAR
SIM CardNano SIM
Working Frequency

2G GSM/GPRS: 850/900/1800/1900MHz

4G LTE CAT1: B1/B2/B3/B4/B5/B7/B8/B28/B66
Celluar Antenna

Built-in, FPC

Model of Communication ModuleQUECTEL EG915

External Interface

ACC Detection1 ACC detection line
Cut-off Fuel/Electric Circuit1 Low output line (relay control line)
SOS1 Low detection line (SOS alarm line)
Remotely Lock/Unlock Door1 Low detection line
Door Status Detection1 Digital input
