PHYSICAL SPECIFICATION

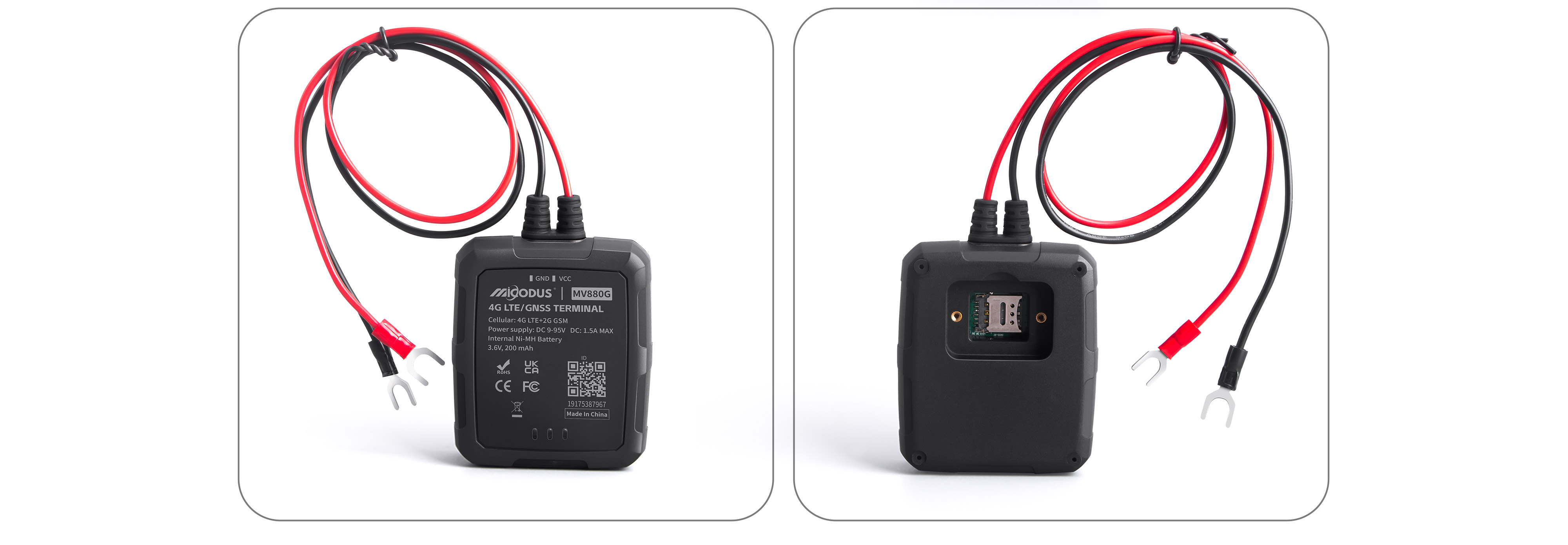

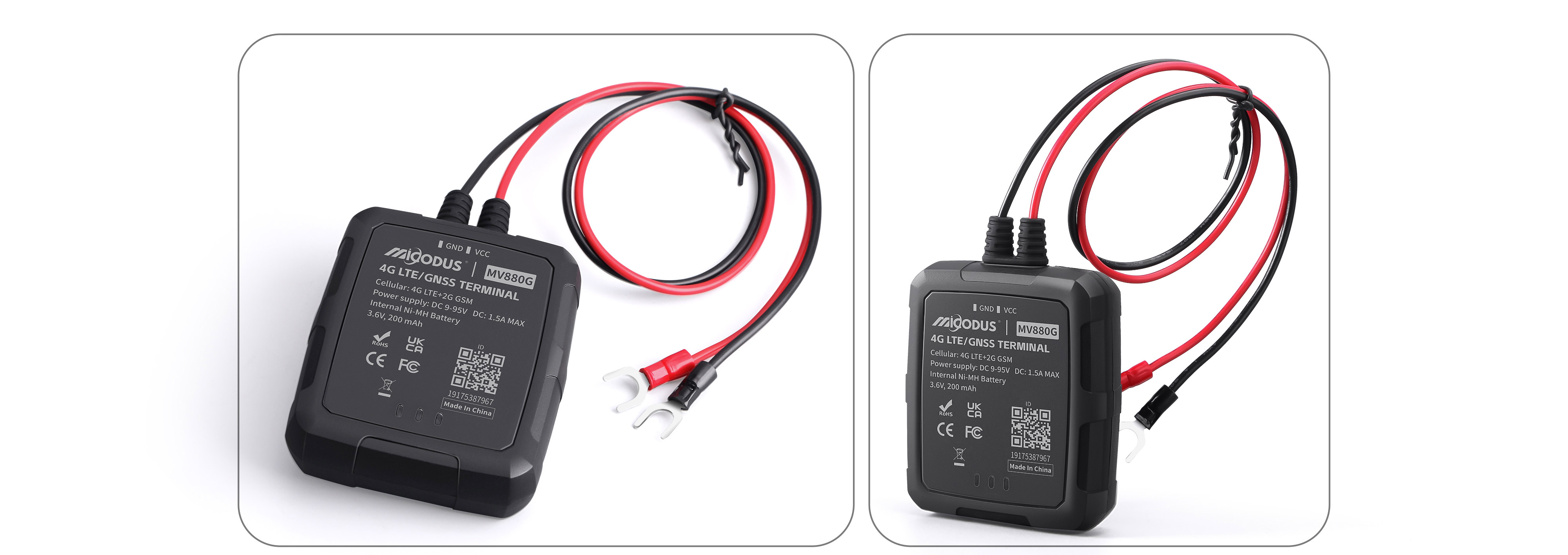

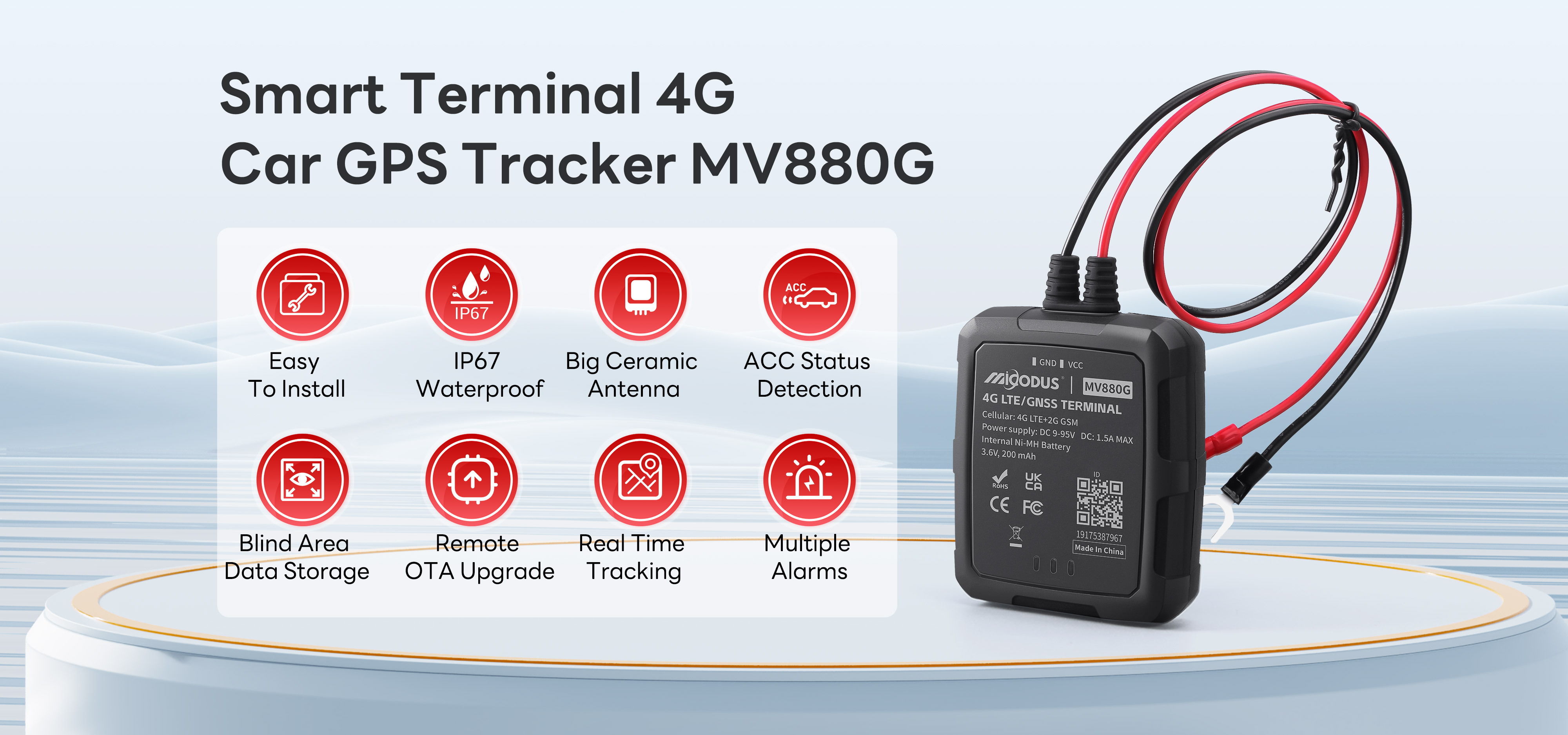

Model MV880G

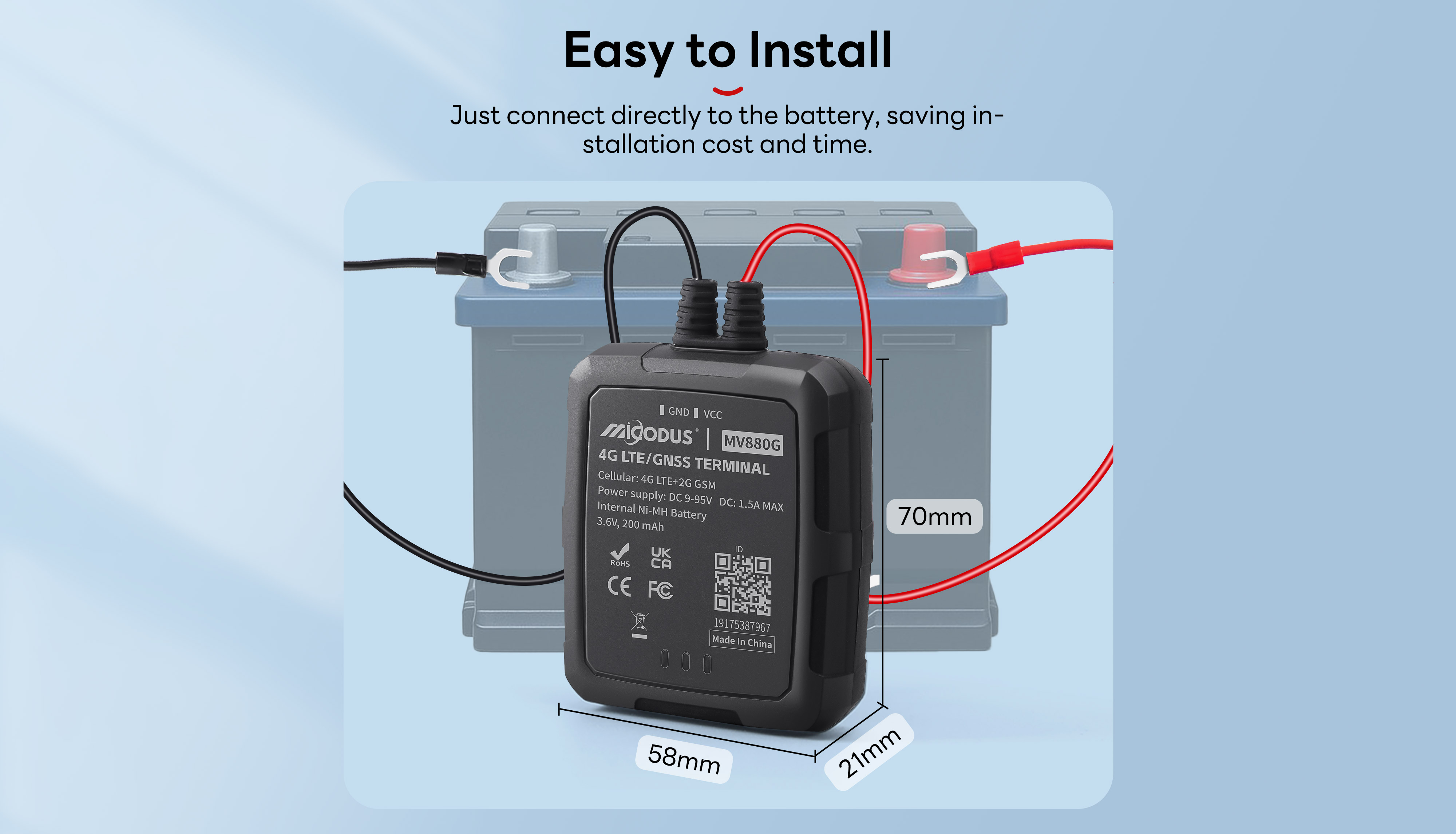

Dimensions70mm(L)*58(W)*21mm(H)
Weight104.3g
Working Parameters
BatteryNI-MH battery  AAAAA200T*3  3.6V  200mAh
Working Voltage9-95V DC
Working Current12V/Average 34.90mA
Sleep Current12V/Average 5.98mA
Working Temperature-20℃ - 75℃
Working Humidity10%-85%RH
Built-in Memory720pcs GPS data can be stored at network blind area
GNSS Specifications
Model of Positioning ModuleBeken Corporation BK1661
GNSS AntennaBuilt-in Ceramics GNSS Antenna, 35mm*35mm*4mm
GNSSL1 Bands: GPS L1, Beidou B1, GLONASS G1
GPS FrequencyL1: 1575.42±1.023MHz
BDS FrequencyB1:1561.098±2.046MHz
Satellite Channels120
Hot/Cold Start<1s，<28s @ Open Sky
Positioning TypeGNSS+BDS+LBS+AGPS
AccurancyLocation accuracy: <1.5mCEP
AGPS First positioning time< 1.5 s
Timing accuracy: <30ns（1σ）
Speed accuracy: <0.1m/s（1σ）
CELLULAR
SIM CardNano SIM
Working Frequency

2G GSM/GPRS: 850/900/1800/1900MHz

4G LTE-FDD： B1/B2/B3/B4/B5/B7/B8/B20/B28/B66        LTE-TDD：B34/B38/B39/B40/B41

Celluar Antenna

Built-in, FPC

Model of Communication ModuleSIMCOM A7670G


External Interface
VINMain power input
GND

Ground electrode
