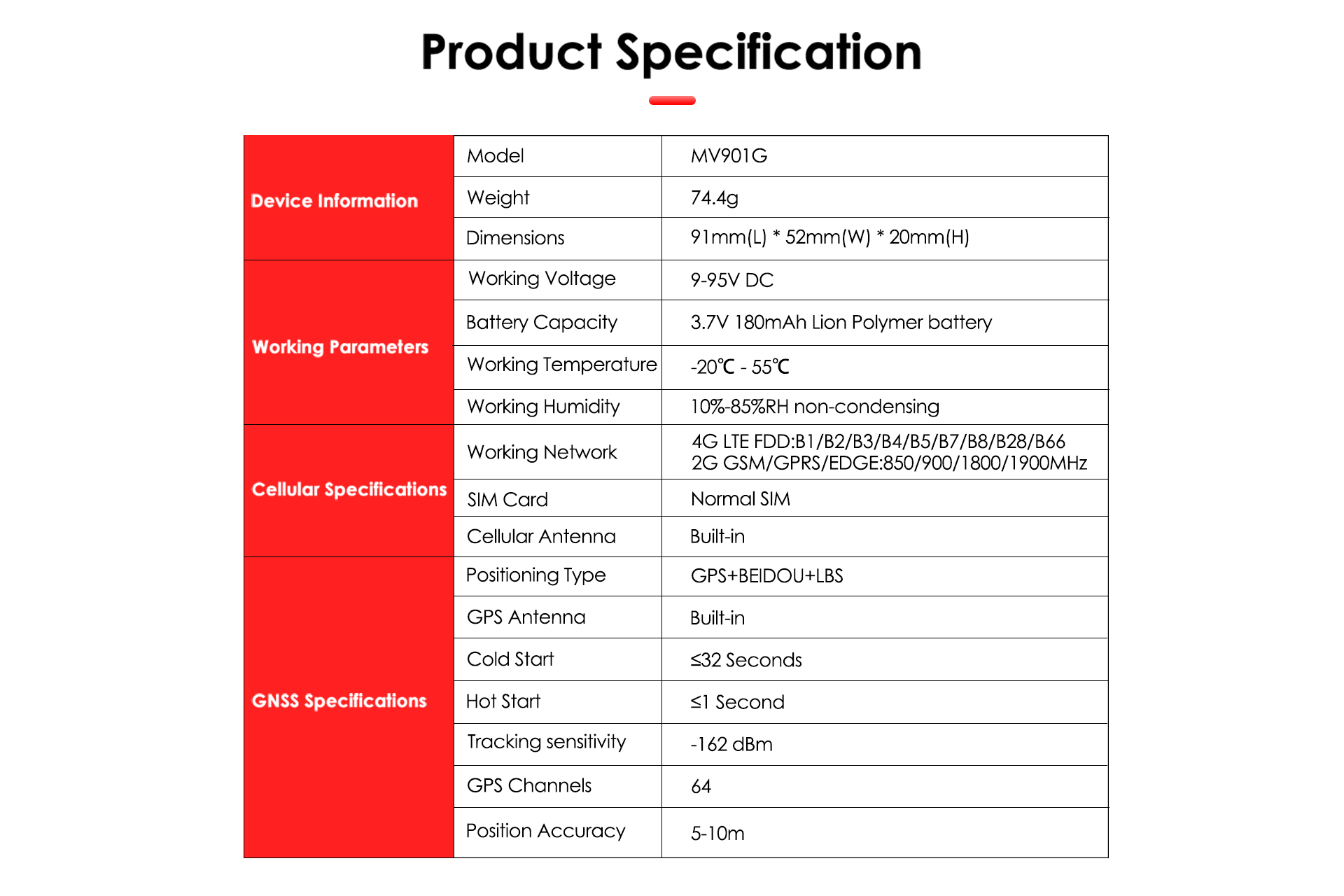

PHYSICAL SPECIFICATION
Dimensions91 x 52 x 20mm (L x W x H)
Weight74.4g
GNSS
Positioning TypeGPS+BEIDOU+LBS
GPS AntennaBuilt-in
Cold Start≤32 Seconds
Hot Start≤1 Second
Tracking sensitivity-162 dBm
GPS Channels64
Position Accuracy5-10m
CELLULAR
Working Network

2G GSM/GPRS/EDGE:850/900/1800/1900MHz

4G LTE FDD:B1/B2/B3/B4/B5/B7/B8/B28/B66

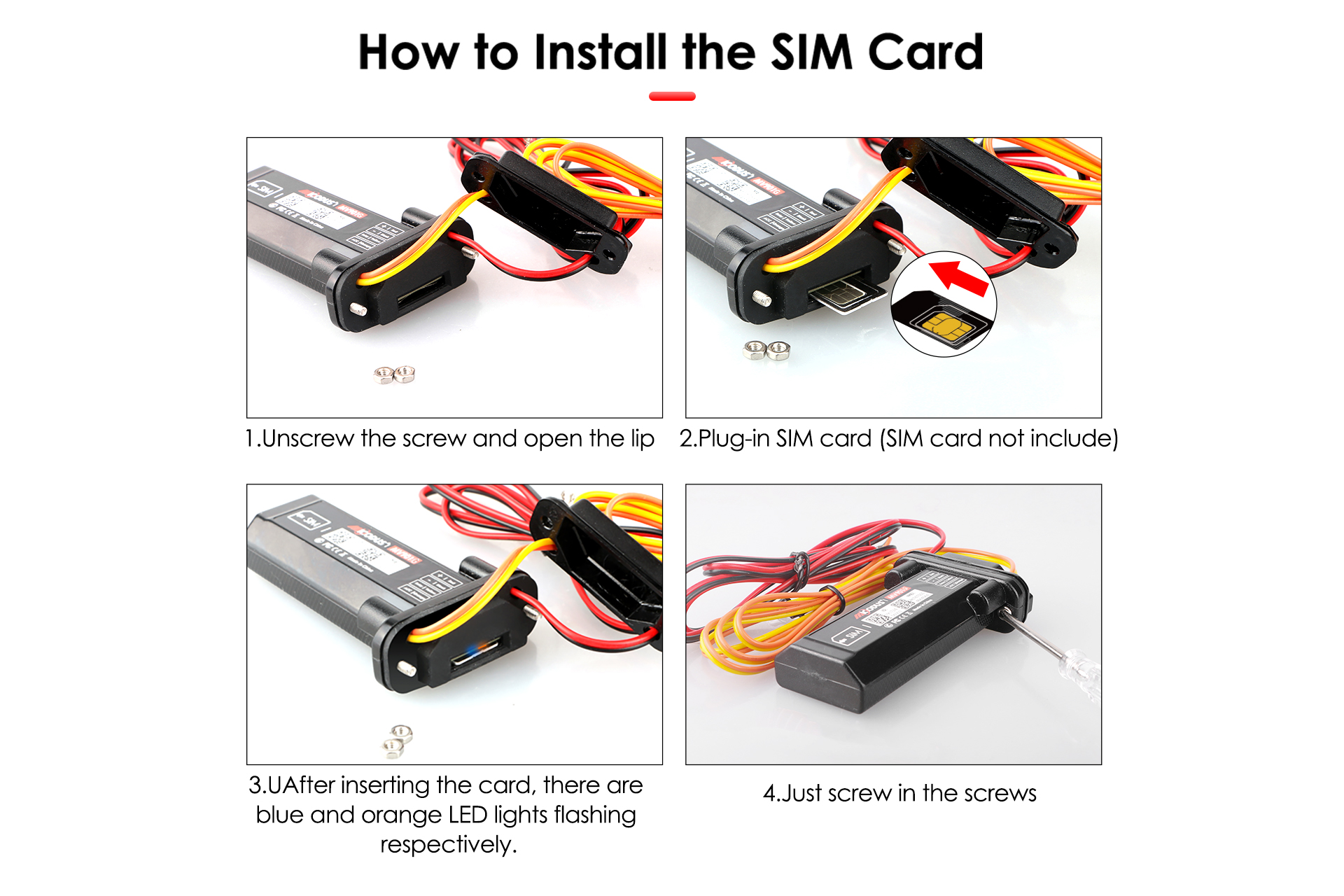

SIM CardNormal SIM
Cellular AntennaBuilt-in
POWER
Working Voltage9-95V DC
Battery Capacity3.7V 180mAh Li-ion Battery
Working Temperature-20℃ - 55℃
Working Humidity10%-85%RHnon-condensing
