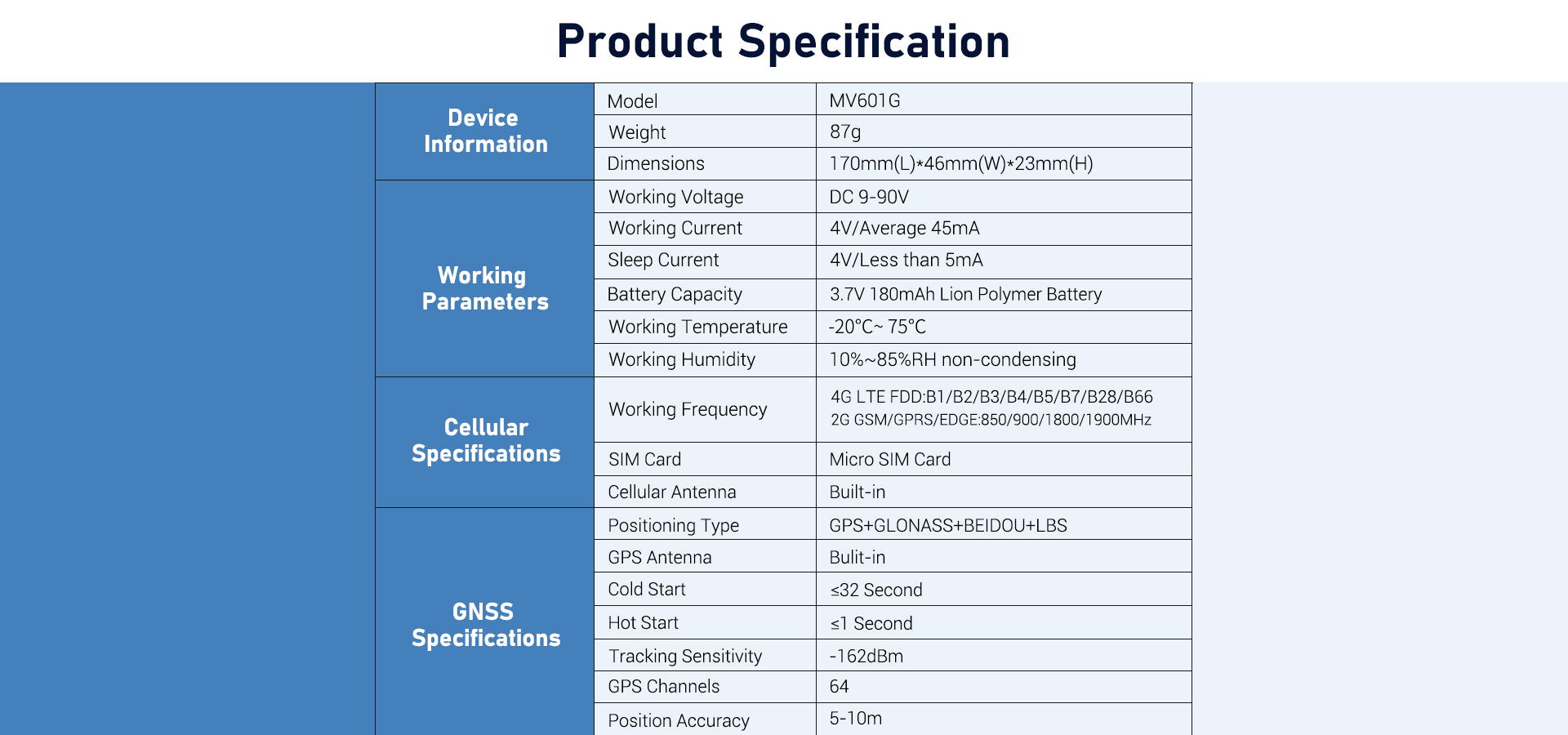

Device Information

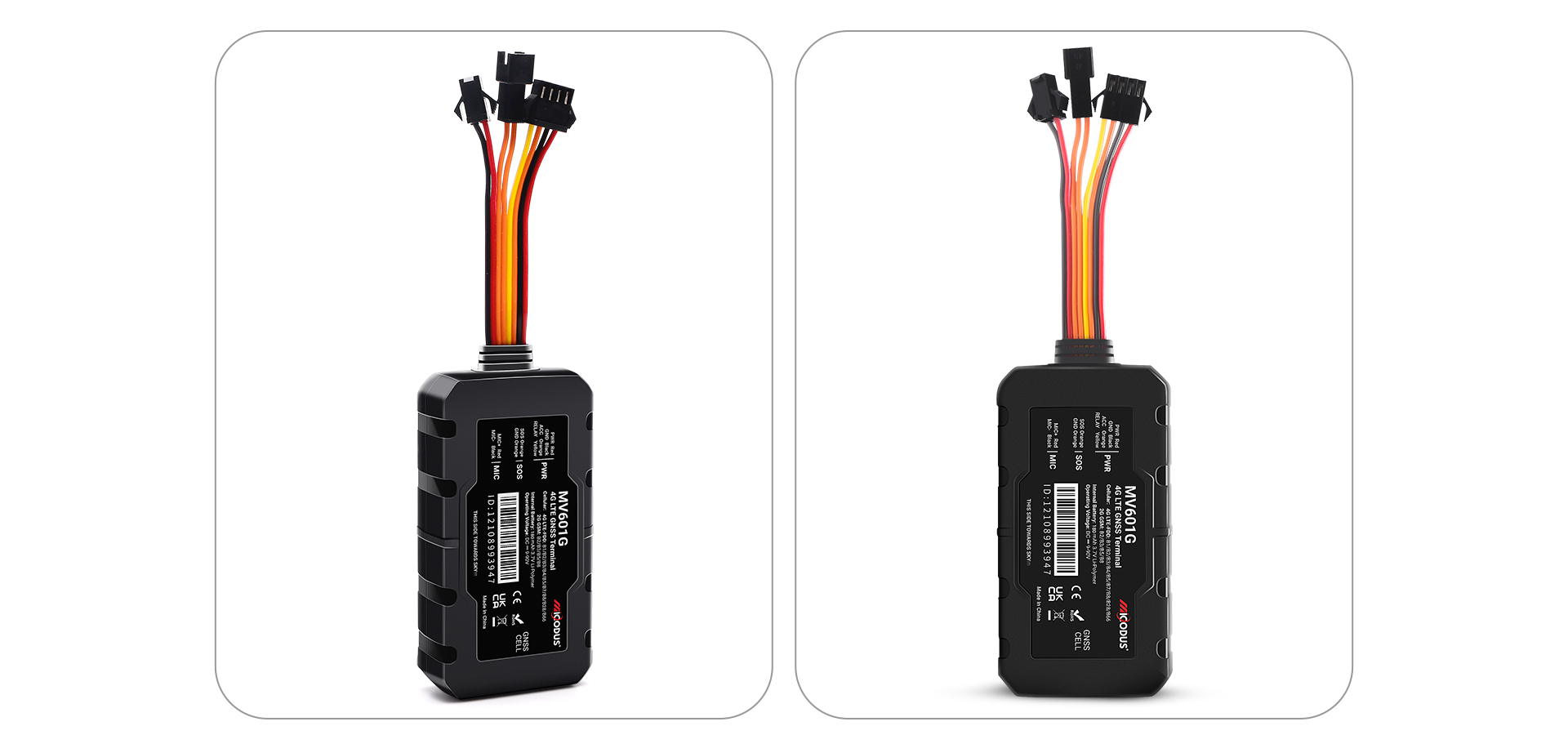

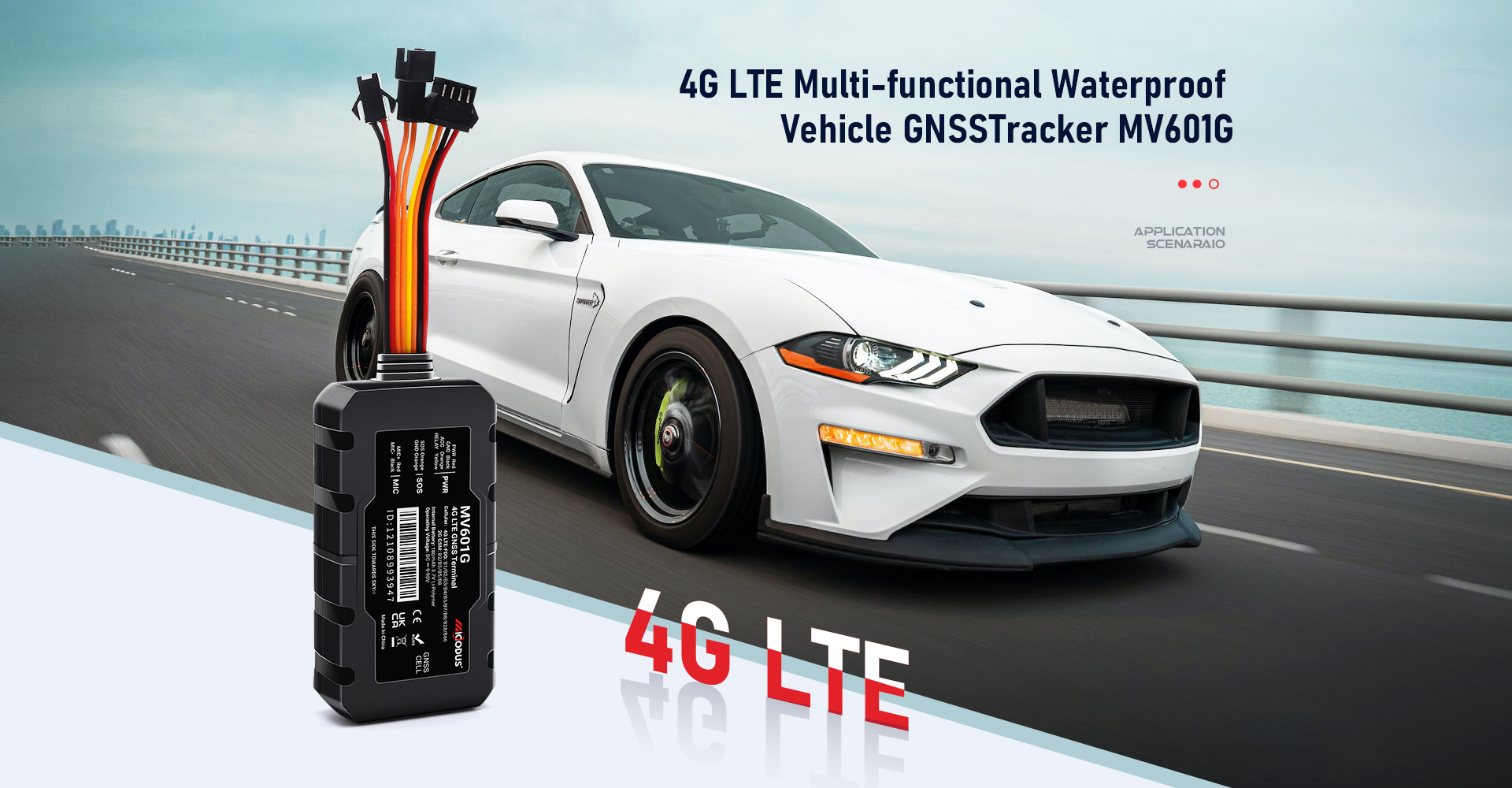

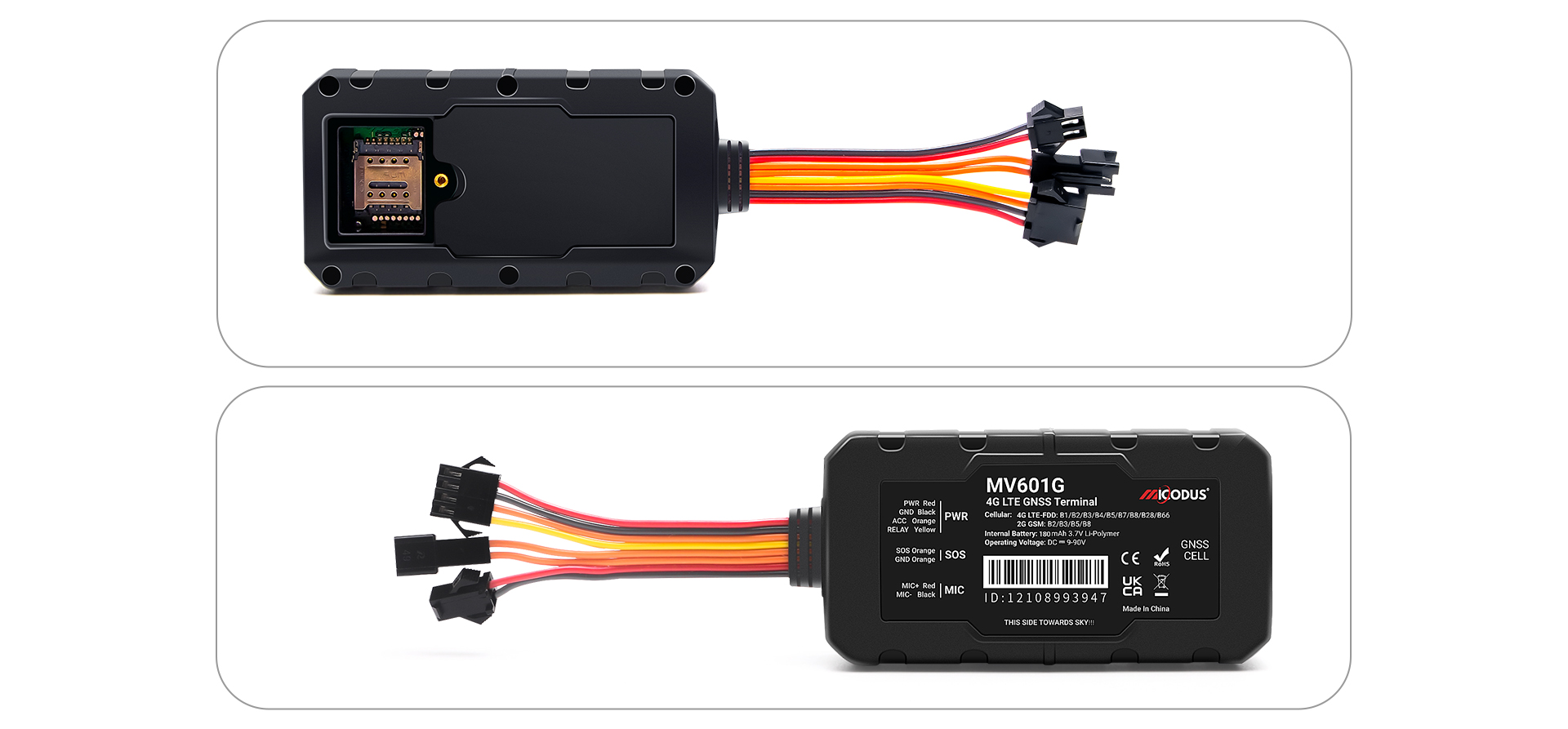

ModelMV601G
Dimensions170 x 46 x 23mm (L x W x H)
Weight87g
Working Parameters
Working VoltageDC 9-90V
Working Current4V/Average 45mA
Sleep Current4V/Less than 5mA
Battery Capacity3.7V 180mAh Lion Polymer Battery
Working Temperature-20℃~ 75℃
Working Humidity10%~85%RH non-condensing

GNSS Specifications

Positioning TypeGPS+GLONASS+BEIDOU+LBS
GPS AntennaBulit-in
Cold Start≤32 Second
Hot Start≤1 Second
Tracking Sensitivity-162dBm
GPS Channels64
Position Accuracy

5-10m

CellularSpecifications

Working Frequency

4G LTE FDD:B1/B2/B3/B4/B5/B7/B28/B66

2G GSM/GPRS/EDGE:850/900/1800/1900MHz

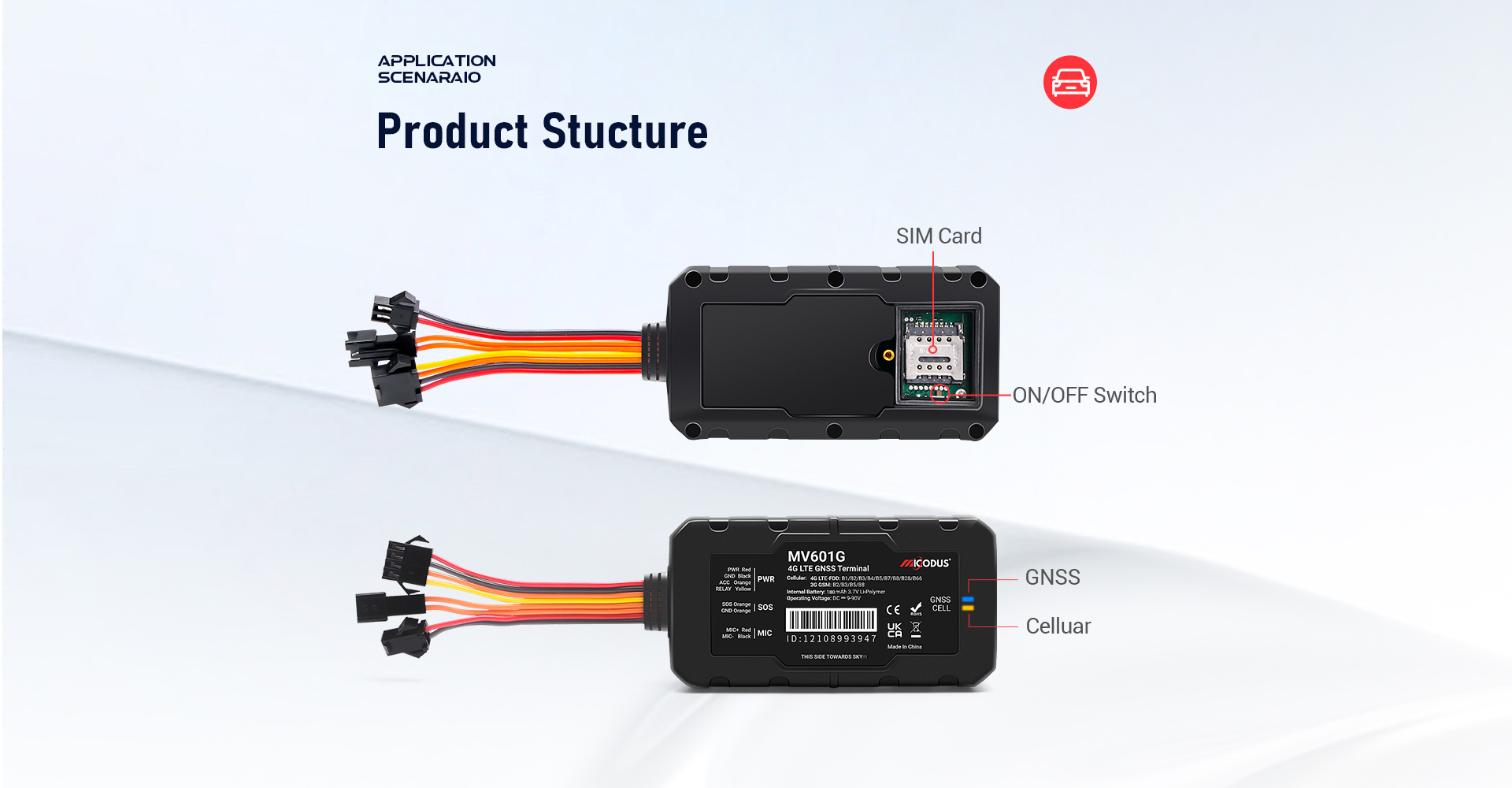

SIM Card

Micro SIM Card

Cellular AntennaBuilt-in
