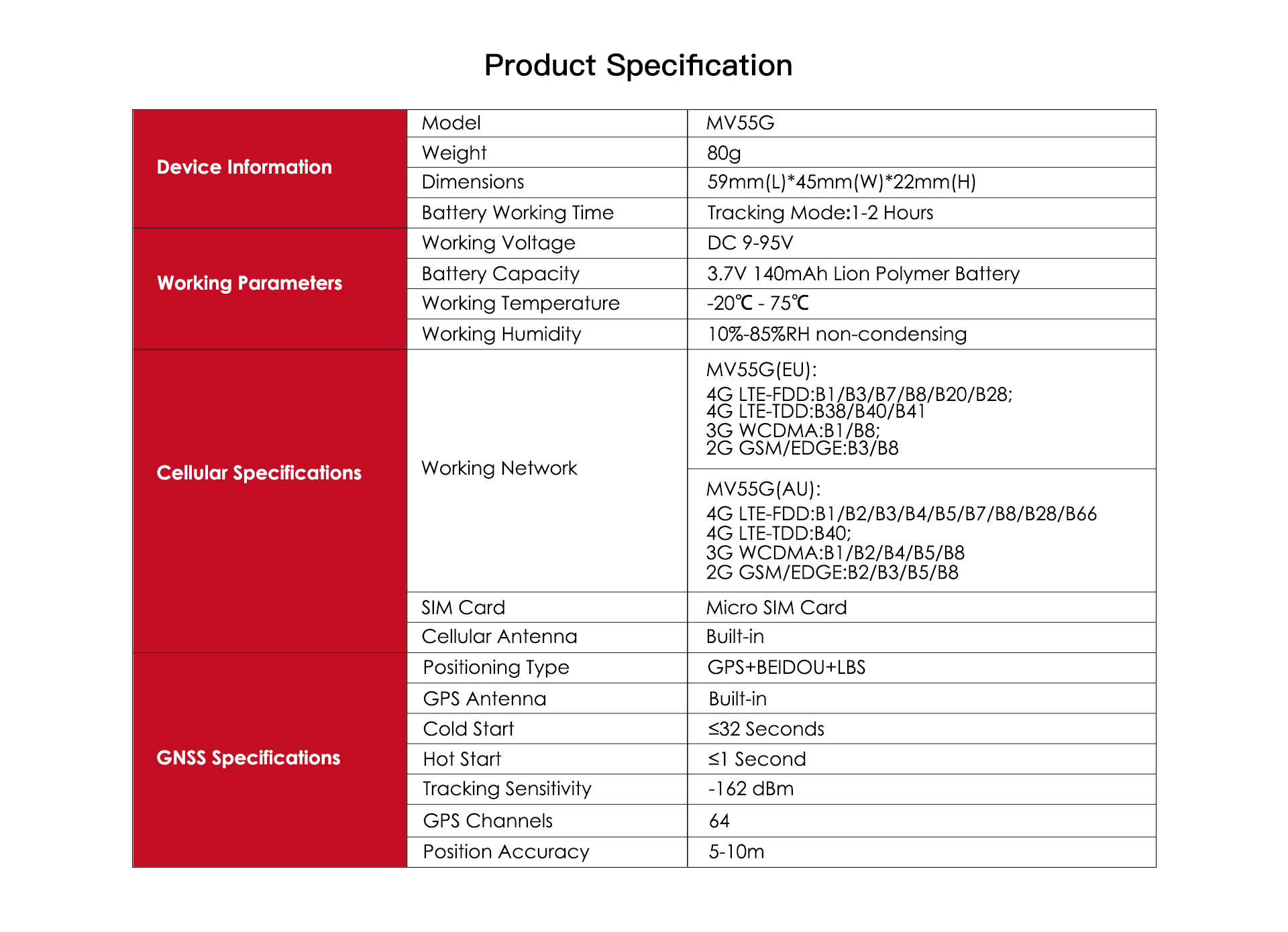

PHYSICAL SPECIFICATION

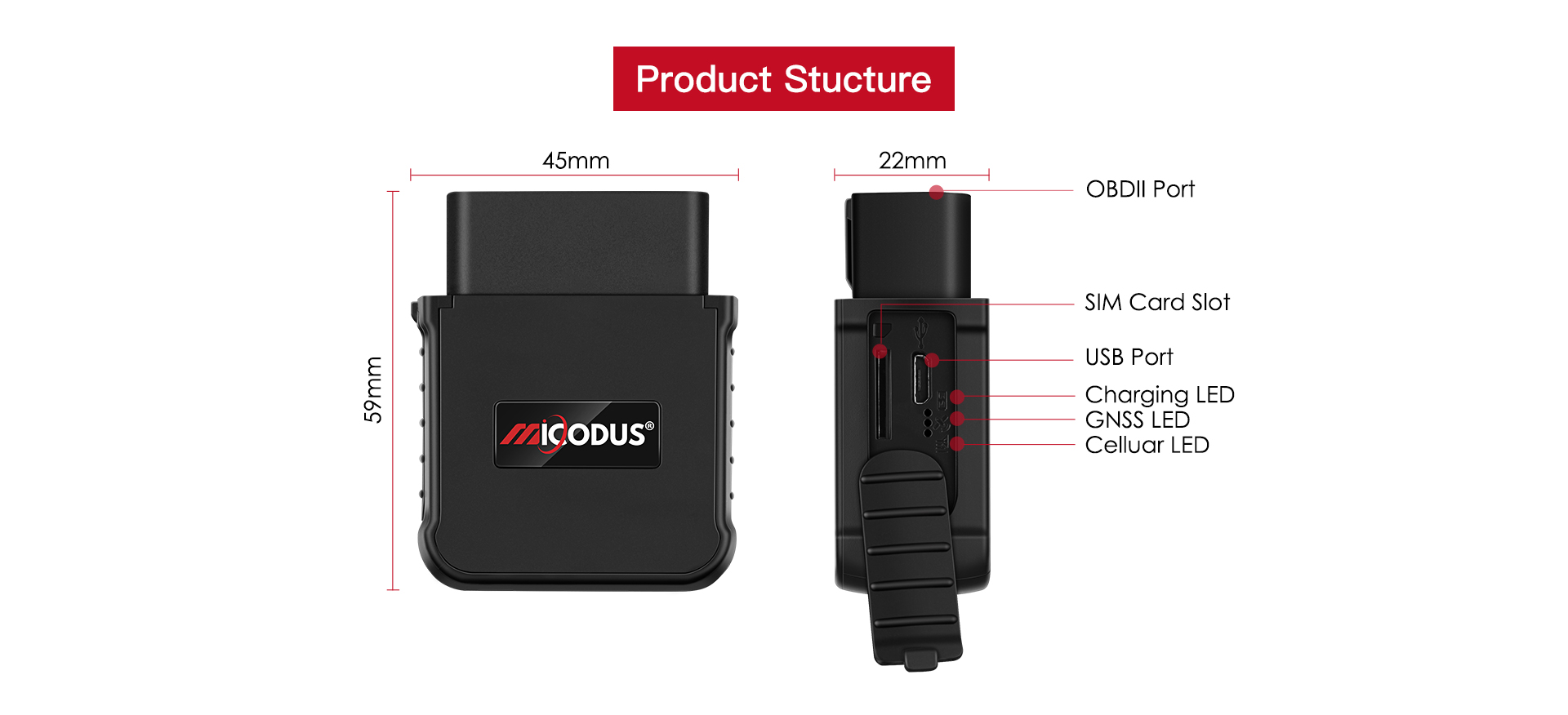

Dimensions59 x 45 x 22mm (L x W x H)
Weight80g
MODULE
NameQuectel EC200-EU, Quectel EC200-AU
TechnologyLTE(CAT1)/3G(UMTS/HSPA)/2G(GSM/GPRS)/GNSS
GNSS
GNSSGPS, GLONASS, GALILEO, BEIDOU, QZSS, AGPS
Receiver64 Channels
Tracking Sensitivity-162dBm
Position Accuracy< 2.5m CEP
Hot start< 1 s
Warm start< 25 s
Cold start< 32 s
CELLULAR
Technology4G LTE CAT1+3GUMTS/HSPA+2G GSM/EDGE
Bands

MV55G(EU)

4G LTE-FDD: B1/B3/B7/B8/B20/B28

4G LTE-TDD: B38/B40/B41

3G WCDMA: B1/B8

2G GSM/EDGE: B3/B8


MV55G(AU)

4G LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B28/B66

4G LTE-TDD: B40

3G WCDMA: B1/B2/B4/B5/B8

2G GSM/EDGE: B2/B3/B5/B8

POWER

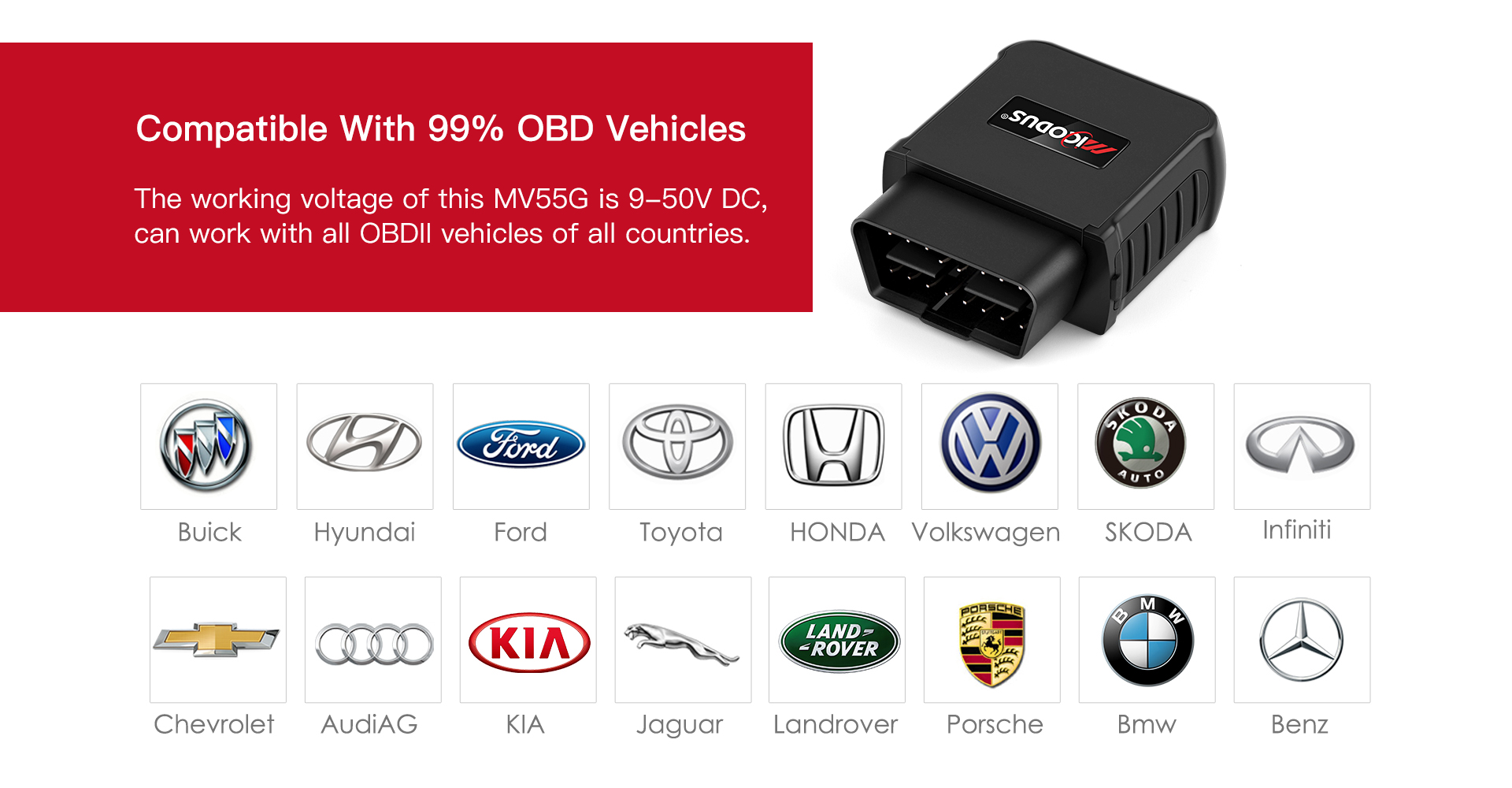

Input voltage range9-50V DC with overvoltage protection

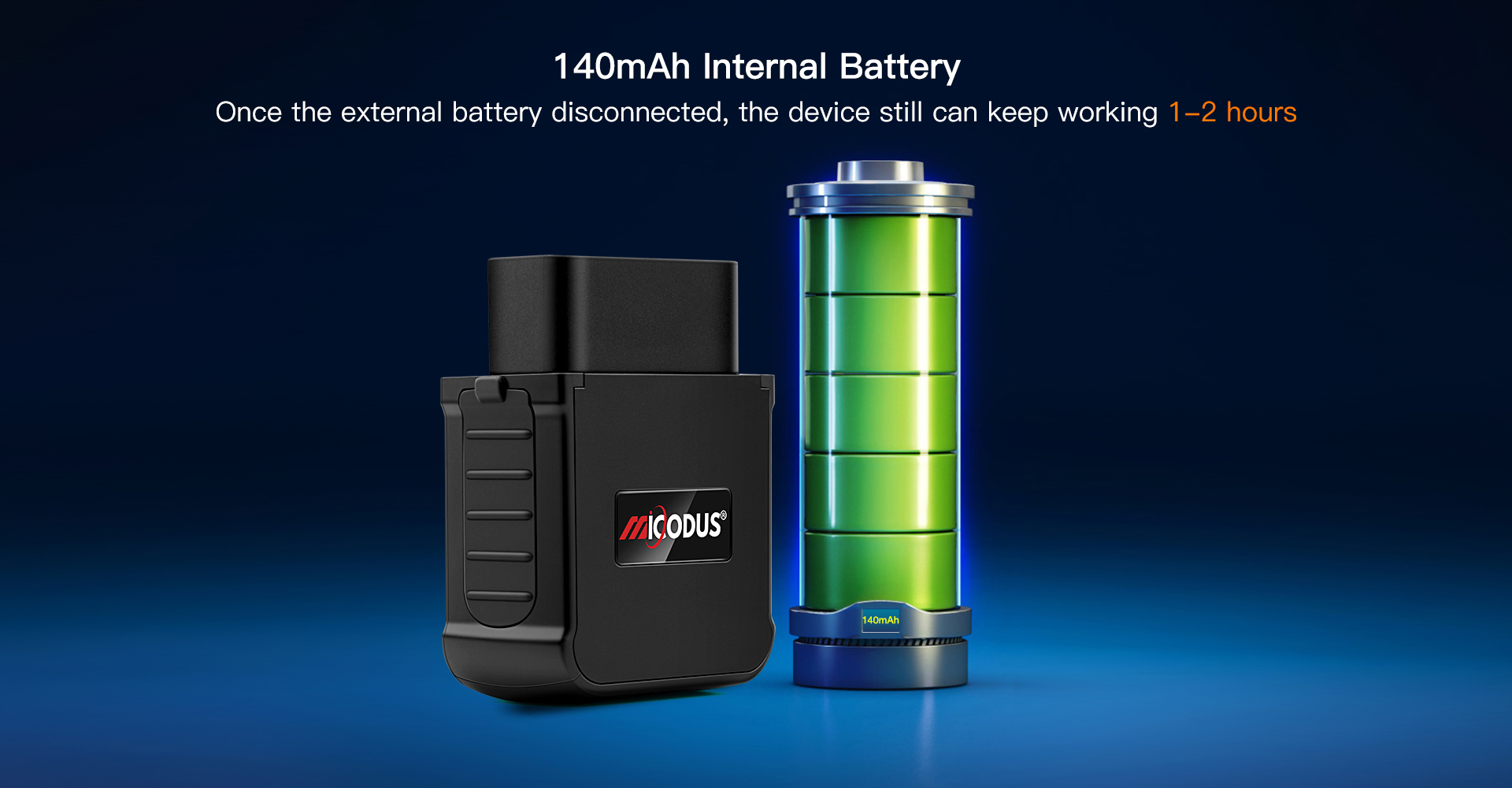

Internal Back-up battery140 mAh Li-Ion battery 3.7V
