PHYSICAL SPECIFICATION
Dimensions31 x 31 x 57mm (L x W x H)
Weight53g
MODULE
Name
Technology
GNSS
Positioning TypeGPS+GLONASS+LBS
GPS AntennaBuilt-in
Cold Start≤32 Seconds
Hot Start≤1 Second
Tracking sensitivity-162 dBm
GPS Channels64
Position Accuracy5-10m
CELLULAR
Working Frequency

2G GSM/GPRS: 850/900/1800/1900MHz

SIM Card

Nano SIM Card

Cellular AntennaBuilt-in
POWER

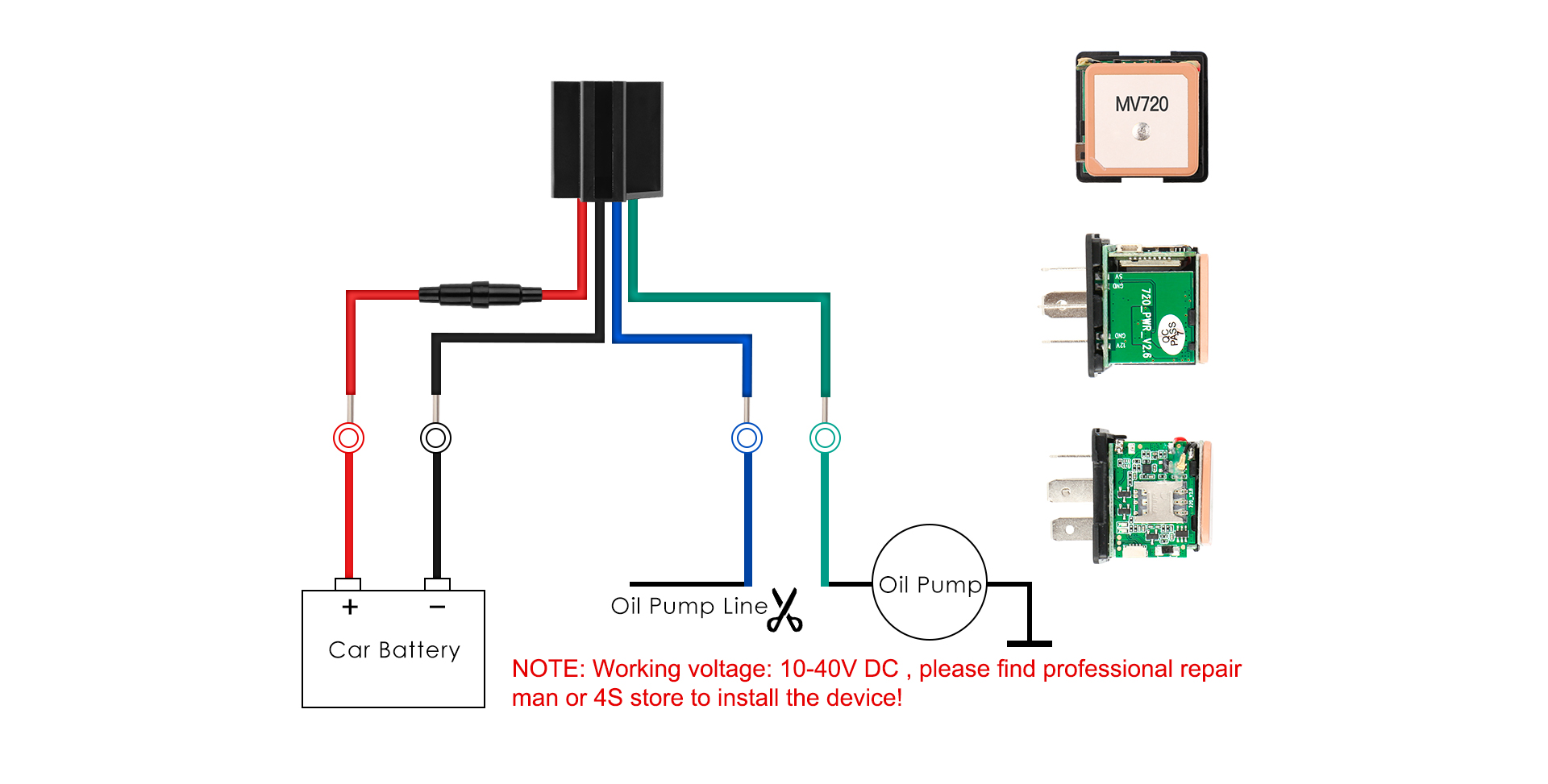

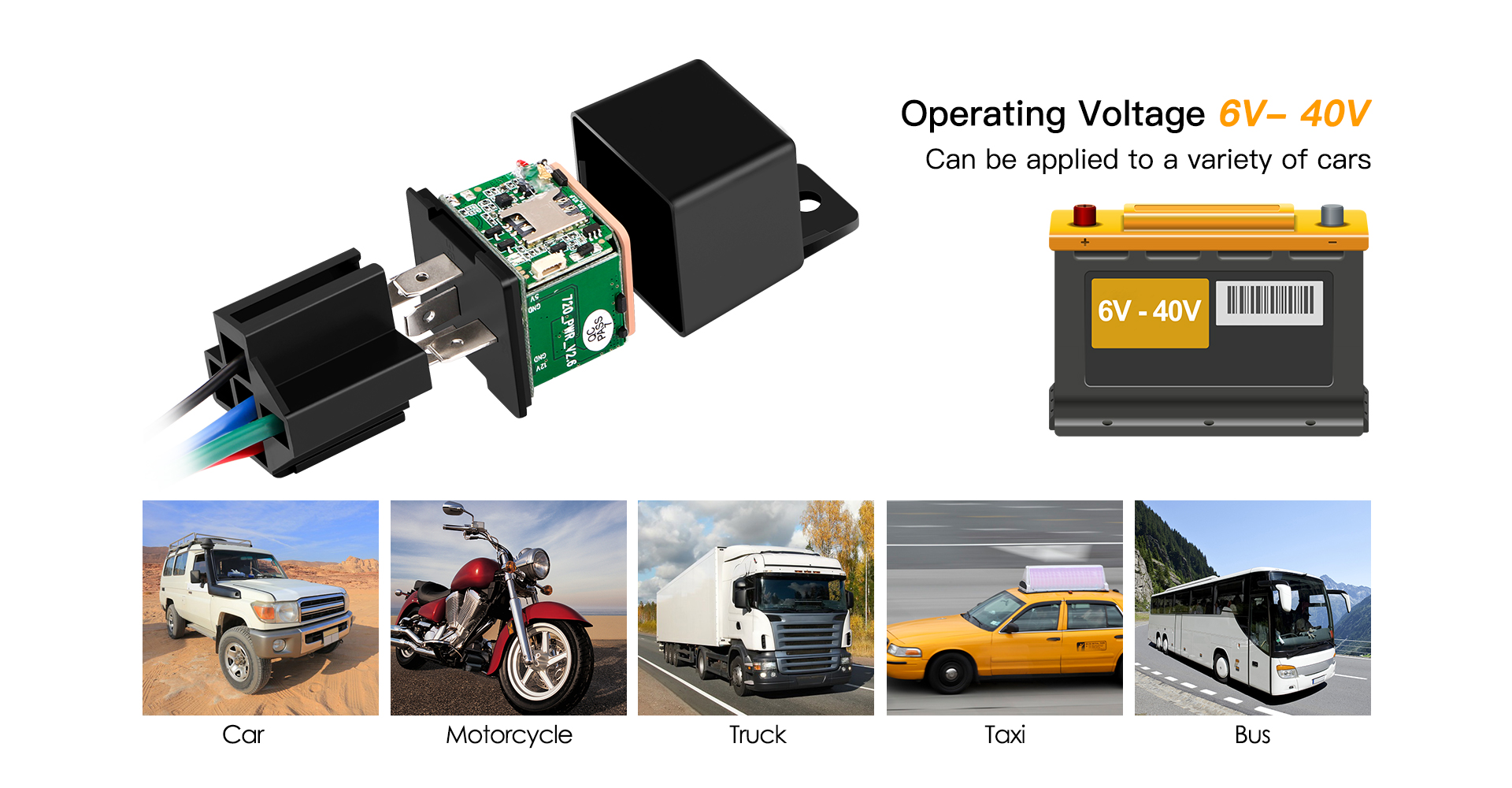

Working VoltageDC 9-90V
Working Current<30 mA
Sleep Current<15 uA
Battery Capacity3.7V 80mAh Lion Polymer battery
